Wheel, US Wheel, Rat Rod Series 63, Gloss Red, 17x8, 4.50 BS

ooooo

0 Reviews

Part# : CH34524

Sold As: Each

Ship Size:

Price Match Request

Found a price lower than $199.99?

Brand:

Paste the URL of The Lower-priced Product Page:

Competitor Part Number:

Price:

Shipping Cost:

First Name:

Last Name:

Email:

Price Match: Eligible

^$199.⁹⁹

List Price: $220.95

You Save $20.96

Bolt Pattern

Vehicle Specific View fitment for 38 models

Add To Wishlist

Details
Fitment
Reviews (0)

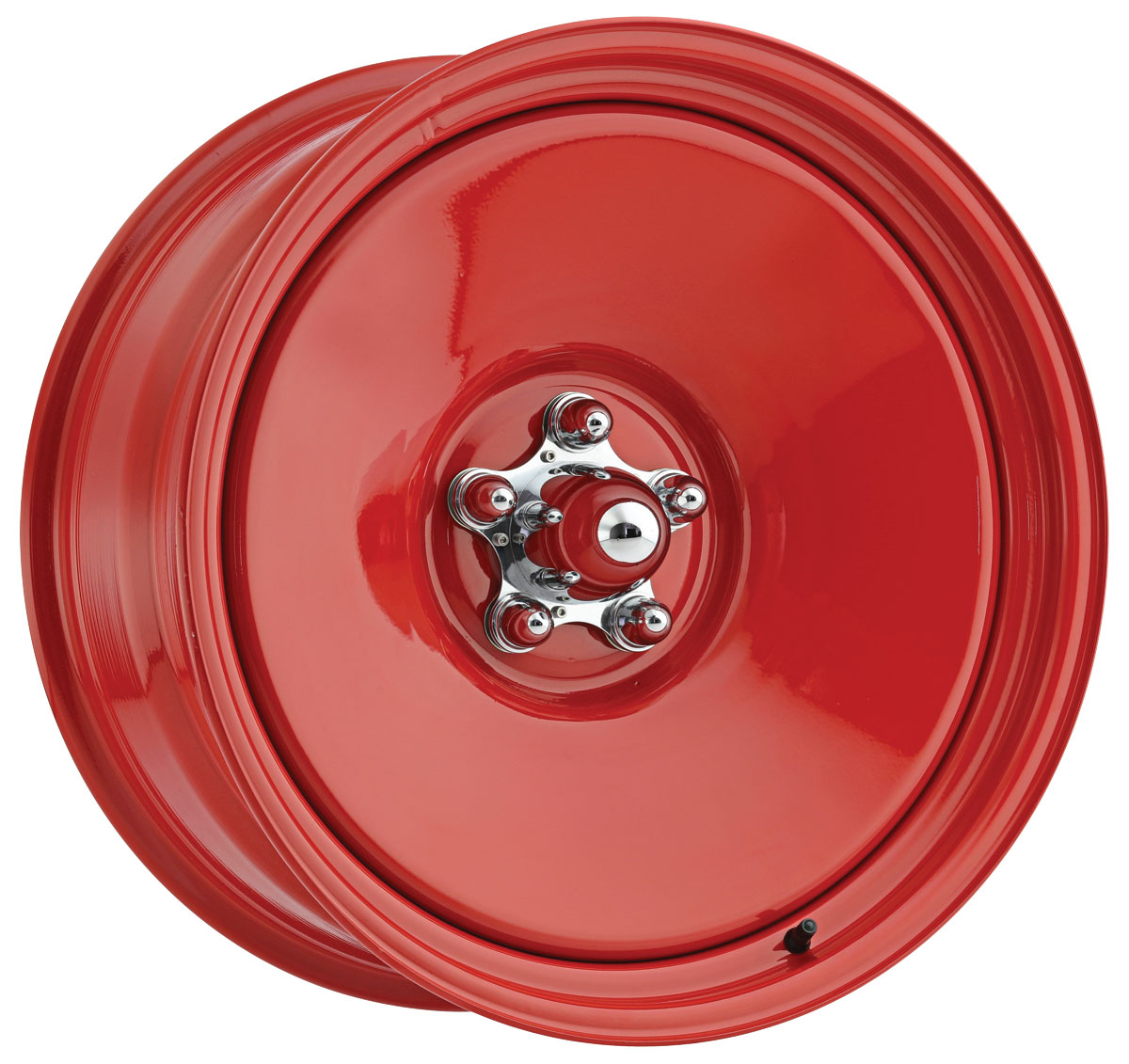

Series 63 Rat Rod Steel Wheel, 17x8, Gloss Red, 4.5-Inch Backspace by U.S. Wheel®

17x8 gloss red steel rat rod wheel with 4.5-inch backspacing.

The Series 63 Rat Rod wheel uses two-piece steel construction with a gloss red powder-coated finish. This 17x8 wheel has 4.5-inch backspacing. Each wheel has a single bolt pattern. Compatible Spyder or push-through bullet caps are available separately. For dog dish caps, order cap-retaining clips or a clip-cap option with the wheel. U.S. Wheel installs the clip hardware before shipment. Clip-style caps use a 10-1/8-inch opening. Center caps and lug nuts are sold separately. A test-fit before mounting tires helps confirm wheel clearance.

FEATURES • Wheel diameter and width: 17x8 inches • Series 63 two-piece steel Rat Rod design • Wheel finish: gloss red powder coat • Wheel backspacing: 4.5 inches • Separate single-pattern wheel configurations • Dog dish caps require optional retaining clips • Optional clip hardware installed before shipment • Clip-cap opening diameter: 10-1/8 inches • Center caps and lug nuts separate • Sold Per Each Wheel • 63-8834: single 5x4.75-inch bolt pattern; 4.5-inch backspacing; 0 mm offset; 83.82 mm hub bore • 63-8850: single 5x5-inch bolt pattern; 4.5-inch backspacing; 0 mm offset; 83.82 mm hub bore

Notes

This item is not eligible for any further discounts or promotional pricing.
This item is Oversize 3, and is excluded from free ground shipping.

We aim to provide accurate and complete product information. If you notice anything incorrect, missing, or unclear, please let us know.

Report Incorrect Product Information

WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model	Application Details
1982 Buick Grand National	17x8, 4.50 BS
1982 Buick Grand National	1984–1987 Buick Grand National	17x8, 4.50 BS
1978–1987 Buick Regal	1984–1987 Buick Grand National	17x8, 4.50 BS
1963–1976 Buick Riviera	17x8, 5x5.00 BP, 4.50 BS
1961–1972 Buick Skylark	17x8, 4.50 BS
1983–1986 Buick T-Type	17x8, 4.50 BS
1938–1993 Cadillac 60 Special	17x8, 5x5.00 BP, 4.50 BS
1965–1976 Cadillac Calais	17x8, 4.50 BS
1965–1976 Cadillac Calais	17x8, 5x5.00 BP, 4.50 BS
1959–1993 Cadillac DeVille	17x8, 5x5.00 BP, 4.50 BS
1953–1993 Cadillac Eldorado	17x8, 5x5.00 BP, 4.50 BS
1965–1993 Cadillac Fleetwood	17x8, 5x5.00 BP, 4.50 BS
1936–1951 Cadillac Series 60	17x8, 4.50 BS
1936–1951 Cadillac Series 60	17x8, 5x5.00 BP, 4.50 BS
1936–1951 Cadillac Series 61	17x8, 4.50 BS
1936–1951 Cadillac Series 61	17x8, 5x5.00 BP, 4.50 BS
1937–1976 Cadillac Series 62	17x8, 5x5.00 BP, 4.50 BS
1936–1951 Cadillac Series 63	17x8, 4.50 BS
1936–1951 Cadillac Series 63	17x8, 5x5.00 BP, 4.50 BS
1937–1938 Cadillac Series 65	17x8, 5x5.00 BP, 4.50 BS
1936–1942 Cadillac Series 67	17x8, 5x5.00 BP, 4.50 BS
1936–1937 Cadillac Series 70	17x8, 5x5.00 BP, 4.50 BS
1940 Cadillac Series 72	17x8, 5x5.00 BP, 4.50 BS
1936–1942 Cadillac Series 75	17x8, 5x5.00 BP, 4.50 BS
1936–1942 Cadillac Series 75	1946–1964 Cadillac Series 75	17x8, 5x5.00 BP, 4.50 BS
1976–1993 Cadillac Seville	1946–1964 Cadillac Series 75	17x8, 4.50 BS
1976–1993 Cadillac Seville	17x8, 5x5.00 BP, 4.50 BS
1971–1987 Chevrolet Blazer
1971–1987 Chevrolet C10
1964–1977 Chevrolet Chevelle	17x8, 5x4.75 BP, 4.50 BS
1960–1969 Chevrolet Corvair	17x8, 4.50 BS
1961–1965 Chevrolet Corvair 95 FC	17x8, 4.50 BS
1964–1987 Chevrolet El Camino	1964–1977: 17x8, 5x4.75 BP, 4.50 BS
1964–1987 Chevrolet El Camino	1978–1987: 17x8, 4.50 BS
1978–1983 Chevrolet Malibu	17x8, 4.50 BS
1970–1988 Chevrolet Monte Carlo	1970–1977: 17x8, 4.50 BS
	1970–1977: 17x8, 5x4.75 BP, 4.50 BS
	1978–1988: 17x8, 4.50 BS
1971–1987 Chevrolet Suburban
1971–1987 GMC C15/C1500
1971–1987 GMC Jimmy
1961–1988 Oldsmobile Cutlass	1961–1977: 17x8, 4.50 BS
1961–1988 Oldsmobile Cutlass	1978–1988: 17x8, 4.50 BS
1959–1976 Pontiac Bonneville	17x8, 5x5.00 BP, 4.50 BS
1959–1976 Pontiac Bonneville	1978–1986 Pontiac Bonneville	17x8, 4.50 BS
1959–1976 Pontiac Catalina	1978–1986 Pontiac Bonneville	17x8, 5x5.00 BP, 4.50 BS
1962–1987 Pontiac Grand Prix	1962–1977: 17x8, 5x5.00 BP, 4.50 BS
	1969–1977: 17x8, 4.50 BS
	1978–1987: 17x8, 4.50 BS
1964–1973 Pontiac GTO	17x8, 4.50 BS
1961–1973 Pontiac LeMans	17x8, 4.50 BS
1961–1970 Pontiac Tempest	17x8, 4.50 BS
