1978–81 Chevrolet G-Body “Aviator” Sweep-Dash Gauge Kit by New Vintage USA®
Programmable instruments mount behind the original sweep-dash bezel; oil/water senders included.

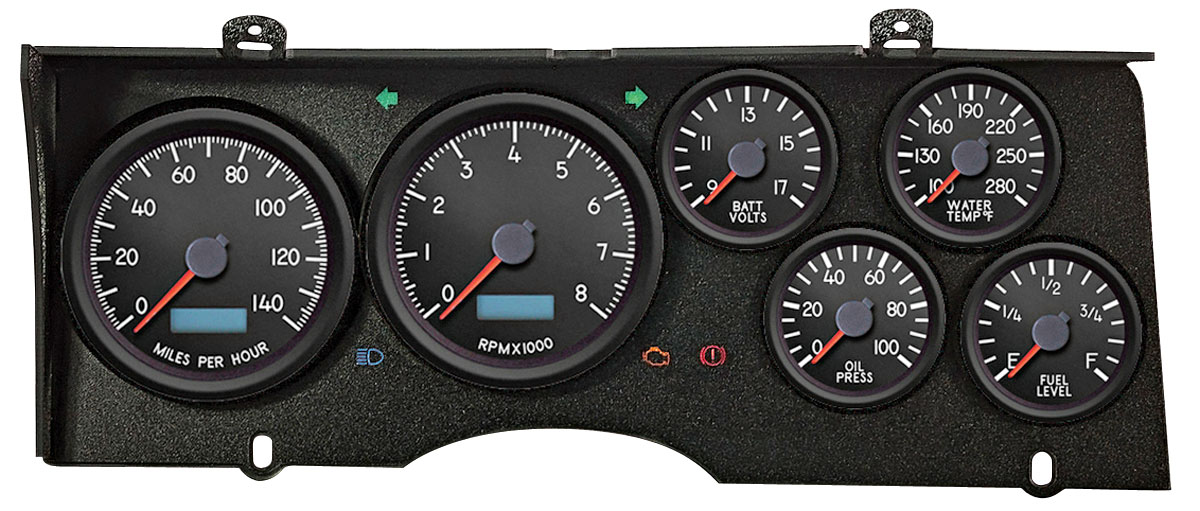

This New Vintage USA® “Aviator” instrument package is designed for the sweep-style dashboard in a 1978–81 Chevrolet El Camino, Malibu or Monte Carlo. The supplied mounting bracket installs the gauges in a factory or reproduction instrument carrier behind the original dash bezel. The package provides a programmable speedometer and tachometer, a full-size factory-match fuel gauge, and water-temperature, oil-pressure and voltage gauges. The Aviator instruments feature black bezels, flat-glass lenses and red LED backlighting. Shock-resistant cases and screw-on back clamps with vibration-damping O-rings protect the instruments; the instrument fronts are rated waterproof to 35 psi. The kit includes the mounting bracket, gauges, LED turn signals, oil-pressure and water-temperature sending units, bushings, gauge mounting hardware and instructions. The programmable speedometer can accept a compatible original GM vehicle-speed sensor or PCM speed signal. A separate speed sender may be required and is not included. The dash housing is not included. Backed by the manufacturer’s five-year limited warranty.
Features:
• 1978–81 Chevrolet El Camino, Malibu and Monte Carlo with the sweep-style dash
• Mounts in a factory or reproduction instrument carrier behind the original dash bezel
• Programmable speedometer and tachometer
• Full-size, factory-match 0–90-ohm fuel gauge
• Water-temperature, oil-pressure and voltage gauges
• Black bezels, flat-glass lenses and red LED backlighting
• Shock-resistant cases and screw-on back clamps with vibration-damping O-rings
• Instrument fronts rated waterproof to 35 psi
• LED turn signals and concealed high-beam, check-engine and brake indicators in the mounting bracket
• Mounting bracket, oil-pressure and water-temperature senders, bushings, gauge mounting hardware and instructions included
• Programmable speedometer accepts a compatible original GM vehicle-speed sensor or PCM speed signal
• Five-year limited manufacturer warranty
