Dash Cluster, VHX, 1968-69 Skylark

1968-69 Buick Skylark VHX Instrument System by Dakota Digital®

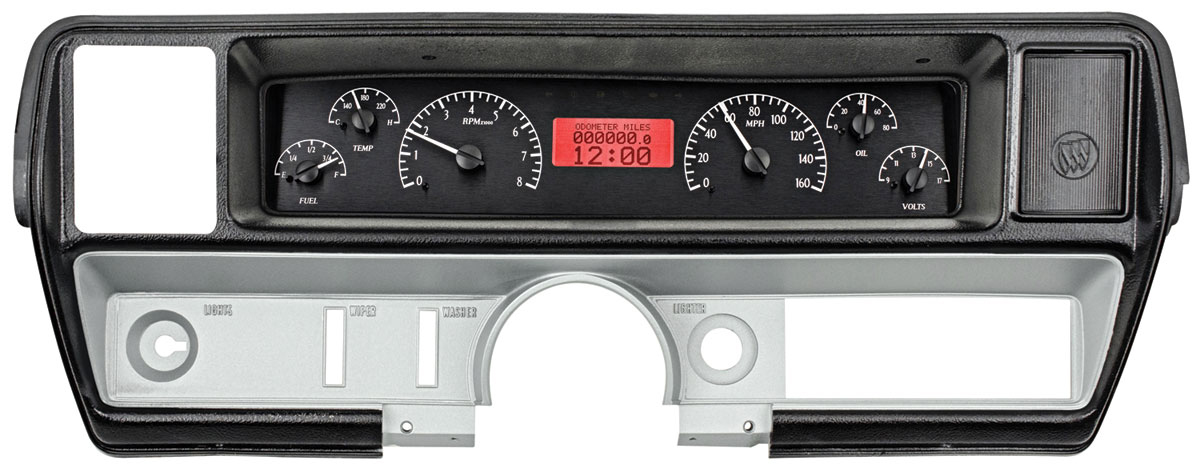

Direct-fit VHX system uses the factory gauge bezel with six analog gauges, LCD data and included senders.

Upgrade your 1968-69 Buick Skylark with Dakota Digital's VHX instrument system. This Dakota Digital VHX system combines six analog gauge sweeps with digital LCD message-center data. The analog gauges monitor speed, engine RPM, oil pressure, water temperature, fuel level and voltage using micro-controlled stepper motors, fully illuminated needles and LED-backlit faces. The LCD centers add a one-time-settable million-mile odometer, dual trip meters, 12-hour clock, digital gauge readouts, 0-60 mph and quarter-mile performance timers, trap-speed data, high-speed recall and high-RPM recall. The included solid-state sender package provides water-temperature, oil-pressure and cable-driven speed sensing, plus common NPT/metric adapter bushings, control box, switch assembly and harnessing. Pushbutton setup handles speedometer calibration, cylinder count and fuel-level calibration. Current black-plastic VHX control boxes also support Dakota Digital BIM expansion modules for additional data channels. The VHX-68B-SKY fits directly into the stock dash using the factory gauge bezel; a new bezel is not included. Analog ranges are 0-160 MPH speedometer, 0-8,000 RPM tachometer, 0-80 psi oil pressure, 100-260°F water temperature, fuel level and 9-17 VDC voltage. Black or Silver Alloy face options are available with multiple backlight colors. The LCD display automatically contrasts for daylight visibility and is LED backlit at night.

• Dakota fitment: 1968-69 Buick Skylark • 0-160 MPH speedometer and 0-8,000 RPM tachometer • LCD message centers with digital gauge and performance data • Includes water, oil and speed senders • Fits stock dash using factory gauge bezel • Factory bezel required; new bezel not included
