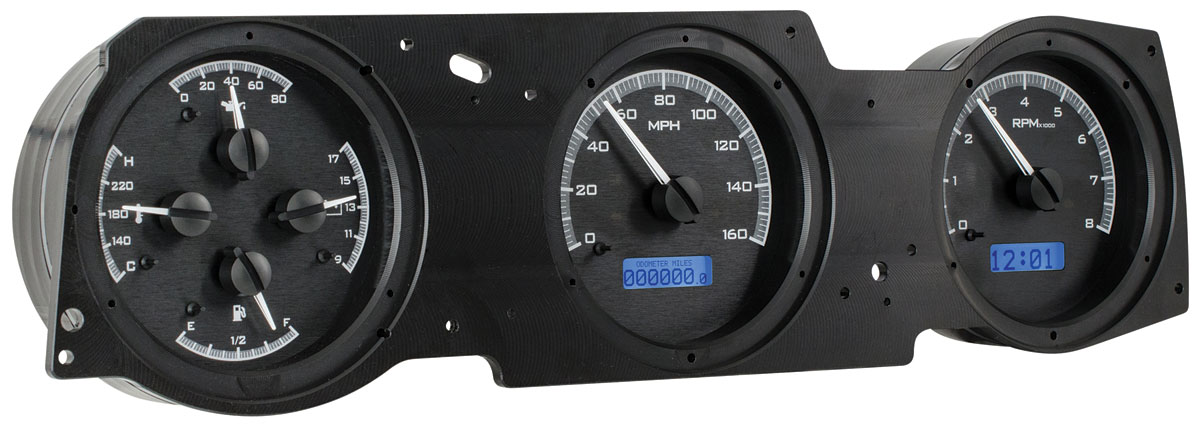

1966-67 Oldsmobile Cutlass VHX Instrument Cluster by Dakota Digital®
Direct-fit VHX gauges reuse the stock bezel; internal instrument-housing modification is required.
Upgrade your 1966-67 Oldsmobile Cutlass with a Dakota Digital VHX instrument system built for the original dash architecture. The analog ranges include 0-120 MPH speedometer, 0-8,000 RPM tachometer, 0-80 psi oil pressure, 100-260°F water temperature, E-to-F fuel level and 9-17 VDC voltage. The VHX system combines traditional analog presentation with modern electronic control. Six analog gauges monitor speed, engine RPM, oil pressure, water temperature, fuel level and voltage, while LCD message centers add digital gauge readouts plus odometer, dual trip-meter, clock and performance information including 0-60 mph, quarter-mile time, trap-speed, high-speed and high-RPM recall. Micro-controlled stepper motors drive the gauges, with fully illuminated needles, LED-backlit faces and solid-state senders. The included sender package supplies water-temperature, oil-pressure and cable-driven speed sensing, with threaded adapter bushings, control box, switch assembly and display-to-control-box cabling. Programmable calibration accommodates tire-size/rear-gear changes, cylinder count and fuel-sender setup. Built-in indicators support turn signals, high beam, check engine, parking brake and other available vehicle functions. Current VHX control boxes also support Dakota Digital BIM expansion modules for additional data channels. The system fits the stock instrument bezel, but Dakota Digital specifies modification to the inside of the original instrument housing as outlined in the mounting manual. The stock bezel is reused and is not included. Available configurations include Black or Silver Alloy faces with blue, red or white illumination.
• Dakota Digital fitment: 1966-67 Oldsmobile Cutlass
• 0-120 MPH speedometer; 0-8,000 RPM tachometer
• LCD message centers with odometer, trip and performance data
• Includes oil-pressure, water-temperature and cable-driven speed senders
• Black or Silver Alloy faces with blue, red or white illumination
• The system fits the stock instrument bezel, but Dakota Digital specifies modification to the inside of the original instrument housing as outlined in the mounting manual
