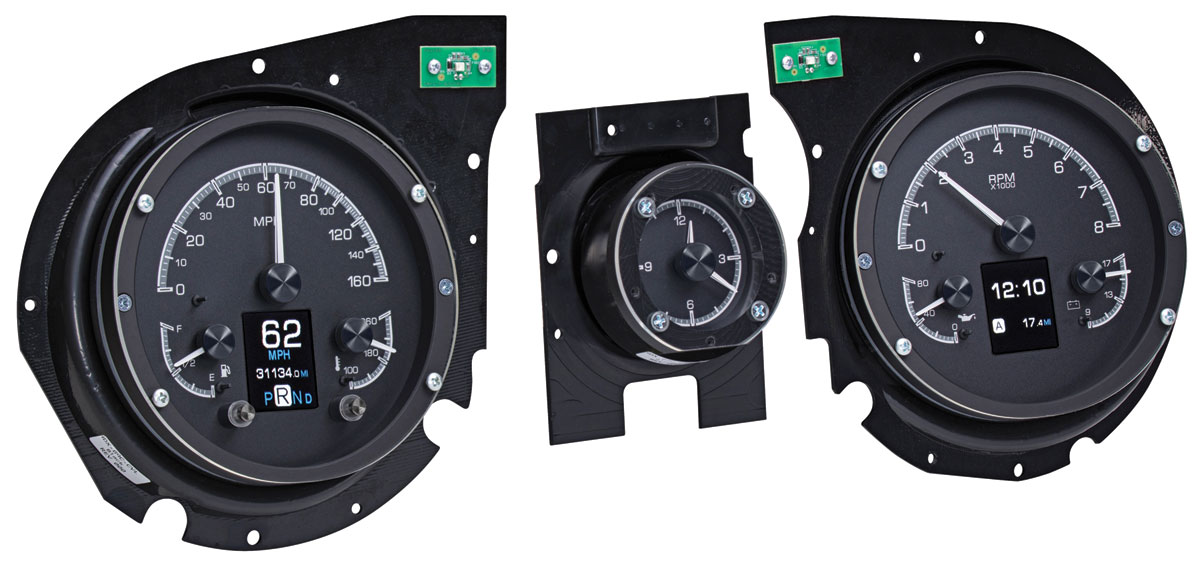

1969 Chevelle, Malibu & El Camino HDX System by Dakota Digital®
Six analog gauges and configurable TFT/LED lighting add modern data to the factory-style 1969 dash.
Upgrade your 1969 Chevrolet Chevelle, Malibu or El Camino with Dakota Digital’s HDX direct-fit instrument system. The HDX package combines six analog gauge sweeps with a full-color TFT message center and a central control box that organizes vehicle inputs and supplied solid-state senders. Gauge coverage includes a 0-160 MPH speedometer with split-scale resolution, 0-8,000 RPM tachometer, 0-80 psi oil pressure, 100-260°F water temperature, fuel level and 9-17 VDC voltage. More than 30 user-selectable lighting colors and preset themes allow independent control of gauge, needle/sweep and TFT illumination, with separate day/night brightness. Setup can be handled from the system controls and compatible Dakota Digital Bluetooth app. Dead-faced indicators cover turn signals, high beam, check engine, cruise control and parking brake, with user-definable indicators and settable gauge warnings. Oil-pressure, water-temperature and speed inputs are supported by the included sender package. Dakota Digital identifies this system for the 1969 Chevelle, Malibu and El Camino and uses the OEM/reproduction-style dash interface.
• Dakota Digital fitment: 1969 Chevelle, Malibu & El Camino
• 0-160 MPH speedometer and 0-8,000 RPM tachometer
• 0-80 psi oil and 100-260°F water-temperature gauges
• Full-color TFT message center
• More than 30 user-selectable lighting colors
• Includes control box and solid-state sender package
