Dash Cluster, HDX, Dakota Digital, 1968 Chevelle/El Camino

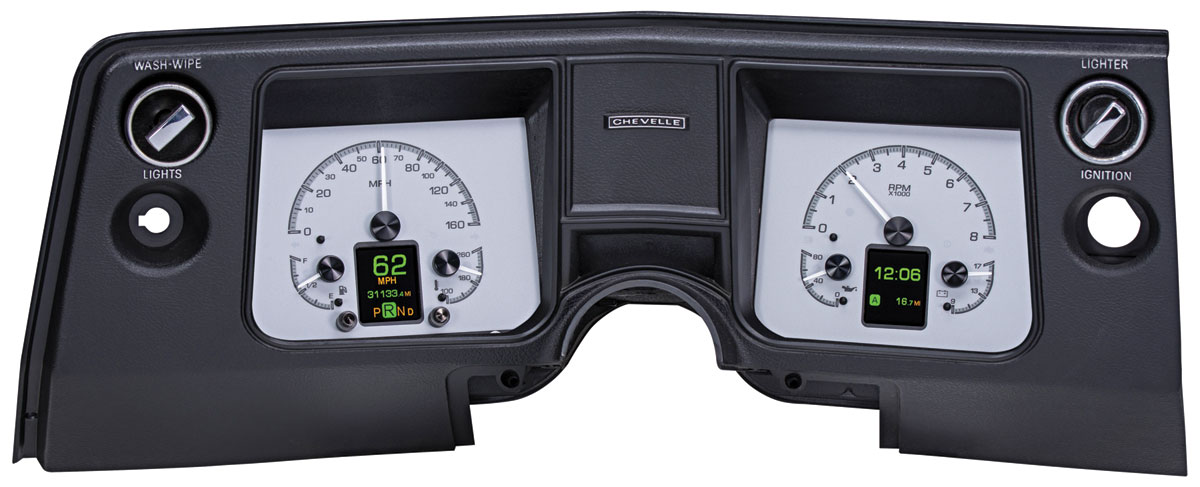

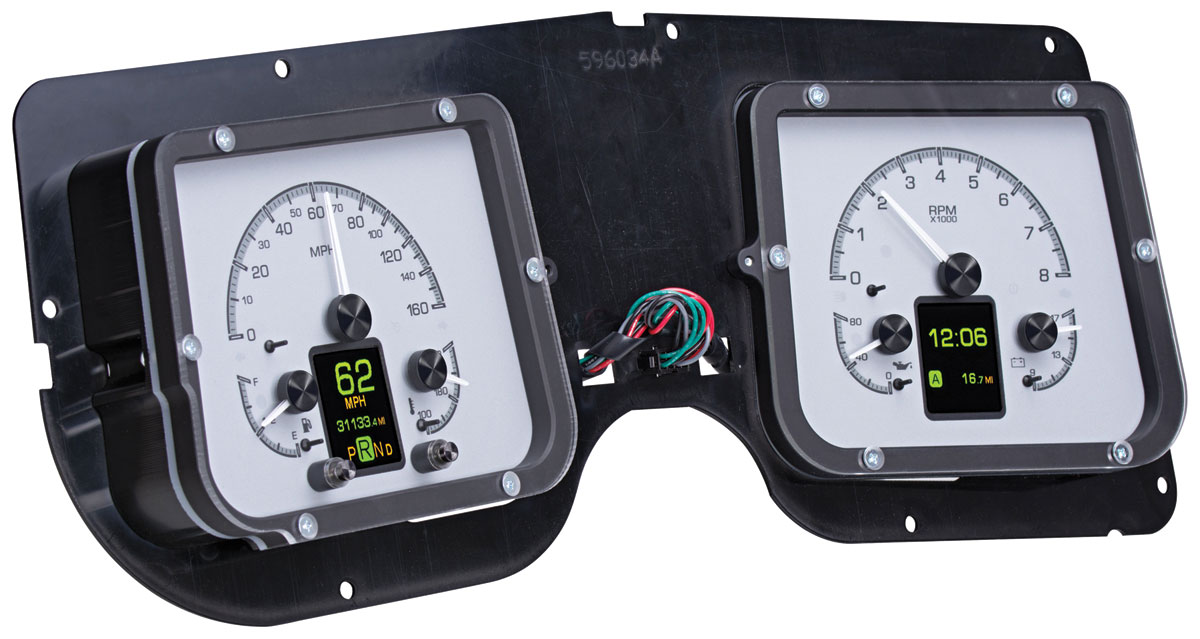

1968 Chevelle & El Camino HDX Instrument System by Dakota Digital®

Six analog gauges, full-color TFT information and app-adjustable lighting in a direct-fit HDX system.

Upgrade your 1968 Chevrolet Chevelle or El Camino with Dakota Digital’s HDX direct-fit instrument system. The HDX package combines six analog gauge sweeps with a full-color TFT message center and a central control box that organizes vehicle inputs and supplied solid-state senders. Gauge coverage includes a 0-160 MPH speedometer with split-scale resolution, 0-8,000 RPM tachometer, 0-80 psi oil pressure, 100-260°F water temperature, fuel level and 9-17 VDC voltage. More than 30 user-selectable lighting colors and preset themes allow independent control of gauge, needle/sweep and TFT illumination, with separate day/night brightness. Setup can be handled from the system controls and compatible Dakota Digital Bluetooth app. Dead-faced indicators cover turn signals, high beam, check engine, cruise control and parking brake, with user-definable indicators and settable gauge warnings. Oil-pressure, water-temperature and speed inputs are supported by the included sender package. Designed as a vehicle-specific direct-fit HDX system for the 1968 dash.

• Dakota Digital fitment: 1968 Chevelle & El Camino • Six analog HDX gauge functions • 0-160 MPH speedometer and 0-8,000 RPM tachometer • Full-color TFT message center and configurable lighting • Bluetooth-capable setup and calibration • Includes oil, water-temperature and speed-signal hardware
