Dash Cluster, HDX, Dakota Digital, 1966-67 Chevelle/El Camino

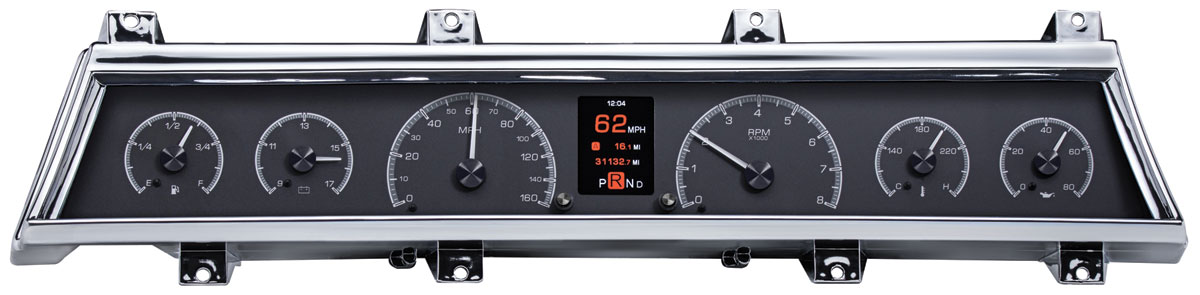

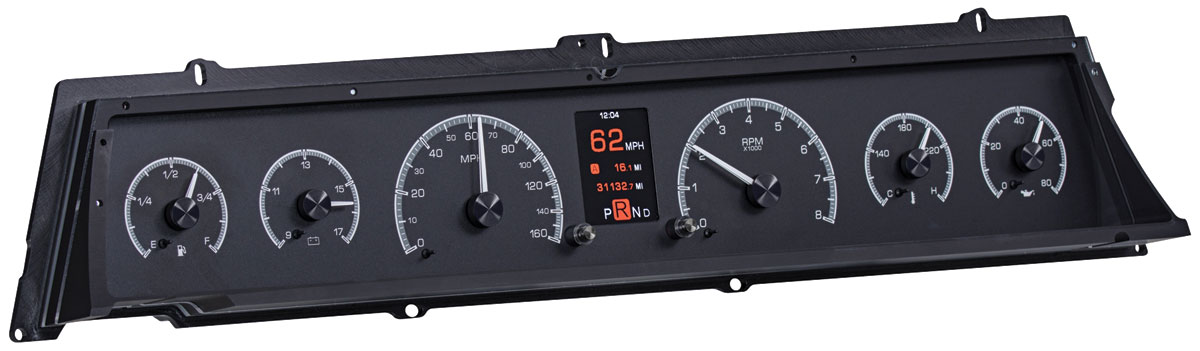

1966-67 Chevelle, Malibu & El Camino HDX System by Dakota Digital®

Six analog gauges, full-color TFT data and configurable lighting fit the original/reproduction bezel.

Upgrade your 1966-67 Chevrolet Chevelle, Malibu or El Camino with Dakota Digital’s HDX direct-fit instrument system. The HDX package combines six analog gauge sweeps with a full-color TFT message center and a central control box that organizes vehicle inputs and supplied solid-state senders. Gauge coverage includes a 0-160 MPH speedometer with split-scale resolution, 0-8,000 RPM tachometer, 0-80 psi oil pressure, 100-260°F water temperature, fuel level and 9-17 VDC voltage. More than 30 user-selectable lighting colors and preset themes allow independent control of gauge, needle/sweep and TFT illumination, with separate day/night brightness. Setup can be handled from the system controls and compatible Dakota Digital Bluetooth app. Dead-faced indicators cover turn signals, high beam, check engine, cruise control and parking brake, with user-definable indicators and settable gauge warnings. Oil-pressure, water-temperature and speed inputs are supported by the included sender package. The HDX-66C-CVL mounts to the original or reproduction bezel; Dakota’s mounting instructions call for removal of the original metal gauge housing while retaining the bezel.

• Dakota Digital fitment: 1966-67 Chevelle, Malibu & El Camino • 0-160 MPH speedometer and 0-8,000 RPM tachometer • 0-80 psi oil, 100-260°F water, fuel-level and 9-17 VDC gauges • Full-color TFT message center with configurable lighting • Central control box with solid-state sender package • Uses original or reproduction bezel
