Taylor

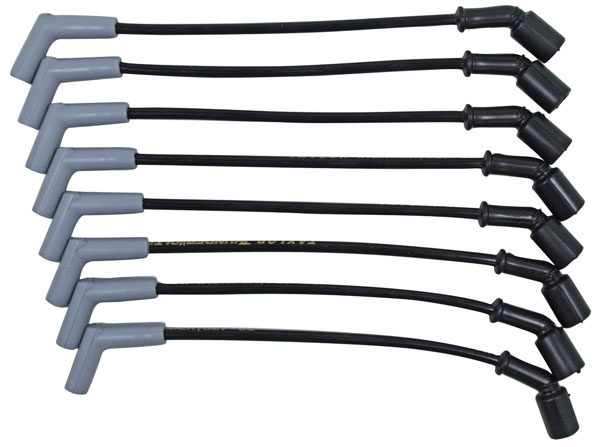

Spark Plug Wire Set, Taylor, ThunderVolt 8.2mm, Race Fit, 135° Boot, LS

Part# : CH34181
Mfg#: 86017
Sold As: Set
Ship Size: Standard
$94.99
List Price: $104.95
You Save $9.96

Color Variation

Due to variations in monitor settings, some colors on this page may appear slightly different from GM originals. In addition, due to color differences in the original GM dye lots, interior product colors may vary slightly.

Fits 1961–1988 Cutlass View fitment for 62 models
Add To Wishlist

GM LS ThunderVolt 8.2mm Spark Plug Wire Set (135°) by Taylor Cable®

40-ohm-per-foot suppression conductors and dual silicone insulation support spark delivery and routing.

Taylor Cable® ThunderVolt wires use a ferrite spiral-wound core with a copper/nickel alloy bonded by conductive acrylic. The low-resistance conductor supports ignition-current delivery, while RFI/EMI suppression helps reduce interference with electronic ignitions, onboard computers and audio equipment. Two-layer Zimplex silicone jacketing provides flexible heat protection. Silicone spark-plug boots and double spring-lock terminals provide positive contact. The engine-specific Race Fit plug leads are cut to length and booted for the routing configuration; check exhaust clearance before installation.

• GM LS-powered applications; see full fitment list below • Race Fit; 135° spark-plug boots; 14- or 16-inch length options • 8.2mm wire with ferrite spiral-wound suppression core • Copper/nickel alloy and conductive acrylic; resistance of 40 ohms/ft • Two-layer Zimplex silicone jacketing; heat protection to 600°F • RFI/EMI suppression for ignition electronics and audio equipment • Silicone spark-plug boots with double spring-lock terminals • Engine-specific Race Fit plug leads arrive cut to length and booted

Notes

  • This item is not eligible for any further discounts or promotional pricing.
4
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. Learn More
We aim to provide accurate and complete product information. If you notice anything incorrect, missing, or unclear, please let us know.
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model Application Details
1982 Buick Grand National 135° boot, LS
1984–1987 Buick Grand National 135° boot, LS
1976–1987 Buick Regal 135° boot, LS
1978–1987: 135° boot, LS
1963–1976 Buick Riviera 135° boot, LS
1961–1972 Buick Skylark 135° boot, LS
1983–1986 Buick T-Type 135° boot, LS
1938–1993 Cadillac 60 Special 135° boot, LS
2013–2019 Cadillac ATS 135° boot, LS
1965–1976 Cadillac Calais 135° boot, LS
2003–2019 Cadillac CTS 135° boot, LS
2004–2015: 135° boot, LS
1959–2005 Cadillac DeVille 135° boot, LS
1953–2002 Cadillac Eldorado 135° boot, LS
1999–2000 Cadillac Escalade 135° boot, LS
2002–2023 Cadillac Escalade 135° boot, LS
2002–2013 Cadillac Escalade EXT 135° boot, LS
1965–1996 Cadillac Fleetwood 135° boot, LS
1936–1951 Cadillac Series 60 135° boot, LS
1946–1964 Cadillac Series 60 Fleetwood
1936–1951 Cadillac Series 61 135° boot, LS
1937–1976 Cadillac Series 62 135° boot, LS
1936–1951 Cadillac Series 63 135° boot, LS
1937–1938 Cadillac Series 65 135° boot, LS
1936–1942 Cadillac Series 67 135° boot, LS
1936–1937 Cadillac Series 70 135° boot, LS
1940 Cadillac Series 72 135° boot, LS
1936–1942 Cadillac Series 75 135° boot, LS
1946–1964 Cadillac Series 75 135° boot, LS
1946–1964 Cadillac Series 75 Fleetwood
1976–2004 Cadillac Seville 135° boot, LS
2005–2011 Cadillac STS 135° boot, LS
2004–2009 Cadillac XLR 135° boot, LS
1947–1955 Chevrolet Advance Design
1969–1994 Chevrolet Blazer 135° boot, LS
1960–1987 Chevrolet C10 135° boot, LS
1960–1987 Chevrolet C20 135° boot, LS
1960–1987 Chevrolet C30 135° boot, LS
1964–1977 Chevrolet Chevelle 135° boot, LS
1960–1969 Chevrolet Corvair 135° boot, LS
1961–1965 Chevrolet Corvair 95 FC 135° boot, LS
1959–1960 Chevrolet El Camino 135° boot, LS
1964–1987 Chevrolet El Camino 135° boot, LS
1978–1987: 135° boot, LS
1960–1987 Chevrolet K10 135° boot, LS
1960–1987 Chevrolet K20 135° boot, LS
1977–1987 Chevrolet K30 135° boot, LS
1978–1983 Chevrolet Malibu 135° boot, LS
1997–2022 Chevrolet Malibu
1970–1988 Chevrolet Monte Carlo 1970–1977: 135° boot, LS
135° boot, LS
1978–1988: 135° boot, LS
1995–2007 Chevrolet Monte Carlo 135° boot, LS
1960–1991 Chevrolet Suburban 135° boot, LS
1955–1959 Chevrolet Task Force 135° boot, LS
1955–1959 GMC Blue Chip 135° boot, LS
1960–1987 GMC C15/C1500 135° boot, LS
1960–1987 GMC C25/C2500 135° boot, LS
1960–1987 GMC C35/C3500 135° boot, LS
1978–1987 GMC Caballero 135° boot, LS
1970–1991 GMC Jimmy 135° boot, LS
1960–1987 GMC K15/K1500 135° boot, LS
1960–1987 GMC K25/K2500 135° boot, LS
1977–1987 GMC K35/K3500 135° boot, LS
1947–1955 GMC New Design 135° boot, LS
1971–1977 GMC Sprint 135° boot, LS
1960–1991 GMC Suburban
1961–1988 Oldsmobile Cutlass 1961–1977: 135° boot, LS
135° boot, LS
1978–1988: 135° boot, LS
1958–1986 Pontiac Bonneville 135° boot, LS
1959–1976: 135° boot, LS
1978–1986: 135° boot, LS
1959–1977 Pontiac Catalina 1959–1976: 135° boot, LS
135° boot, LS
1962–1987 Pontiac Grand Prix 1962–1976: 135° boot, LS
135° boot, LS
1978–1987: 135° boot, LS
1964–1973 Pontiac GTO 135° boot, LS
1961–1981 Pontiac LeMans 1961–1973: 135° boot, LS
135° boot, LS
1961–1970 Pontiac Tempest 135° boot, LS
