Distributor, 1964-77 Pontiac, Flame-Thrower HEI, Pertronix, Red

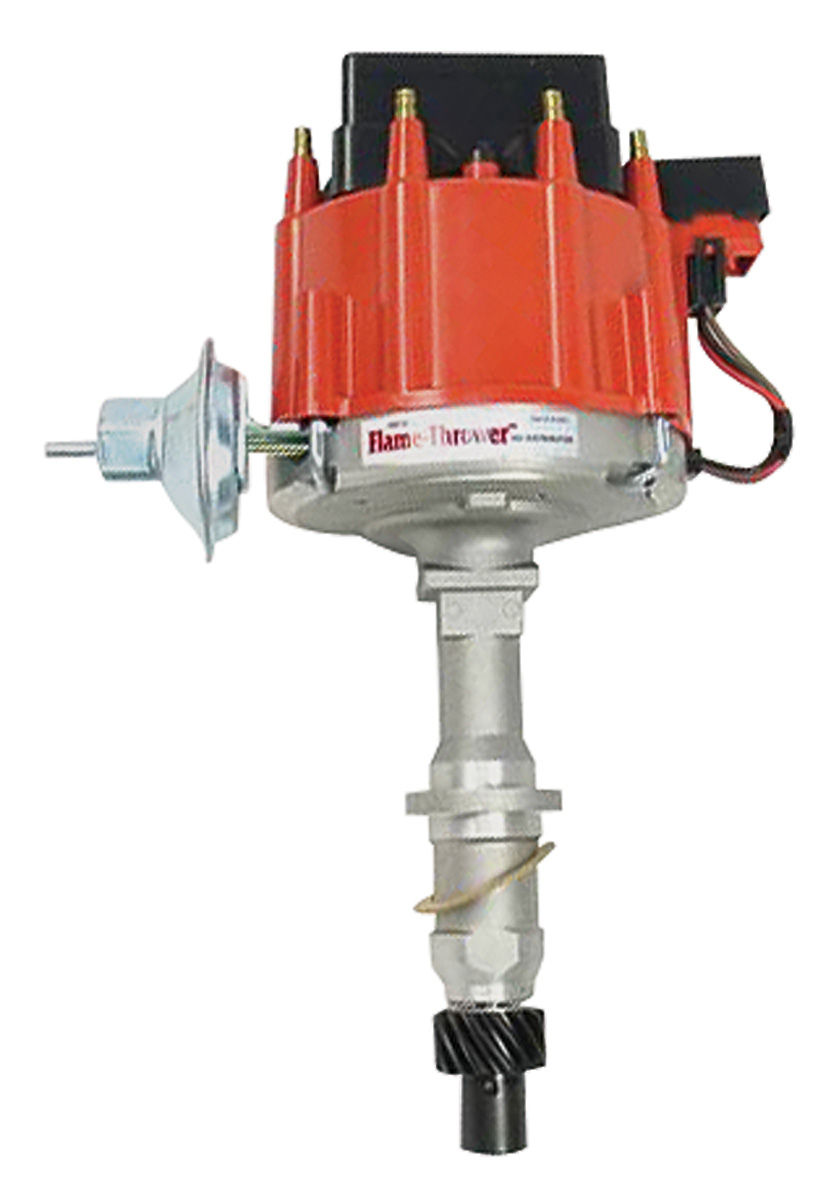

Pontiac V8 Flame-Thrower HEI Distributor (Red, Cast) by PerTronix®

An integrated coil/module, brass-terminal cap and adjustable advance provide complete HEI ignition.

This PerTronix® Flame-Thrower HEI distributor combines its ignition coil and module in an alloy housing. The centerless-ground shaft and aligned, honed bushings support stable rotation, while a high-dielectric cap with brass terminals and a balanced rotor provide the high-voltage connections. Mechanical and vacuum advance can be tailored to the engine, and additional advance springs are supplied for curve adjustment. The manufacturer specifies Street/Strip HEI operation beyond 7,500 rpm. The cast-finish housing is supplied with a red cap. It does not require a separate ignition-control box.

• Pontiac 326/350/389/400/421/428/455 V8 (See full fitment list below) • Red cap with male HEI terminals; cast-finish housing • Integrated ignition coil and Street/Strip HEI module • Centerless-ground shaft with aligned, honed support bushings • High-dielectric cap with brass terminals; balanced rotor • Mechanical and vacuum advance; two additional spring sets for curve adjustment • Manufacturer specifies operation beyond 7,500 rpm • No external ignition-control box required
