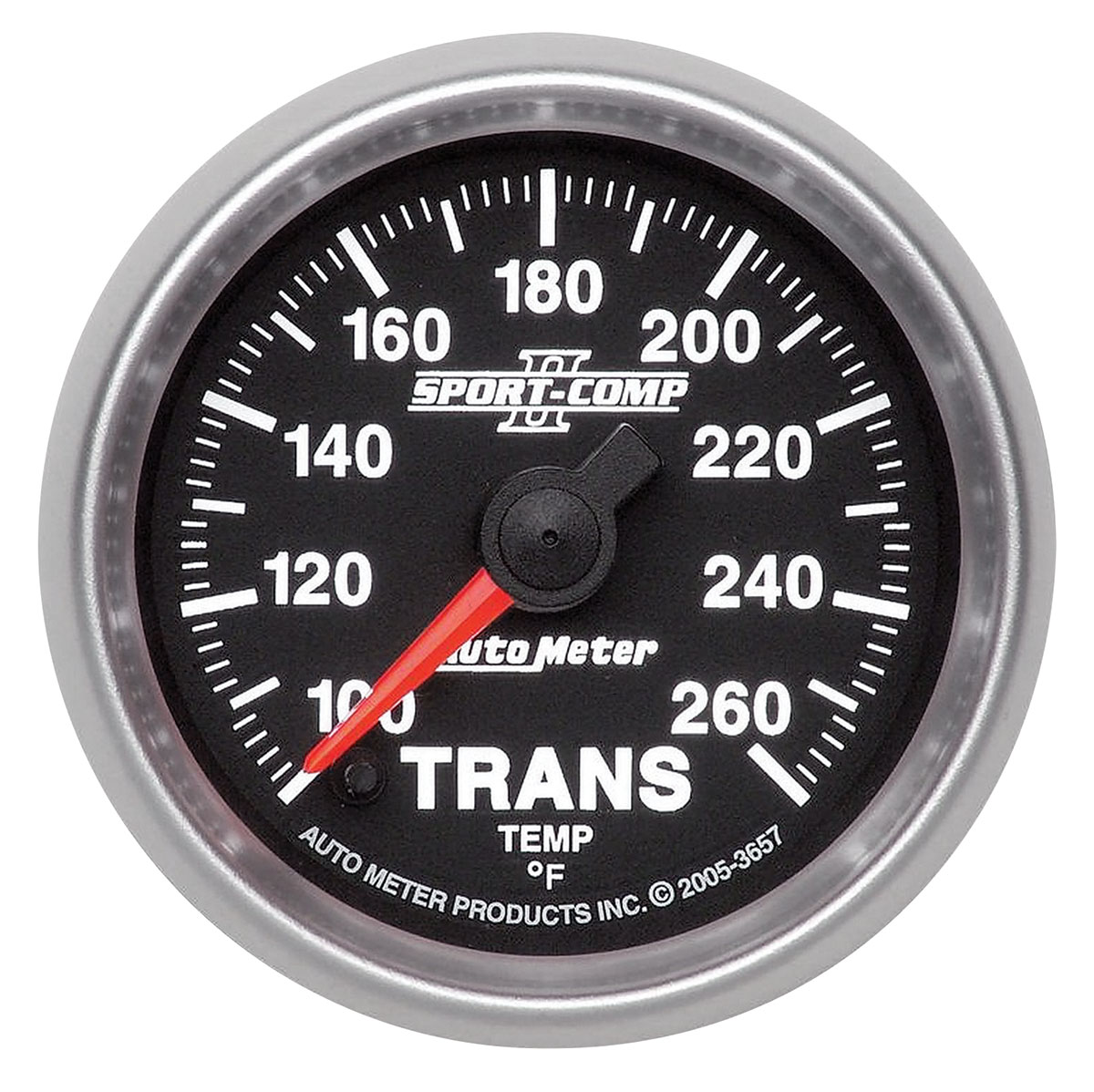

2-1/16-Inch Stepper-Motor Transmission Temperature Gauge (100-260°F) by AutoMeter®
Electrical sender and plug-in harness monitor transmission temperature without a capillary tube.
This AutoMeter® 2-1/16-inch transmission-temperature gauge displays 100-260°F using a digital stepper motor and an analog pointer. A startup calibration sequence positions the movement before use. The included 1/8-inch NPT temperature sender transmits an electrical signal through a plug-in harness, keeping the transmission fluid outside the cabin and avoiding a capillary-tube run to the dash. The kit includes 3/8- and 1/2-inch NPT adapters, mounting hardware and instructions. A compatible cooler-line manifold provides an alternative sender location when a suitable transmission port is not available. Select the gauge series to match the other instruments; illumination and face finish follow that choice.
• 2-1/16-inch gauge; 100-260°F
• Digital stepper-motor movement with startup calibration
• 1/8-inch NPT temperature sender included
• 3/8- and 1/2-inch NPT adapters included
• Plug-in sender harness, mounting hardware and instructions
• No fluid line or capillary tube inside the cabin
• Optional cooler-line manifold for sender installation
