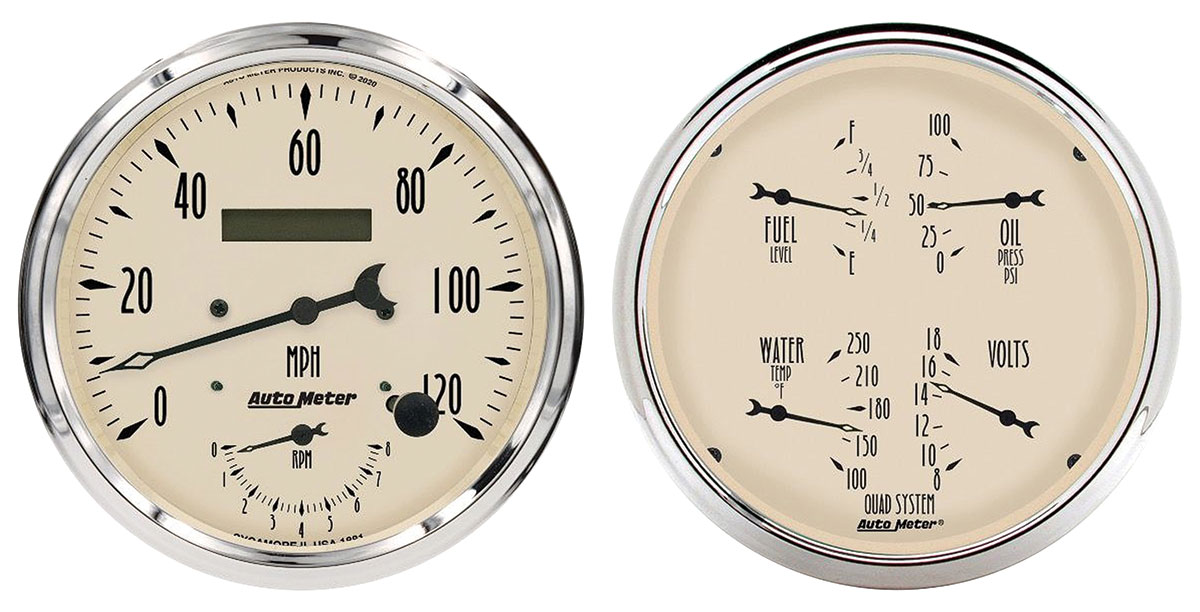

5-Inch Speedometer/Tachometer & Quad Gauge Set (120 MPH, 8,000 RPM) by AutoMeter®
Six readings in two 5-inch housings save dash space without sacrificing individual pointers.
This AutoMeter® combination provides six instrument functions in two 5-inch housings. One combines a 120-MPH speedometer and 8,000-RPM tachometer; the quad gauge monitors fuel level, oil pressure, coolant temperature and voltage. Individual air-core movements keep each reading distinct. The electronic speedometer has an LCD odometer and push-button calibration over a measured two-mile drive. The tachometer accepts 0.5-6 ignition pulses per revolution. Included are a 240-ohm-empty/33-ohm-full fuel sender, oil-pressure and temperature senders, a GM-style 7/8-18 speed sender, NPT adapters, mounting hardware and instructions. Illumination and dial styling follow the selected series.
• Two 5-inch housings display six instrument functions
• Speedometer: 0-120 MPH; tachometer: 0-8,000 RPM
• Quad gauge: fuel, oil pressure, water temperature and voltage
• LCD odometer with two-mile push-button speed calibration
• Tachometer input: 0.5-6 pulses per revolution
• 240-ohm-empty/33-ohm-full fuel sender included
• Oil-pressure, temperature and GM-style 7/8-18 speed senders included
• 1/4-, 3/8- and 1/2-inch NPT adapters included
