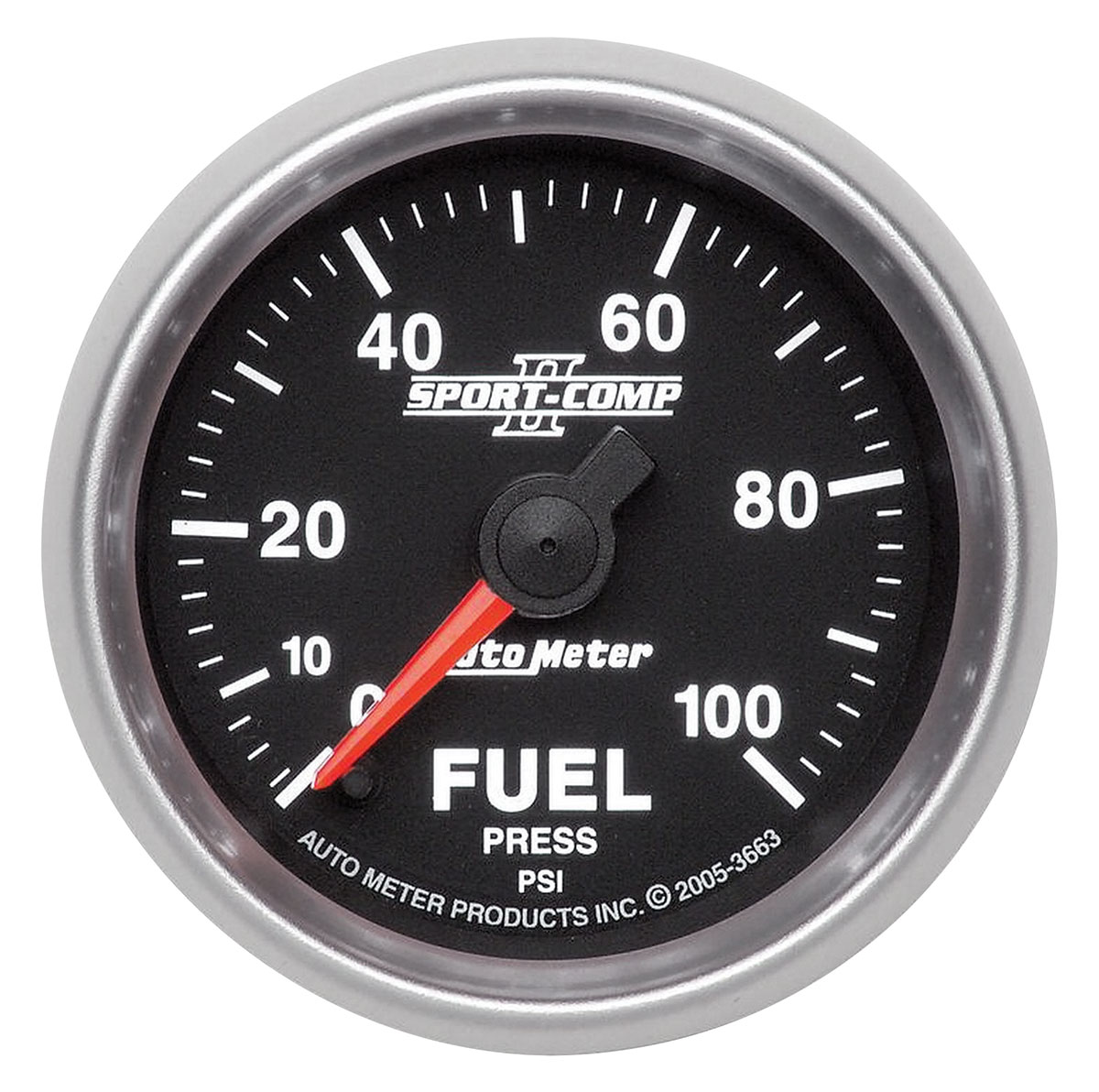

2-1/16-Inch Stepper-Motor Fuel Pressure Gauge (0-100 PSI) by AutoMeter®
Remote pressure sender keeps fuel outside the cabin; the stepper motor calibrates at startup.
This AutoMeter® 2-1/16-inch fuel-pressure gauge uses a digital stepper motor to display 0-100 PSI with an analog pointer. A solid-state stainless steel pressure sender mounts in the fuel system, keeping fuel outside the passenger compartment while the supplied harness carries the signal to the gauge. The movement performs a calibration sequence at power-up. A 0.5-4.5-volt output supports compatible data-logging equipment, allowing fuel-pressure information to be recorded as well as viewed. The kit includes the 1/8-inch NPT sender, wiring harness, mounting hardware and instructions. It is compatible with 12- and 16-volt systems. Lighting and face treatment follow the selected series; incandescent versions include a bulb/socket and red and green covers.
• 2-1/16-inch gauge; 0-100 PSI
• Analog pointer driven by a digital stepper motor
• Power-up calibration sequence
• Remote stainless steel 1/8-inch NPT pressure sender included
• 0.5-4.5V output for compatible data acquisition
• Wiring harness, mounting hardware and instructions included
• 12- and 16-volt compatible
• Lighting and bulb accessories depend on selected series
Notes
- Part# C210377, "Extended Mounting Base", is for mounting "Sport-Comp", "Phantom", "Ultra-Lite" and "Pro-Comp" tachs and gauges in cups on the dashboard.
- This item is not eligible for any further discounts or promotional pricing.
