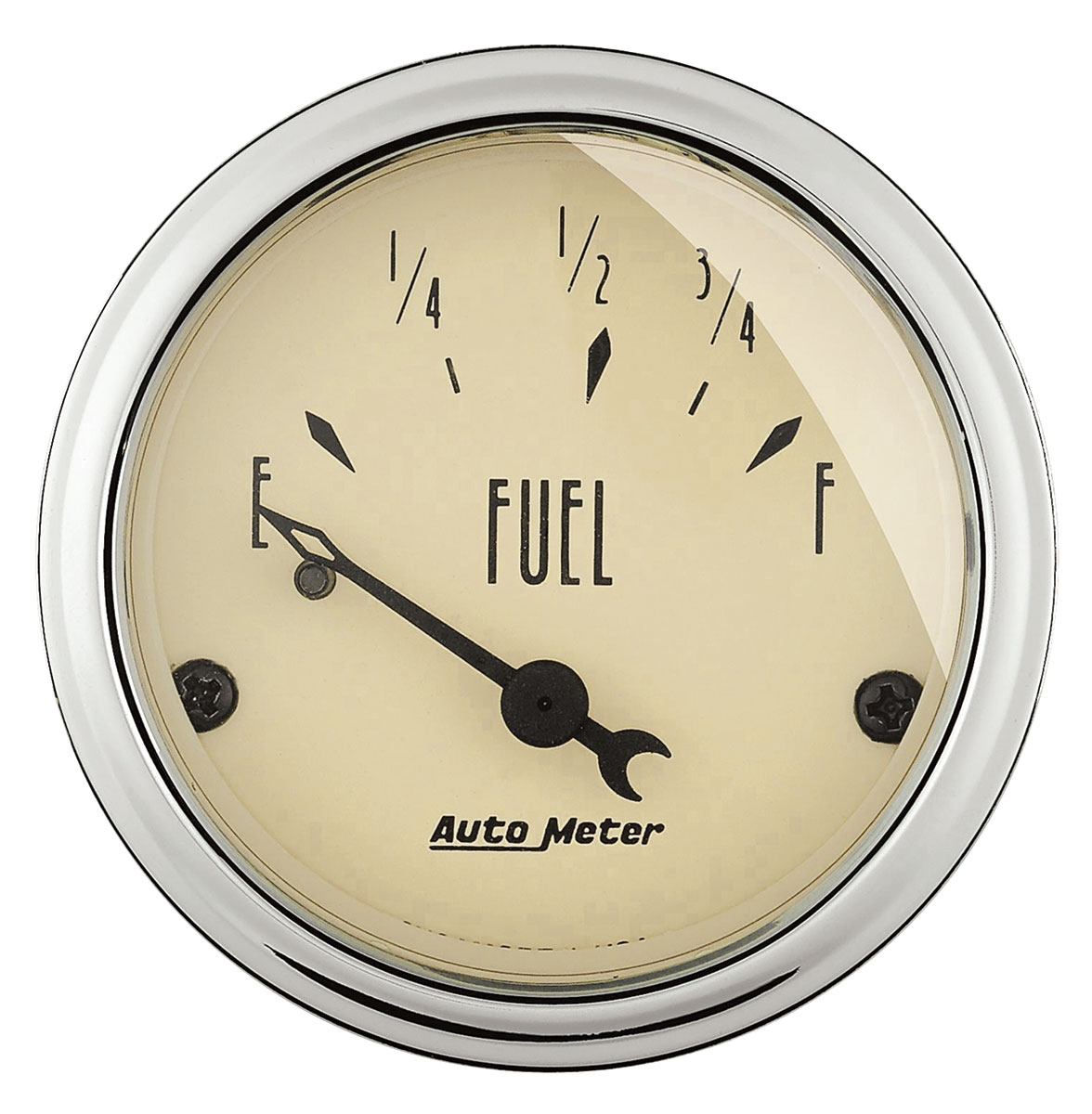

2-1/16-Inch Fuel Level Gauge (73 Ohm Empty/10 Ohm Full) by AutoMeter®
Damped air-core movement steadies the fuel-level reading as fuel moves in the tank.
This 2-1/16-inch AutoMeter® fuel gauge uses an air-core electric movement with needle damping to reduce fluctuations caused by fuel slosh. The gauge is calibrated for the non-linear 73-ohm-empty/10-ohm-full sender curve used by many early Ford and Chrysler applications. It is not interchangeable with a 0-90-ohm GM gauge. It operates with 12- or 16-volt electrical systems. Lighting and dial appearance follow the selected gauge series. Incandescent versions include a bulb/socket assembly and red and green bulb covers. Mounting hardware and installation instructions are supplied. Match the gauge to the tank sender before installation; this is a fuel-level gauge, not a replacement sending unit.
• 2-1/16-inch fuel-level gauge
• Sender calibration: 73 ohms empty; 10 ohms full
• Air-core electric movement with fuel-slosh damping
• 12- and 16-volt compatible
• Gauge lighting depends on selected series
• Bulb/socket and red/green covers with incandescent versions
• Mounting hardware and instructions included
• Non-linear 73-10-ohm sender calibration
Notes
- Part# C210377, "Extended Mounting Base", is for mounting "Sport-Comp", "Phantom", "Ultra-Lite" and "Pro-Comp" tachs and gauges in cups on the dashboard.
- This item is not eligible for any further discounts or promotional pricing.
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
