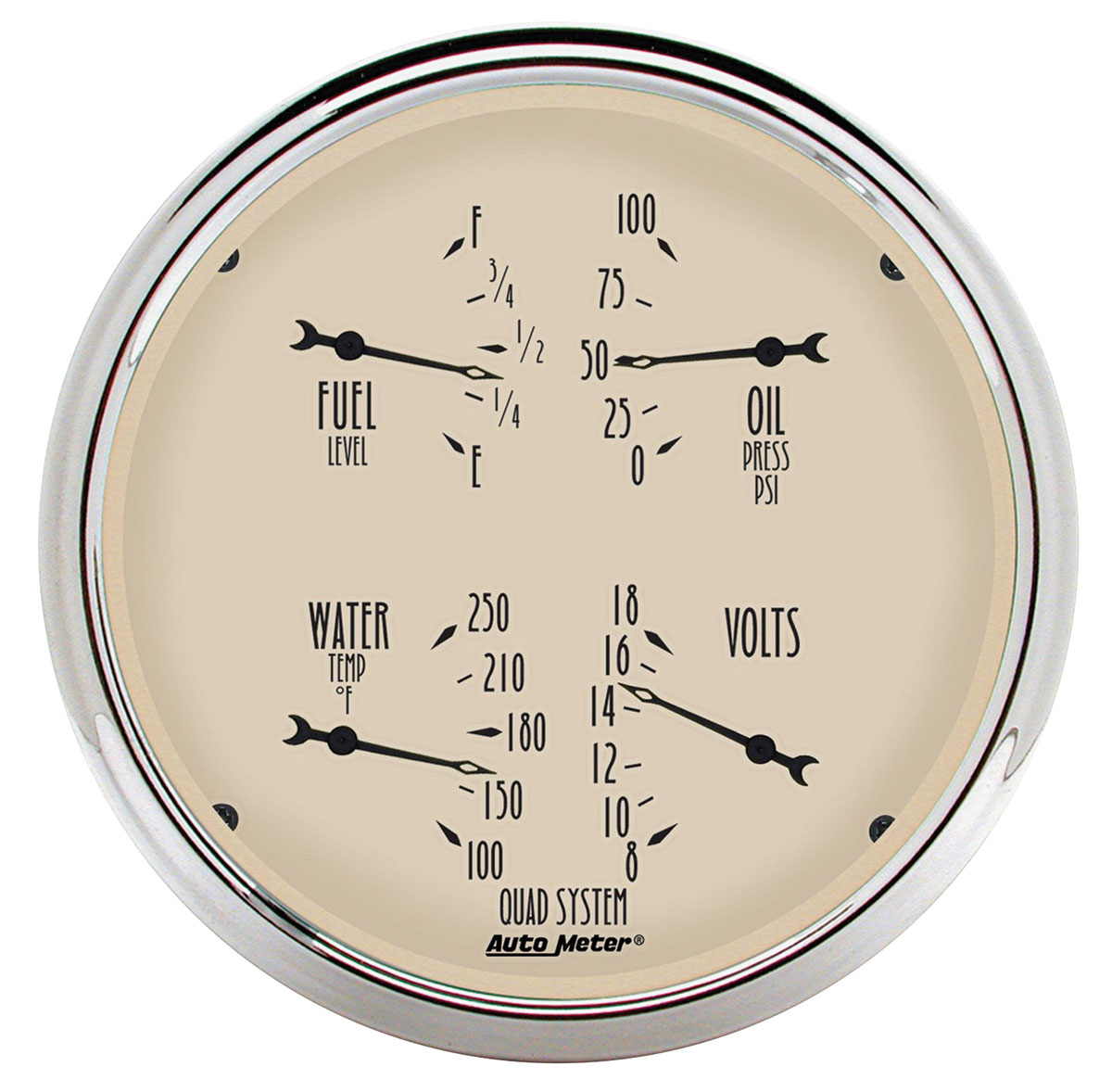

5-Inch Quad Fuel/Oil/Water/Volt Gauge (240-33 Ohm Fuel) by AutoMeter®
Four independent air-core instruments share one 5-inch housing to save dash space.
This AutoMeter® 5-inch Quad Gauge combines fuel level, oil pressure, coolant temperature and voltage in one housing, with a separate air-core movement for each reading. The oil-pressure scale reads 0-100 PSI, coolant temperature 100-250°F and voltage 8-18V. Fuel level is calibrated for a 240-ohm-empty/33-ohm-full sender; it is not a 0-90-ohm GM fuel gauge. The package includes 1/8-inch NPT oil-pressure and temperature sending units, a 1/4-inch NPT pressure adapter, 3/8- and 1/2-inch NPT temperature adapters, mounting hardware and instructions. A compatible tank sender is required; the instrument works with AutoMeter®'s 3262 fuel sender. The gauge operates with 12- and 16-volt negative-ground systems. Lighting follows the selected series; incandescent versions include bulb/socket assemblies and red and green covers.
• 5-inch housing with four independent air-core movements
• Fuel level: 240 ohms empty; 33 ohms full
• Oil pressure: 0-100 PSI
• Coolant temperature: 100-250°F
• Voltmeter: 8-18V; negative ground
• 1/8-inch NPT oil-pressure and temperature senders included
• 1/4-inch pressure adapter; 3/8- and 1/2-inch temperature adapters
• Compatible 240-33-ohm tank sender required
• 12- and 16-volt compatible
• Mounting hardware and instructions included
