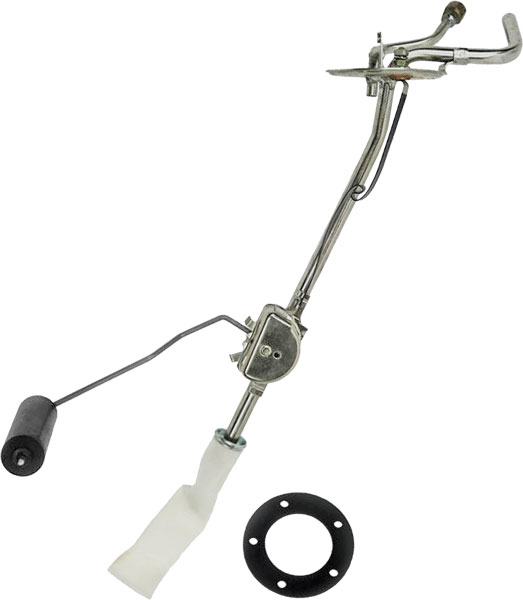

Sending Unit, Fuel Tank, 1961-64 Bon/Cat/GP exc. Wagon, Bolt-In Style w/Return

1961–64 Pontiac Bonneville, Catalina & Grand Prix (exc. Wagon) Fuel Tank Sending Unit (With Return Line)

Reproduction fuel sender with original-style tank mounting and fuel-line connections.

This reproduction fuel-tank sending unit replaces the original sender for 1961–64 Pontiac Bonneville, Catalina & Grand Prix (exc. Wagon). Its fuel-level float mechanism reports tank level to the vehicle gauge while the bolt-in mounting, two fuel-line connections provide the fuel supply arrangement. Two-line unit for original return-system vehicles. Verify the sending-unit resistance and fuel-line diameter against the vehicle’s original equipment before ordering, because different years and return-line systems can require different senders.

• 1961–64 Pontiac Bonneville, Catalina & Grand Prix (exc. Wagon) • Original with return line configuration • Bolt-in mounting, two fuel-line connections • Fuel-level float and gauge-sender function • Sender resistance: 0–30 ohms • Selection depends on outlet count and line diameter
