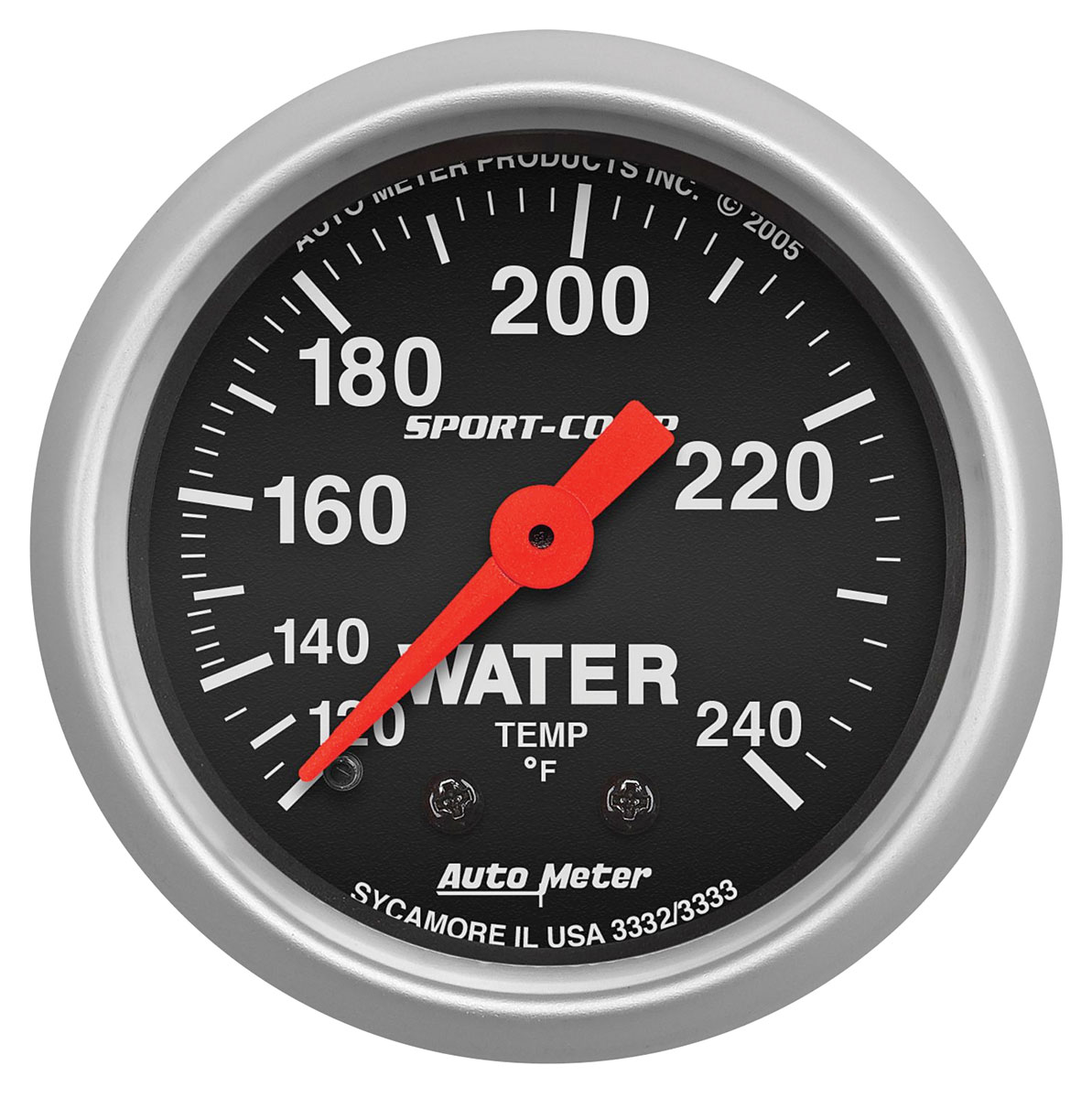

2-1/16-Inch Mechanical Water Temperature Gauge (120-240°F, 12-Ft.) by AutoMeter®
12-foot capillary tube and a mechanical Bourdon movement measure coolant temperature.
This 2-1/16-inch water-temperature gauge by AutoMeter® uses a mechanical Bourdon-tube movement to display 120-240°F. The supplied 12-foot capillary tube carries the temperature reading from the sensing bulb to the instrument, without an electrical temperature sender. A 1/2-inch NPT adapter is included for the sensing-bulb connection. The gauge reading requires no electrical power; only the dial illumination is powered. A bulb/socket assembly, red and green bulb covers, mounting hardware and instructions are included. The six-foot version is SKU # CH25728.
• 2-1/16-inch mechanical water-temperature gauge
• 120-240°F temperature scale
• 12-foot capillary tube included
• Mechanical Bourdon-tube movement
• 1/2-inch NPT adapter included
• No electrical sender or power required for temperature reading
• Bulb/socket, red and green covers, mounting hardware and instructions
• Six-foot version: SKU # CH25728
Notes
- Part# CH25728 includes a 6-foot capillary tubing.
- This item is not eligible for any further discounts or promotional pricing.
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
