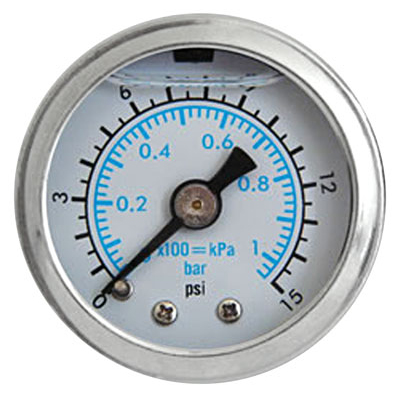

Gauge, Pressure, 1.5" White PSI/kPa/Bar Dial, Black Pntr, Chrome Case & Bezel

1-1/2-Inch White Multi-Scale Liquid-Filled Pressure Gauge by Marshall Instruments™

Silicone filling steadies the pointer; a 1/8-inch NPT rear port provides direct pressure connection.

This 1-1/2-inch Marshall Instruments™ mechanical pressure gauge provides a direct reading at the measurement point. Silicone filling damps vibration and pointer movement, with a stainless steel case, brass internals and a clear acrylic lens. The case measures 1.6 inches in diameter and the bezel measures 1.75 inches. A 1/8-inch NPT center-back connection threads into a compatible pressure port. The white multi-scale dial has a black pointer and a chrome-finished case and bezel. Choose the pressure range for the system being measured: 0-15, 0-30, 0-60, 0-100, 0-160, 0-200, 0-300, 0-600, 0-1,000, 0-1,500, 0-2,000, 0-3,000, 0-5,000 PSI. The dial carries PSI, kPa and bar scales. This is a mechanical instrument; it does not require an electrical pressure sender.

• 1-1/2-inch direct-mount mechanical pressure gauge • White Multi-Scale dial with black pointer • Available ranges: 0-15, 0-30, 0-60, 0-100, 0-160, 0-200, 0-300, 0-600, 0-1,000, 0-1,500, 0-2,000, 0-3,000, 0-5,000 PSI • 1/8-inch NPT center-back connection • Silicone filled for vibration damping • Stainless steel case; brass internals and acrylic lens • 1.6-inch case; 1.75-inch bezel • Chrome-finished case and bezel • PSI, kPa and bar dial markings
