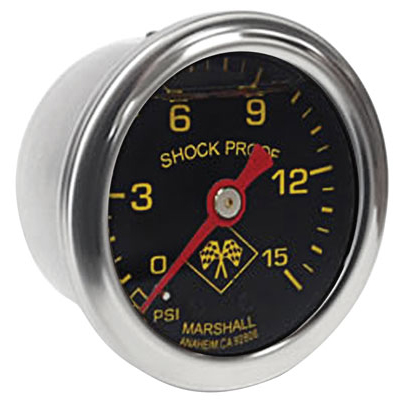

1-1/2-Inch Midnight Silver Liquid-Filled Pressure Gauge by Marshall Instruments™
Silicone filling steadies the pointer; a 1/8-inch NPT rear port provides direct pressure connection.
This 1-1/2-inch Marshall Instruments™ mechanical pressure gauge provides a direct reading at the measurement point. Silicone filling damps vibration and pointer movement, with a stainless steel case, brass internals and a clear acrylic lens. The case measures 1.6 inches in diameter and the bezel measures 1.75 inches. A 1/8-inch NPT center-back connection threads into a compatible pressure port. The Midnight Silver dial has a red pointer and a chrome-finished case and bezel. Choose the pressure range for the system being measured: 0-15, 0-30, 0-60, 0-100, 0-1,500 PSI. This is a mechanical instrument; it does not require an electrical pressure sender.
• 1-1/2-inch direct-mount mechanical pressure gauge
• Midnight Silver dial with red pointer
• Available ranges: 0-15, 0-30, 0-60, 0-100, 0-1,500 PSI
• 1/8-inch NPT center-back connection
• Silicone filled for vibration damping
• Stainless steel case; brass internals and acrylic lens
• 1.6-inch case; 1.75-inch bezel
• Chrome-finished case and bezel
