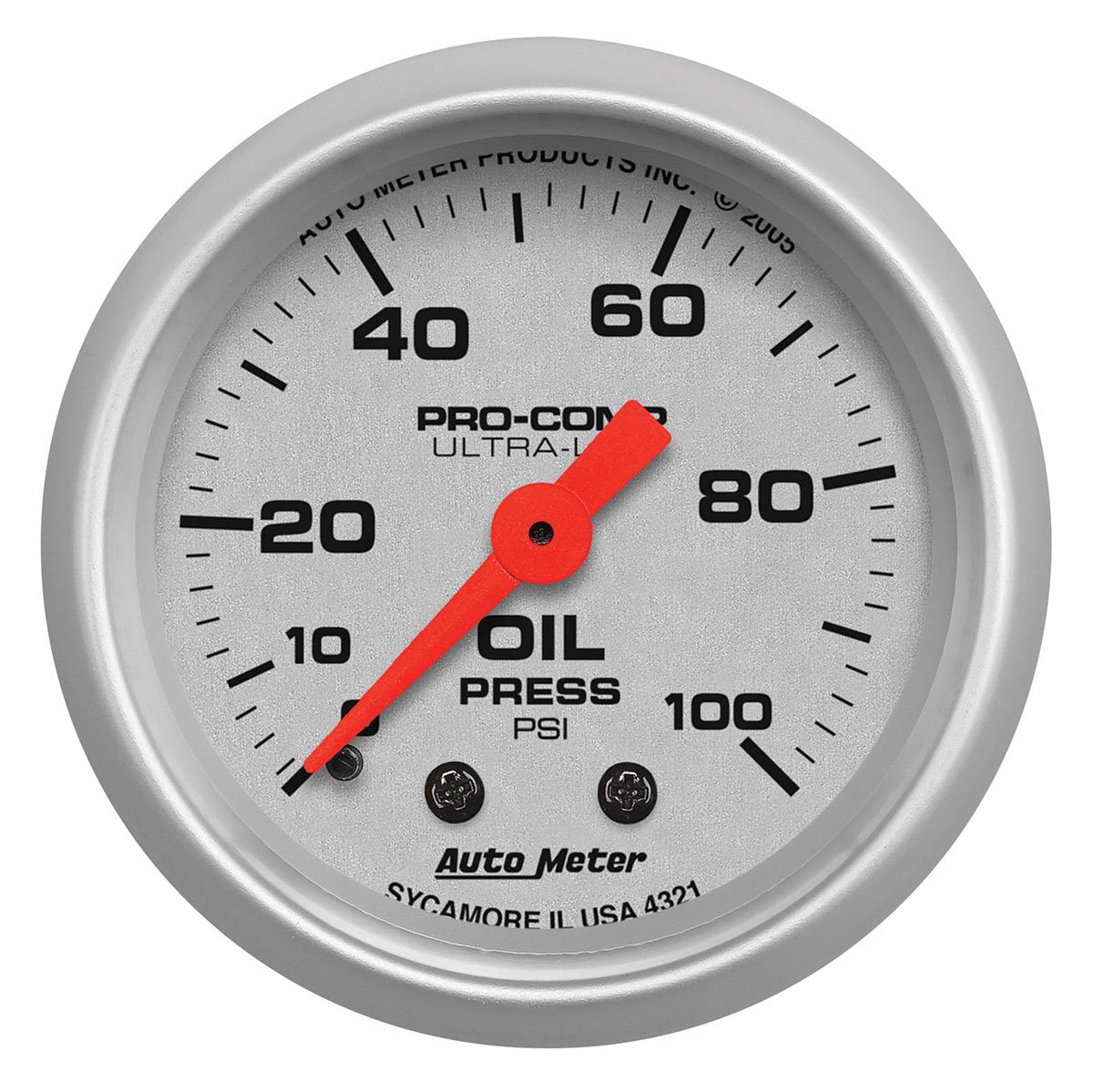

2-1/16-Inch Mechanical Oil Pressure Gauge (0-100 PSI) by AutoMeter®
Bourdon-tube movement measures oil pressure without an electrical sender.
This 2-1/16-inch AutoMeter® mechanical oil-pressure gauge uses a Bourdon-tube movement to display 0-100 PSI. Oil pressure is carried to the gauge through the supplied tubing, so the reading does not depend on an electrical sender; only the dial illumination requires power. The 1/8-inch NPT connection is supplied with 1/8-inch nylon tubing, male and female compression fittings and a 1/4-inch NPT adapter bushing. A bulb/socket assembly, red and green bulb covers, mounting hardware and detailed instructions complete the installation package. Select the series and face finish that match your other instruments.
• 2-1/16-inch gauge; 0-100 PSI
• Mechanical Bourdon-tube pressure movement
• 1/8-inch NPT gauge connection
• 1/8-inch nylon tubing and compression fittings included
• 1/4-inch NPT adapter bushing included
• Reading needs no electrical sender or gauge power
• Bulb/socket, red and green covers, mounting hardware and instructions
Notes
- Part# C210377, "Extended Mounting Base", is for mounting "Sport-Comp", "Phantom", "Ultra-Lite" and "Pro-Comp" tachs and gauges in cups on the dashboard.
- This item is not eligible for any further discounts or promotional pricing.
