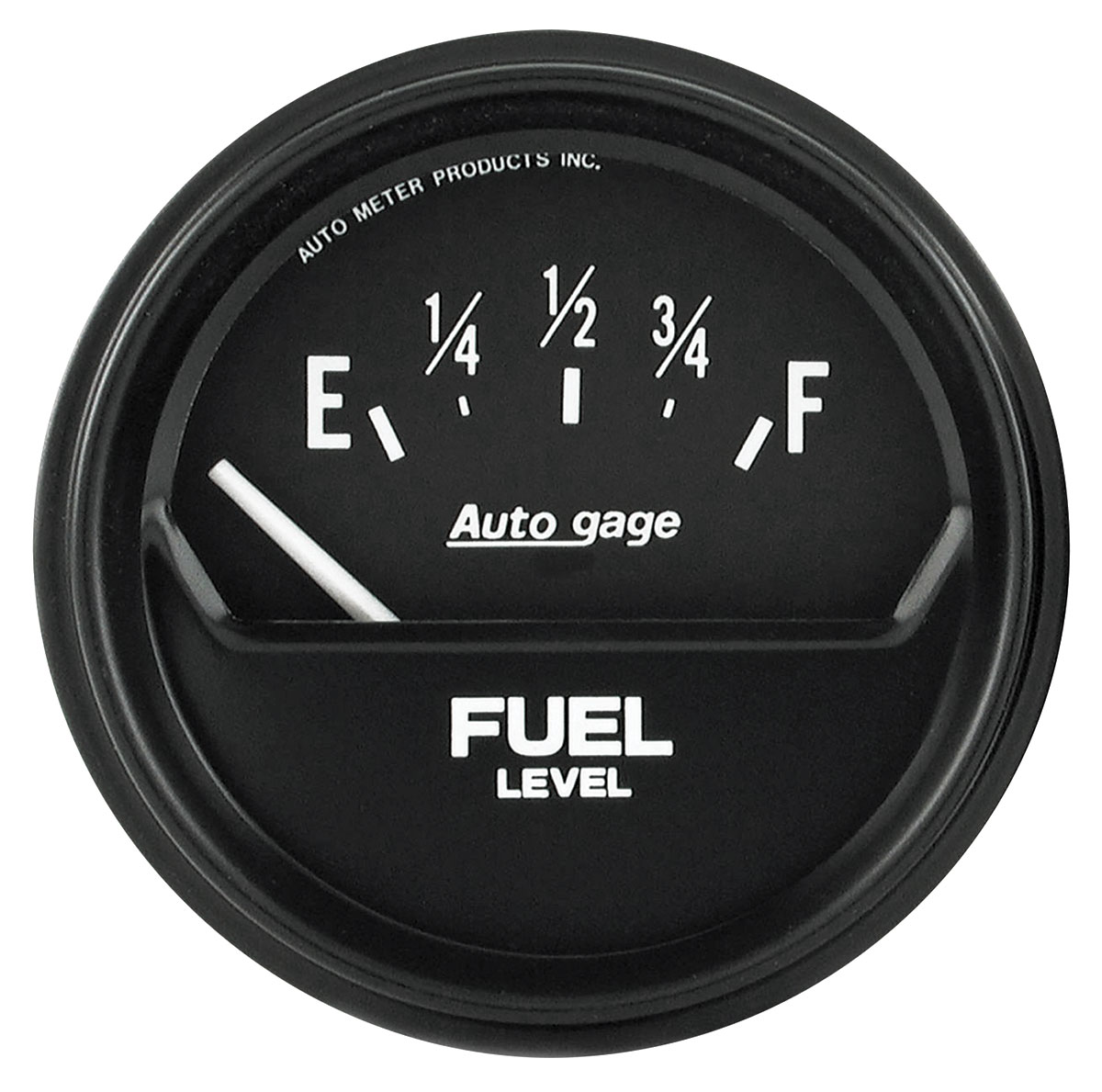

2-5/8-Inch Fuel Level Gauge (0 Ohm Empty/90 Ohm Full) by AutoMeter®
Damped air-core movement steadies the fuel-level reading as fuel moves in the tank.
This 2-5/8-inch AutoMeter® fuel gauge uses an air-core electric movement with needle damping to reduce fluctuations caused by fuel slosh. The 0-ohm-empty/90-ohm-full calibration matches the corresponding GM-style sending unit; verify that resistance before selecting your gauge series. It operates with 12- or 16-volt electrical systems. Lighting and dial appearance follow the selected gauge series. Incandescent versions include a bulb/socket assembly and red and green bulb covers. Mounting hardware and installation instructions are supplied. Match the gauge to the tank sender before installation; this is a fuel-level gauge, not a replacement sending unit.
• 2-5/8-inch fuel-level gauge
• Sender calibration: 0 ohms empty; 90 ohms full
• Air-core electric movement with fuel-slosh damping
• 12- and 16-volt compatible
• Gauge lighting depends on selected series
• Bulb/socket and red/green covers with incandescent versions
• Mounting hardware and instructions included
Notes
- Part# C210377, "Extended Mounting Base", is for mounting "Sport-Comp", "Phantom", "Ultra-Lite" and "Pro-Comp" tachs and gauges in cups on the dashboard.
- This item is not eligible for any further discounts or promotional pricing.
