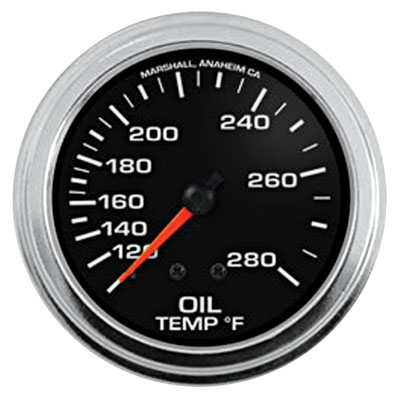

2-5/8-Inch Comp II Mechanical Oil Temperature Gauge (100-280°F) by Marshall Instruments™
Six-foot capillary tube and a full-sweep bronze Bourdon movement provide a mechanical reading.
This Marshall Instruments™ Comp II oil-temperature gauge uses a full-sweep bronze Bourdon-tube movement to display 100-280°F. The six-foot capillary tube and 1/2-inch NPT fitting connect the sensing bulb to the gauge without an electrical temperature sender. Black or white dials are available, with a contrasting pointer and through-dial incandescent illumination. The gauge has a fixed chrome step bezel and a removable silver anodized-aluminum trim ring. Mounting hardware and the 12-volt lighting kit are included. Check the six-foot routing distance before installation; the capillary length is part of the gauge assembly.
• 2-5/8-inch mechanical oil-temperature gauge
• 100-280°F scale with full-sweep bronze Bourdon movement
• Six-foot capillary tube with 1/2-inch NPT fitting
• Black or white dial with contrasting pointer
• Chrome step bezel and removable silver anodized-aluminum trim ring
• Through-dial incandescent illumination; 12-volt lighting kit
• Mounting hardware included
Notes
- This item is not eligible for any further discounts or promotional pricing.
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
