Gauge Set w/Alum. Panel, Autometer, 1964-66 Chevrolet Truck/Suburban, 6-Gauge

1964-66 Chevrolet C/K Truck/Suburban 6-Gauge Aluminum Panel Kit by AutoMeter®

CNC-machined aluminum panel combines electric instruments with wiring and senders.

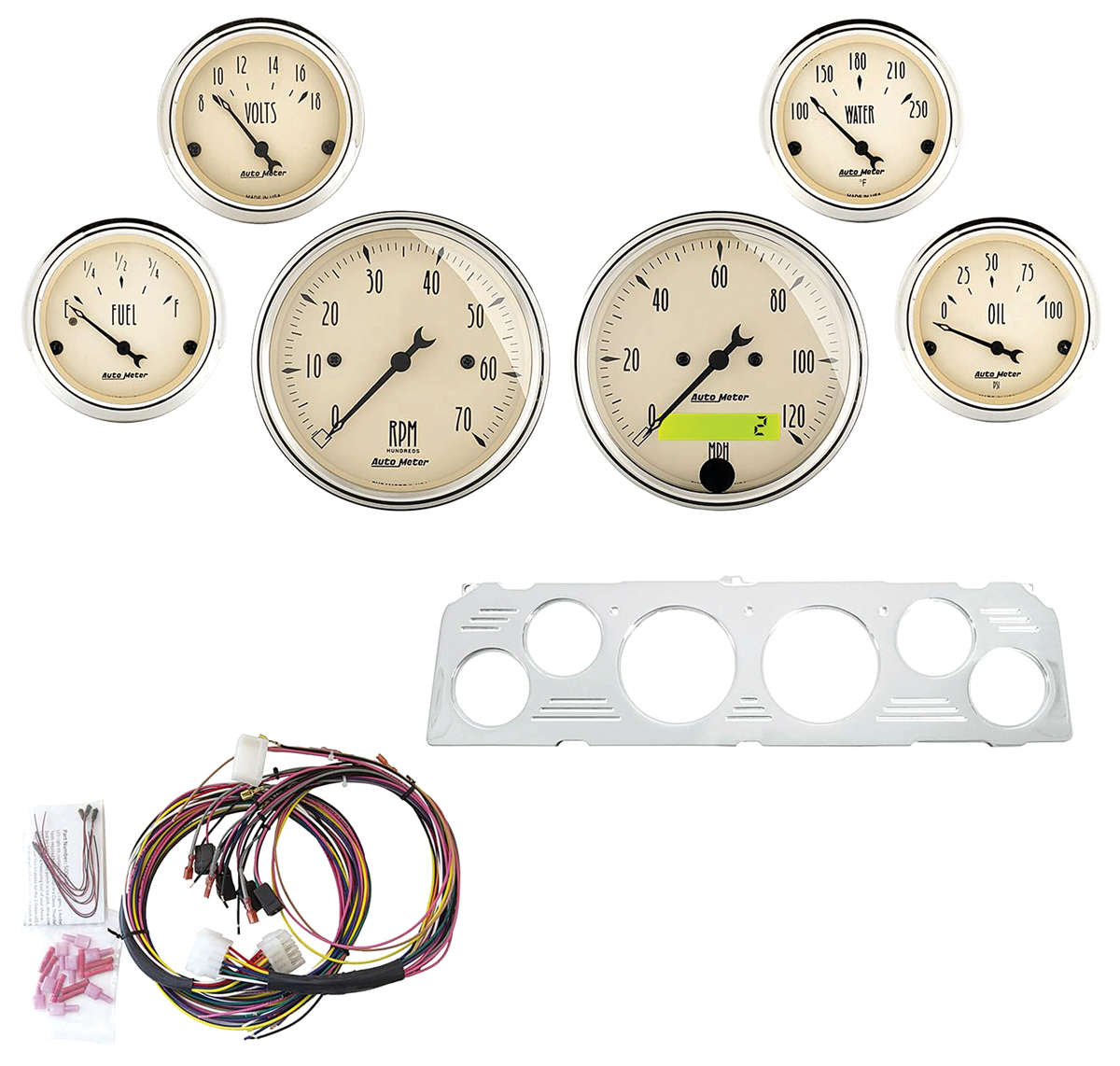

This AutoMeter® package combines an electric speedometer, tachometer, fuel-level, water-temperature, oil-pressure and volt gauges with a polished billet-aluminum panel for the 1964-66 Chevrolet C/K Truck/Suburban dash. The CNC-machined panel has ball-milled detailing and retains the original outer bezel, which is not included. The speedometer and tachometer measure 3-1/8 inches, with four 2-1/16-inch auxiliary gauges. The package includes a wiring harness, an electric vehicle-speed sender, 1/8-inch NPT water-temperature and oil-pressure senders, adapter fittings and installation instructions. The fuel gauge uses a 0-ohm-empty/30-ohm-full sender signal; match the fuel sender to that range. Gauge-face style and illumination depend on the selected series.

• 1964-66 Chevrolet C/K Truck/Suburban • 6 instruments with speedometer and tachometer • Polished CNC-machined billet-aluminum panel • 3-1/8-inch speedometer/tachometer; four 2-1/16-inch auxiliary gauges • Vehicle-speed sender and wiring harness included • 1/8-inch NPT oil-pressure and temperature senders with adapters • Turn-signal and high-beam indicators included • Fuel gauge: 0 ohms empty, 30 ohms full • Original outer bezel reused; not included
