Gauge Conversion, NVU, Performance, 1984-87 Regal

1984-87 Buick Regal Performance Gauge Conversion by New Vintage USA™

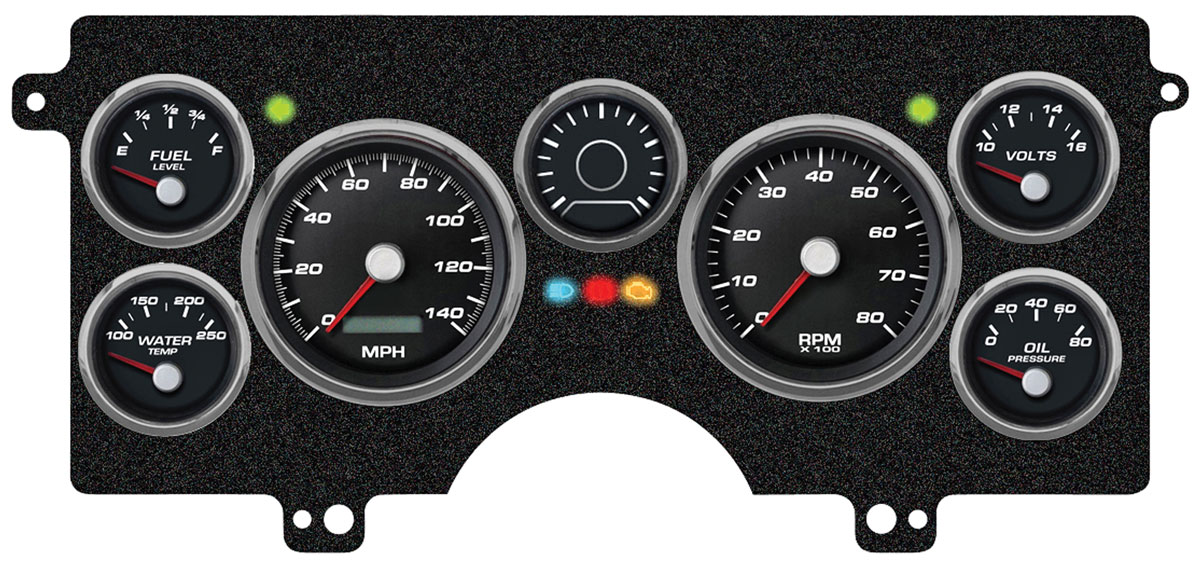

Programmable speedometer and six primary instruments in the original dash location.

This New Vintage USA™ Performance gauge conversion gives the 1984-87 Buick Regal dash a GNX-style instrument layout. A CNC-cut laminate bracket attaches to the stock mounting tabs. Black-and-silver printed acrylic trim covers the cut edges, but the original bezel must be trimmed for installation. Performance instruments feature factory-inspired dial graphics, perimeter lighting and flat glass lenses. The instruments also feature scratch-resistant bezels and shock- and water-resistant components. A programmable 140-MPH electronic speedometer and tachometer are accompanied by dedicated fuel-level, coolant-temperature, oil-pressure and voltage gauges. The fuel gauge matches the factory 0-90-ohm sender. The speedometer accepts a compatible GM® transmission speed signal or powertrain control module (PCM) output, allowing it to work with an electronic speed input rather than a mechanical cable. Turn-signal, high-beam and warning indicators remain hidden when off. Choose the turbo or non-turbo version to match the car. The turbo package adds a matching mechanical vacuum/boost gauge; a tubing kit may be required. The non-turbo package uses a matching center filler in place of the boost gauge. Oil-pressure and coolant-temperature senders, adapter bushings, the mounting bracket, gauge hardware and instructions are included. An electronic speed signal is required; a separate speed sender may be needed and is not included. Backed by a five-year limited manufacturer warranty.

• 1984-87 Buick Regal; Performance instrument styling • 3-3/8-inch programmable electronic speedometer with 140-MPH scale and matching 3-3/8-inch tachometer • 2-1/16-inch fuel-level, coolant-temperature, oil-pressure and voltage gauges • Fuel gauge calibrated for the factory 0-90-ohm sender • Factory-inspired dial graphics, perimeter lighting and flat glass lenses • Turn-signal, high-beam and warning indicators hidden when not illuminated • CNC-cut laminate bracket attaches to stock tabs; black-and-silver acrylic trim included • Trimming of the original dash bezel is required • Turbo option: matching mechanical vacuum/boost gauge; tubing may be required • Non-turbo option: matching center filler instead of vacuum/boost gauge • Oil-pressure and coolant-temperature senders, adapter bushings, gauge mounting hardware and instructions included • Compatible GM® transmission speed-sensor or PCM signal accepted; speed sender is not included • Five-year limited manufacturer warranty
