1978-88 Oldsmobile Cutlass Performance Gauge Conversion by New Vintage USA™
Programmable speedometer and six primary instruments in the original dash location.

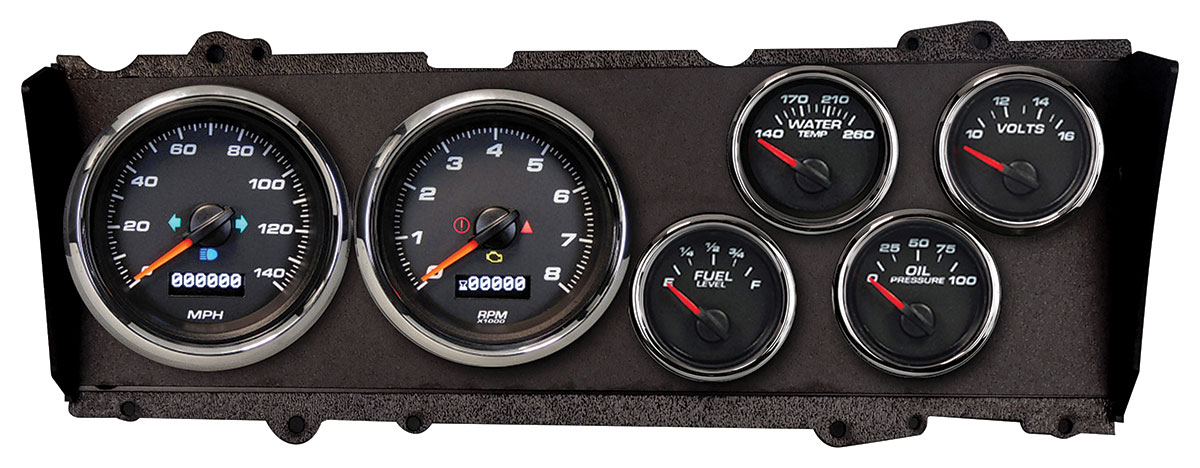

This New Vintage USA™ Performance gauge conversion updates the 1978-88 Oldsmobile Cutlass dash with six instruments in the original cluster opening. A CNC-cut laminate bracket allows the gauge positions to be adjusted within the carrier, while acrylic dash trim finishes the installation. Performance instruments feature factory-inspired dial graphics, white LED perimeter lighting and flat glass lenses. Scratch-resistant stainless steel bezels and shock- and water-resistant instrument components add durability without an oversized racing-gauge appearance.
A programmable 140-MPH electronic speedometer and tachometer are accompanied by dedicated fuel-level, coolant-temperature, oil-pressure and voltage gauges. The fuel gauge matches the factory 0-90-ohm sender. Phoenix Direct-Drive electronics add OLED information displays, performance timing, sequential shift alerts and auxiliary inputs. Color-coded AMP connections let the smaller gauges plug into the speedometer and tachometer, reducing individual gauge wiring. Turn-signal, high-beam and warning indicators remain hidden when off.
Oil-pressure and coolant-temperature senders, adapter bushings, the mounting bracket, gauge hardware and instructions are included. The speedometer accepts a compatible GM® transmission speed signal or PCM output. An electronic speed signal is required; a separate speed sender may be needed and is not included. Backed by a five-year limited manufacturer warranty.
• 1978-88 Oldsmobile Cutlass; Performance instrument styling
• 3-3/8-inch programmable electronic speedometer with 140-MPH scale and matching 3-3/8-inch tachometer
• 2-1/16-inch fuel-level, coolant-temperature, oil-pressure and voltage gauges
• Fuel gauge calibrated for the factory 0-90-ohm sender
• White LED perimeter lighting, scratch-resistant stainless steel bezels and flat glass lenses
• Shock- and water-resistant instrument components
• Phoenix Direct-Drive electronics with color-coded AMP connectors and plug-in minor-gauge wiring
• OLED information displays, performance timing, sequential shift alerts and auxiliary inputs
• Turn-signal, high-beam and warning indicators hidden when not illuminated
• CNC-cut laminate bracket permits gauge positioning within the original cluster opening
• Mounting panel with indicators and acrylic dash trim included
• Oil-pressure and coolant-temperature senders, adapter bushings, gauge mounting hardware and instructions included
• Compatible GM® transmission speed-sensor or PCM signal accepted; speed sender is not included
• Five-year limited manufacturer warranty
