1978-88 Oldsmobile Cutlass Aviator Gauge Conversion by New Vintage USA™

Red-backlit instruments combine black bezels with flat glass lenses.

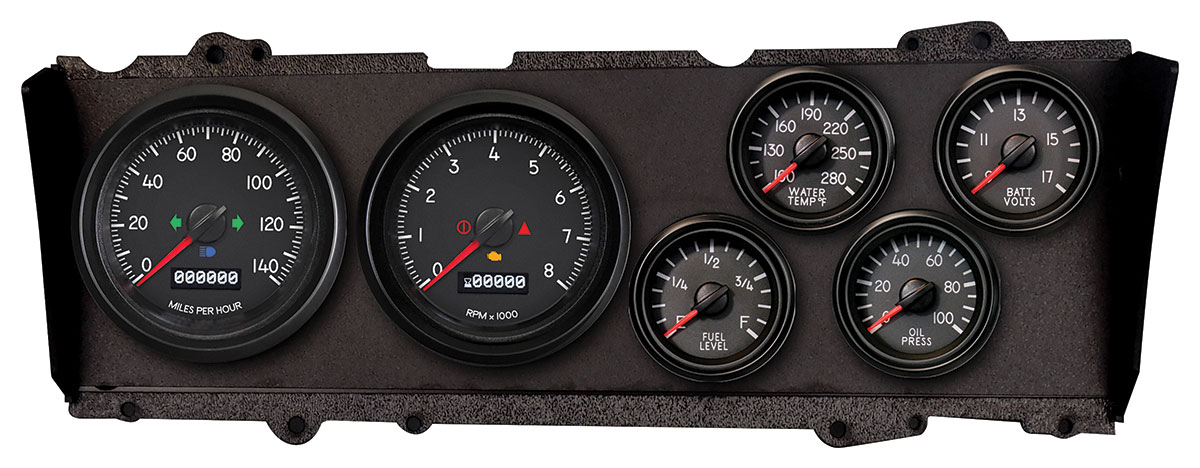

This New Vintage USA™ Aviator gauge conversion updates the 1978-88 Oldsmobile Cutlass dash with six instruments in the original cluster opening. A CNC-cut laminate bracket allows the gauge positions to be adjusted within the carrier, while acrylic dash trim finishes the installation. Aviator instruments combine red LED backlighting and illuminated pointers with black bezels and flat glass lenses. Shock-resistant cases and threaded rear clamps with vibration-damping O-rings secure the gauges. The instrument fronts are sealed against water pressure up to 35 PSI; this rating does not apply to the rear electrical connections. A programmable 140-MPH electronic speedometer and tachometer are accompanied by dedicated fuel-level, coolant-temperature, oil-pressure and voltage gauges. The fuel gauge matches the factory 0-90-ohm sender. Phoenix Direct-Drive electronics add OLED information displays, performance timing, sequential shift alerts and auxiliary inputs. Color-coded AMP connections let the smaller gauges plug into the speedometer and tachometer, reducing individual gauge wiring. Turn-signal, high-beam and warning indicators remain hidden when off. Oil-pressure and coolant-temperature senders, adapter bushings, the mounting bracket, gauge hardware and instructions are included. The speedometer accepts a compatible GM® transmission speed signal or PCM output. An electronic speed signal is required; a separate speed sender may be needed and is not included. Backed by a five-year limited manufacturer warranty.

• 1978-88 Oldsmobile Cutlass; Aviator instrument styling • 3-3/8-inch programmable electronic speedometer with 140-MPH scale and matching 3-3/8-inch tachometer • 2-1/16-inch fuel-level, coolant-temperature, oil-pressure and voltage gauges • Fuel gauge calibrated for the factory 0-90-ohm sender • Red LED backlighting, illuminated pointers, black bezels and flat glass lenses • Shock-resistant cases; threaded rear clamps with vibration-damping O-rings • Water sealing rated to 35 PSI at the instrument fronts only • Phoenix Direct-Drive electronics with color-coded AMP connectors and plug-in minor-gauge wiring • OLED information displays, performance timing, sequential shift alerts and auxiliary inputs • Turn-signal, high-beam and warning indicators hidden when not illuminated • CNC-cut laminate bracket permits gauge positioning within the original cluster opening • Mounting panel with indicators and acrylic dash trim included • Oil-pressure and coolant-temperature senders, adapter bushings, gauge mounting hardware and instructions included • Compatible GM® transmission speed-sensor or PCM signal accepted; speed sender is not included • Five-year limited manufacturer warranty
