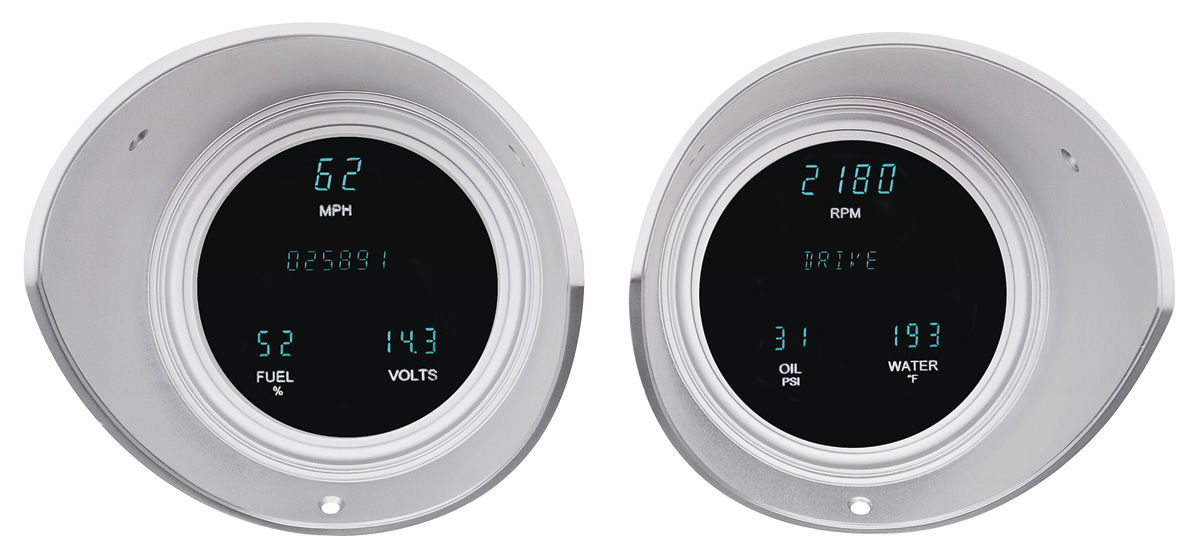

1973-77 Oldsmobile Cutlass VFD Digital Gauge System by Dakota Digital®
Six-gauge VFD system reuses the factory gauge bezels and includes the required primary senders.
Convert your 1973-77 Oldsmobile Cutlass to comprehensive digital instrumentation with Dakota Digital’s Series III VFD system. Dakota Digital's Series III VFD system uses high-brightness vacuum-fluorescent displays for six primary readings: a 0-255 MPH speedometer, 0-17,500 RPM tachometer, 0-99 psi oil pressure, 0-300°F water temperature, 0-99% fuel level and 8-17 VDC voltmeter. The digital information system also provides a one-time-settable million-mile odometer, dual trip meters, 0-60 mph and quarter-mile timers, quarter-mile trap speed, high-speed recall and high-RPM recall. Built-in indicators support left/right turn signals, high beam, check engine, parking brake and available cruise/gear-position functions; gear-position display requires an optional Dakota Digital sender. The sender package includes a 1/8-inch NPT water-temperature sensor, 1/8-inch NPT solid-state oil-pressure sensor, cable-driven speed pulse generator, 10-foot harnesses and common NPT/metric adapter bushings. Pushbutton programming is used for speedometer calibration, cylinder count and fuel-level setup, and current black-plastic control boxes support BIM expansion modules for additional vehicle data. Dakota Digital mounting instructions place the speedometer assembly on the original speedometer bezel and the tachometer assembly on the original fuel-gauge bezel, reusing appropriate factory screws. Display illumination is available in Dakota Digital’s Blue or Teal VFD color configurations.
• Dakota Digital fitment: 1973-77 Oldsmobile Cutlass
• 0-255 MPH speedometer and 0-17,500 RPM tachometer
• 0-99 psi oil, 0-300°F water, 0-99% fuel and 8-17 VDC displays
• Odometer, dual trip meters and 0-60/quarter-mile performance functions
• Includes water-temperature, oil-pressure and cable-driven speed sensors
• Dakota Digital mounting instructions place the speedometer assembly on the original speedometer bezel and the tachometer assembly on the original fuel-gauge bezel, reusing appropriate factory screws
