1968 Chevrolet Chevelle InVision 12.3-Inch Digital Dash Kit by AutoMeter®
Four screen layouts, selectable colors and programmable warnings share one 12.3-inch LCD display.

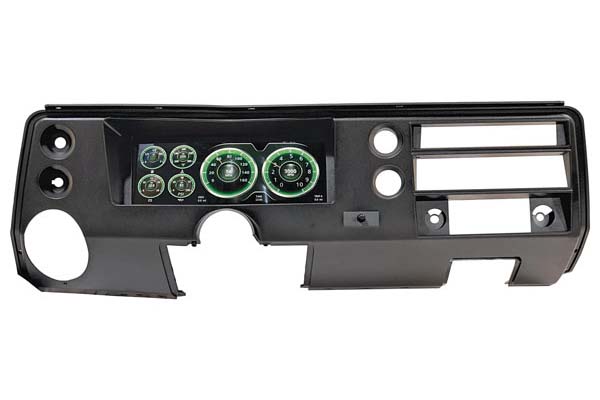

This AutoMeter® InVision package combines a 12.3-inch high-definition LCD with a housing designed for the 1968 Chevrolet Chevelle dash. Four selectable screen layouts and customizable colors display speed, engine RPM, fuel level, oil pressure, coolant temperature and voltage together. On-screen high-beam, turn-signal, check-engine and instrument-warning indicators retain important driver information. The speedometer can be calibrated to a compatible original or aftermarket vehicle-speed sensor, and the tachometer supports engine configurations from 1 to 12 cylinders. Selectable fuel-sender resistance ranges allow use with compatible original or aftermarket senders. A universal wiring harness, oil-pressure and temperature senders, 3/8- and 1/2-inch NPT adapters, mounting brackets and a joystick for setup are included. Removable A/C vent block-off plates let the housing suit the dash configuration. A compatible speed sensor is required and is not included. For an engine swap, check the sender adapters and RPM signal needed for the engine rather than assuming the original connectors will work.
• 12.3-inch high-definition LCD in a 1968 Chevelle housing
• Four screen layouts with color customization
• Speed, RPM, fuel, oil pressure, coolant temperature and voltage
• High-beam, turn-signal, check-engine and instrument warnings
• Calibrates to compatible original or aftermarket speed sensors
• Tachometer configurable for supported 1-12-cylinder engines
• Selectable fuel-sender resistance ranges
• Universal harness, oil-pressure and temperature senders included
• 3/8- and 1/2-inch NPT adapters and mounting brackets
• Joystick controls display setup and customization
• Removable A/C vent block-off plates
• Speed sensor required; not included
