Dash Conversion, 1970 Chevelle/El Camino SS, w/ 5500 RL Tach, Column Shift

Part# : CH28297
Sold As: Kit
Ship Size: View Kit Item Sizes
$2,399.99

DISCOUNTED KITSave $363.00 with this bundle

List Price: $2,762.99

Kit Items & Stock Status
Vehicle Specific View fitment for 2 models
Add To Wishlist

Complete 1970 Chevelle & El Camino Super Sport Dash Conversion Kit

5500 RL Tachometer with Column Shift / Factory Style Fit, Appearance and Functionality

When converting a standard 1970 Chevelle or El Camino dashboard to the factory Super Sport gauge package, it requires dozens of individual components that must fit and function together correctly. The OPGI complete dash conversion kit eliminates the guesswork by combining all of the premium components necessary into one convenient, discounted package. From the complete GM factory correct instrument panel assembly and factory-style gauges to the wiring harnesses, printed circuit, lighting, switches, lenses, hardware, and installation components, every major part needed for a factory-style conversion is included. Many of the components are manufactured exclusively by RESTOPARTS®, while the remaining items have been carefully selected to ensure proper compatibility, fit, and appearance throughout the conversion. Whether you're restoring an original Super Sport or upgrading a standard dash, this complete kit provides the easiest, most accurate path to achieving an authentic factory-installed appearance while saving both time and money over purchasing components individually. See the complete component list below for all included parts.

Features • Complete Super Sport dash conversion package in one easy step! • Premium components selected for proper fit and compatibility • Includes instrument panel assembly, gauges, wiring harnesses, lenses, hardware, and installation components • Many components manufactured exclusively by OPGI / RESTOPARTS® • Factory-style fit, appearance, and functionality • Eliminates the guesswork of sourcing dozens of individual parts • Convenient discounted package saves over purchasing components individually

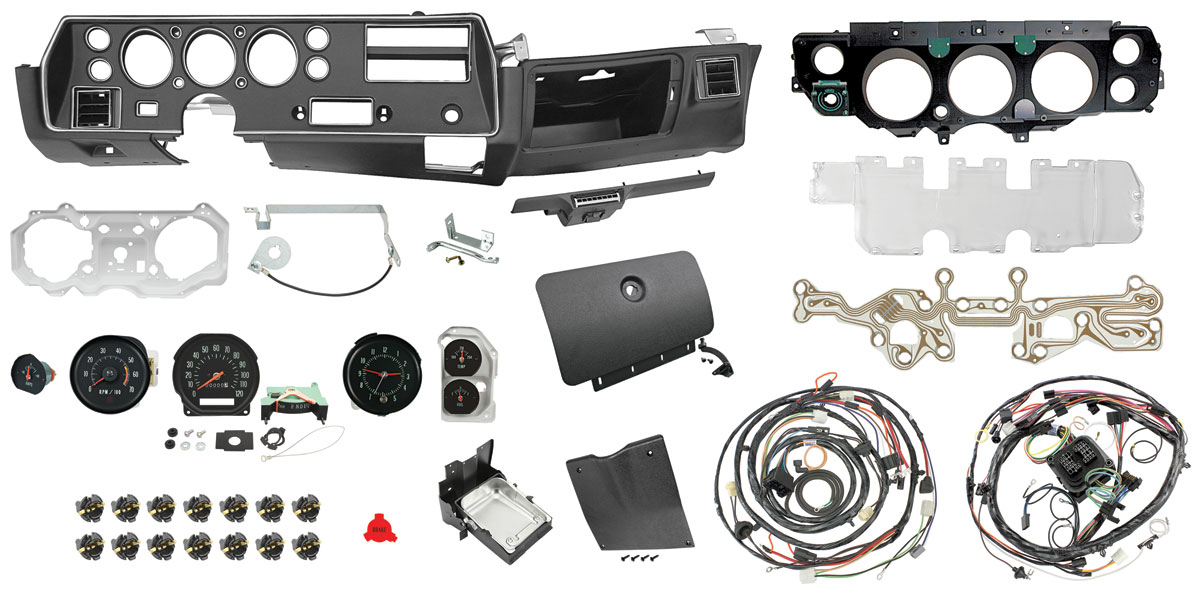

Kit Components (32 items)

  • Wiring Harness, Forward Lamp, 1970 Chev/El Cam, V8/Gauges Qty: 1
  • Wiring Harness, Dash, 1970 Chevelle & El Camino & Monte, Round SS Gauges Qty: 1
  • Lens, Gauge Cluster, 1970-72 (SS) Chevelle, El Cam & Monte Carlo Qty: 1
  • Gauge, Tachometer, 1970 CH/EC/MC L34/LS5, 5500 Red Line Qty: 1
  • Gauge, Amp, 1970 CH/EC/MC Super Sport Qty: 1
  • Gauge, Temperature/Fuel, 1970 CH/EC/MC Super Sport Qty: 1
  • Gauge, Clock, 1970 CH/EC/MC, In Dash Qty: 1
  • Ash Tray, Dash, 1970-72 CH/EC/MC Super Sport Qty: 1
  • Door, Glove Box, 1970-72 Chevelle/El Camino/Monte Carlo Qty: 1
  • Dash Housing Assembly, 1970-72 SS Chevelle/El Camino/Monte Carlo Qty: 1
  • Gauge Housing, Metal, 1970-72 Chevelle/El Camino/Monte Carlo Qty: 1
  • Ground Strap, Dash, 1970-72 CH/EC/MC Qty: 1
  • Gauge, Speedometer, 1970 CH/EC/MC Super Sport, Column Shift Qty: 1
  • Brake Lens, SS Dash, 1970-72 Chevelle/El Camino/Monte Qty: 1
  • Socket, Instrument Panel Lamp, 5/8" Hole Qty: 15
  • Steering Column Cover, 1970-72 Chevelle/El Camino/Monte Carlo, SS Qty: 1
  • Printed Circuit Board, 1970-72 CH/EC/MC SS w/ Gauges Qty: 1
  • Housing, Gauge Cluster, 1970-72 Super Sport Qty: 1

Notes

  • Oil pressure and water temperature sending units are sold separately.
  • Does not include bulbs, uses 15 bulb #194.
  • Does not include any mounting hardware.
  • This item is not eligible for any further discounts or promotional pricing.
  • SHIP NOTE: Item exceeds standard ground freight size/weight, and is not eligible for free ground shipping.
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model Application Details
1970 Chevrolet Chevelle Column Shift - 5500 RL tach
1970 Chevrolet El Camino Column Shift - 5500 RL tach
