1970-72 Malibu, Non-Super Sport Chevelle & El Camino VHX by Dakota Digital®

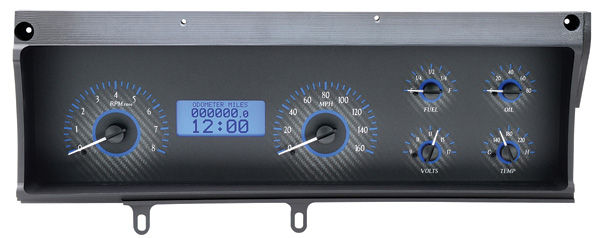

Sweep-dash VHX system adds six analog gauges and LCD data without cutting the original dash.
Upgrade your 1970-72 Chevrolet Malibu, Non-Super Sport Chevelle & El Camino with a Dakota Digital VHX instrument system built for the original dash architecture. The analog ranges include 0-160 MPH speedometer, 0-8,000 RPM tachometer, 0-80 psi oil pressure, 100-260°F water temperature, E-to-F fuel level and 9-17 VDC voltage. The VHX system combines traditional analog presentation with modern electronic control. Six analog gauges monitor speed, engine RPM, oil pressure, water temperature, fuel level and voltage, while LCD message centers add digital gauge readouts plus odometer, dual trip-meter, clock and performance information including 0-60 mph, quarter-mile time, trap-speed, high-speed and high-RPM recall. Micro-controlled stepper motors drive the gauges, with fully illuminated needles, LED-backlit faces and solid-state senders. The included sender package supplies water-temperature, oil-pressure and cable-driven speed sensing, with threaded adapter bushings, control box, switch assembly and display-to-control-box cabling. Programmable calibration accommodates tire-size/rear-gear changes, cylinder count and fuel-sender setup. Built-in indicators support turn signals, high beam, check engine, parking brake and other available vehicle functions. Current VHX control boxes also support Dakota Digital BIM expansion modules for additional data channels. This VHX system is specifically for the sweep-style/non-Super Sport dash. Dakota Digital states that the six-gauge system installs without cutting the dash and integrates the indicators into the new display. Available configurations include Black, Silver Alloy or Carbon Fiber faces with blue, red or white illumination.
• Dakota Digital fitment: 1970-72 Chevrolet Malibu, Non-Super Sport Chevelle & El Camino
• 0-160 MPH speedometer; 0-8,000 RPM tachometer
• LCD message centers with odometer, trip and performance data
• Includes oil-pressure, water-temperature and cable-driven speed senders
• Black, Silver Alloy or Carbon Fiber faces with blue, red or white illumination
• This VHX system is specifically for the sweep-style/non-Super Sport dash
