1968 GTO, LeMans & Tempest VHX Instrument System by Dakota Digital®

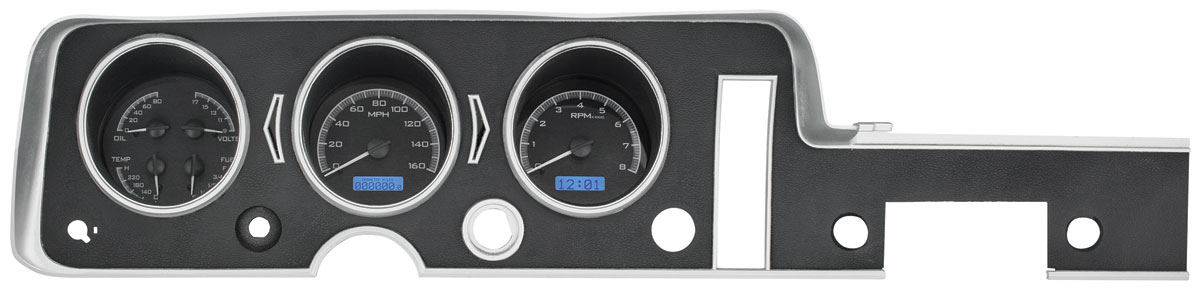

Direct-fit VHX instrumentation uses the stock Pontiac carrier and replaces the original gauge lenses.
Upgrade your 1968 Pontiac GTO, LeMans or Tempest with Dakota Digital's VHX instrument system. This Dakota Digital VHX system combines six analog gauge sweeps with digital LCD message-center data. The analog gauges monitor speed, engine RPM, oil pressure, water temperature, fuel level and voltage using micro-controlled stepper motors, fully illuminated needles and LED-backlit faces. The LCD centers add a one-time-settable million-mile odometer, dual trip meters, 12-hour clock, digital gauge readouts, 0-60 mph and quarter-mile performance timers, trap-speed data, high-speed recall and high-RPM recall. The included solid-state sender package provides water-temperature, oil-pressure and cable-driven speed sensing, plus common NPT/metric adapter bushings, control box, switch assembly and harnessing. Pushbutton setup handles speedometer calibration, cylinder count and fuel-level calibration. Current black-plastic VHX control boxes also support Dakota Digital BIM expansion modules for additional data channels. The vehicle-specific display fits directly into the stock Pontiac gauge carrier and includes new clear lenses, so the stock instrument lenses are no longer used. The factory/stock bezel is retained and is not included with the system. Face and lighting combinations allow Black or Silver Alloy styling with blue, red or white backlighting.
• Dakota fitment: 1968 GTO, LeMans & Tempest
• 0-160 MPH speedometer and 0-8,000 RPM tachometer
• Six analog gauges plus LCD message-center data
• Includes solid-state oil/water/speed senders and control box
• Fits stock Pontiac gauge carrier; new clear lenses included
• Factory bezel retained; bezel not included
