1964-67 GTO/LeMans & 1963-67 Tempest VHX System by Dakota Digital®

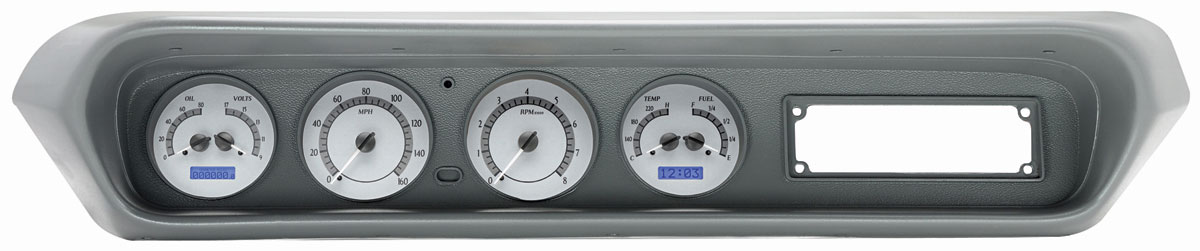

VHX system uses the stock Pontiac gauge carrier with new lenses, analog gauges and LCD data.
Upgrade your Pontiac dash with Dakota Digital's VHX instrument system. Dakota Digital specifies 1964-67 GTO and LeMans applications and explicitly notes Tempest compatibility including 1963. This Dakota Digital VHX system combines six analog gauge sweeps with digital LCD message-center data. The analog gauges monitor speed, engine RPM, oil pressure, water temperature, fuel level and voltage using micro-controlled stepper motors, fully illuminated needles and LED-backlit faces. The LCD centers add a one-time-settable million-mile odometer, dual trip meters, 12-hour clock, digital gauge readouts, 0-60 mph and quarter-mile performance timers, trap-speed data, high-speed recall and high-RPM recall. The included solid-state sender package provides water-temperature, oil-pressure and cable-driven speed sensing, plus common NPT/metric adapter bushings, control box, switch assembly and harnessing. Pushbutton setup handles speedometer calibration, cylinder count and fuel-level calibration. Current black-plastic VHX control boxes also support Dakota Digital BIM expansion modules for additional data channels. The assembly fits directly into the stock Pontiac gauge carrier and includes new clear lenses, so the original instrument lenses are no longer used. It uses an OEM or reproduction-style bezel; bezel/trim/fascia are not included. Gauge-face options include Black Alloy, Silver Alloy and Carbon Fiber with available blue, red or white backlighting depending on configuration.
• Dakota fitment: 1964-67 GTO/LeMans; 1963-67 Tempest
• 0-160 MPH speedometer and 0-8,000 RPM tachometer
• 0-80 psi oil, 100-260°F water, fuel and 9-17 VDC gauges
• LCD message centers with trip, clock and performance data
• Includes solid-state oil/water/speed senders and control box
• Fits stock Pontiac gauge carrier; new clear lenses included
