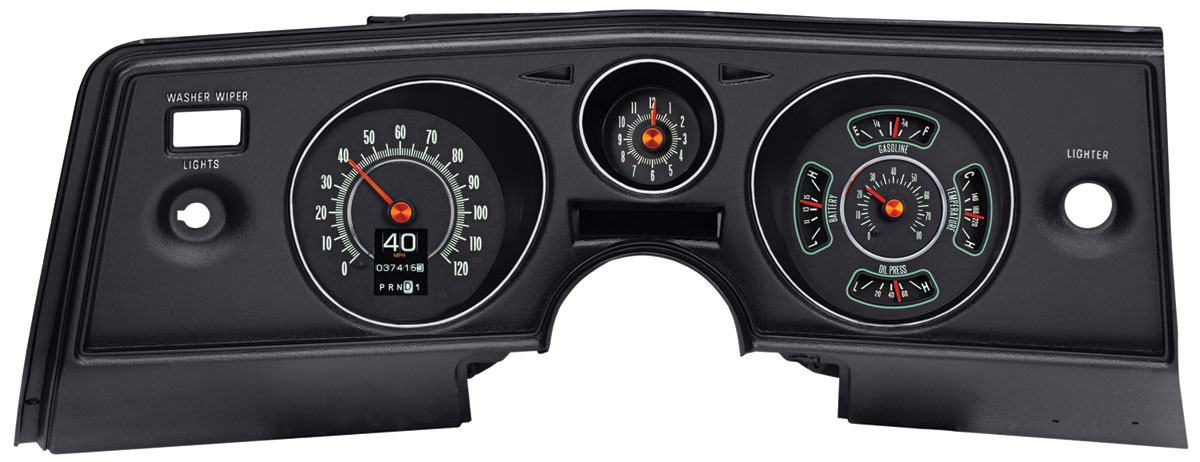

1969 Chevelle & El Camino RTX Instrument System by Dakota Digital®
RTX combines 1969 dash styling, analog gauges, an analog clock and configurable TFT/LED technology.
Dakota Digital’s RTX system gives your 1969 Chevrolet Chevelle or El Camino a factory-inspired instrument layout with modern electronic control hidden behind the vintage appearance. The vehicle-specific layout includes a 12-hour analog clock alongside the analog gauge package and TFT message-center information. The system monitors speed, engine RPM, oil pressure, water temperature, fuel level and voltage; the analog speedometer is 0-120 MPH, the tachometer reads to 8,000 RPM, oil pressure to 80 psi, water temperature from 100-260°F and voltage from 9-17 VDC. High-definition TFT message centers provide odometer, dual trip meters, clock, estimated range, performance timers and recall information while hidden indicators handle turn signals, high beam, check engine, parking brake and other equipped functions. LED backlighting offers extensive user-selectable color themes with separate day/night brightness, and setup/calibration can be performed through the instrument controls or compatible Bluetooth mobile app. Dakota Digital supplies the central control box plus oil-pressure, water-temperature and speed-signal hardware. Uses an OEM or reproduction-style bezel; bezel is not included.
• Dakota Digital fitment: 1969 Chevelle & El Camino
• 0-120 MPH speedometer and 0-8,000 RPM tachometer
• Includes 12-hour analog clock
• TFT message center with trip/performance data
• User-selectable LED lighting and Bluetooth-capable setup
• Uses OEM/reproduction-style bezel; bezel not included
