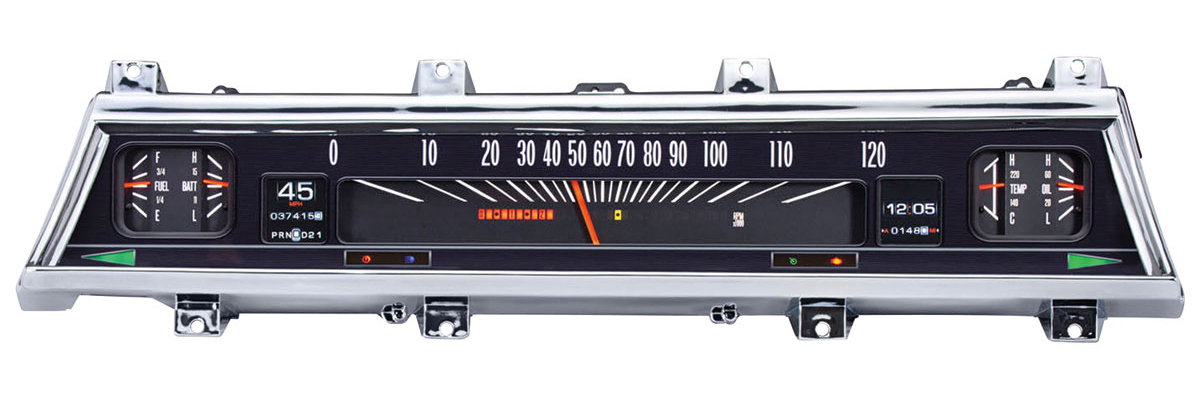

1966-67 Chevelle & El Camino RTX Instrument System by Dakota Digital®
OEM-inspired sweep styling hides TFT data, LED backlighting and modern electronic instrumentation.
Dakota Digital’s RTX system gives your 1966-67 Chevrolet Chevelle or El Camino a factory-inspired instrument layout with modern electronic control hidden behind the vintage appearance. A long sweep speedometer, dual side gauges, hidden LED bar-graph tachometer and two TFT message centers preserve the original visual theme. The system monitors speed, engine RPM, oil pressure, water temperature, fuel level and voltage; the analog speedometer is 0-120 MPH, the tachometer reads to 8,000 RPM, oil pressure to 80 psi, water temperature from 100-260°F and voltage from 9-17 VDC. High-definition TFT message centers provide odometer, dual trip meters, clock, estimated range, performance timers and recall information while hidden indicators handle turn signals, high beam, check engine, parking brake and other equipped functions. LED backlighting offers extensive user-selectable color themes with separate day/night brightness, and setup/calibration can be performed through the instrument controls or compatible Bluetooth mobile app. Dakota Digital supplies the central control box plus oil-pressure, water-temperature and speed-signal hardware. Uses an OEM or reproduction bezel; bezel is not included.
• Dakota Digital fitment: 1966-67 Chevelle & El Camino
• Factory-inspired sweep-speedometer layout
• Hidden 0-8,000 RPM LED bar-graph tachometer
• Two TFT message centers and LED backlighting
• Bluetooth-capable setup and calibration
• Uses OEM or reproduction bezel; bezel not included
