-4AN Braided Stainless Steel Gauge Line Kit by AutoMeter®
PTFE-lined hose, a firewall grommet and pressure-gauge adapters in three length choices.

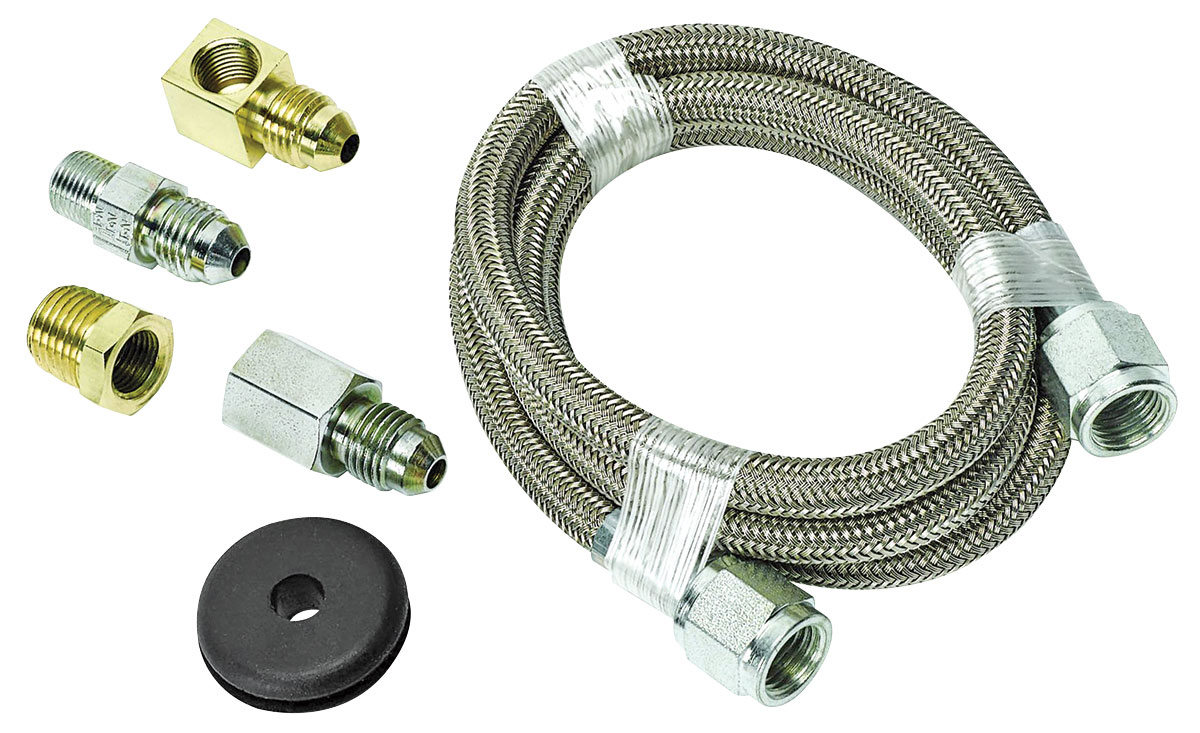

This AutoMeter® line kit connects a mechanical pressure gauge or a remotely mounted electric pressure sender to the pressure source. The hose has a PTFE liner and Type 304 stainless steel braid, with 3-, 4- and 6-foot lengths available. Supplied fittings provide straight and 90-degree -4AN-to-1/8-NPT connections plus a 1/8-to-1/4-NPT adapter bushing. A firewall pass-through grommet is included. The hose operating-temperature range is -65 to 450°F. Choose the length for the actual routing and connection points.
• Length choices: 3, 4 or 6 feet
• -4AN hose with 3/16-inch inside diameter
• PTFE liner and Type 304 stainless steel braid
• Mechanical pressure-gauge or remote-sender connection
• Straight and 90-degree -4AN / 1/8-NPT adapters
• 1/8-to-1/4-NPT bushing and firewall grommet
• Hose operating-temperature range: -65 to 450°F
Notes
- These PTFE line hoses have a max operating pressure of 3000 PSI with a burst pressure of 12,000 PSI.
- This item is not eligible for any further discounts or promotional pricing.
