Display Controller, AutoMeter OBDII Dash, 2015-16 Escalade
ADDED TO YOUR WISHLIST!

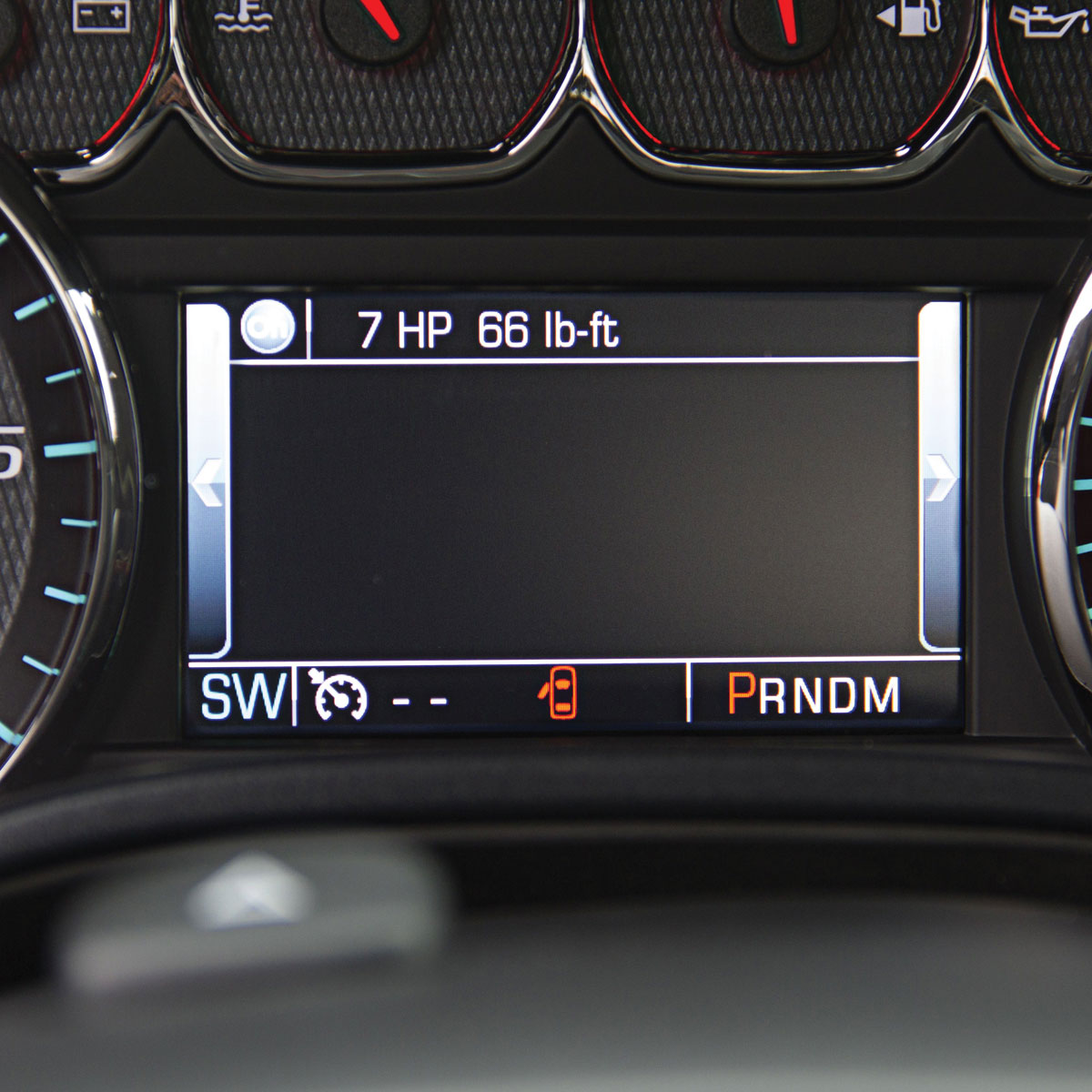

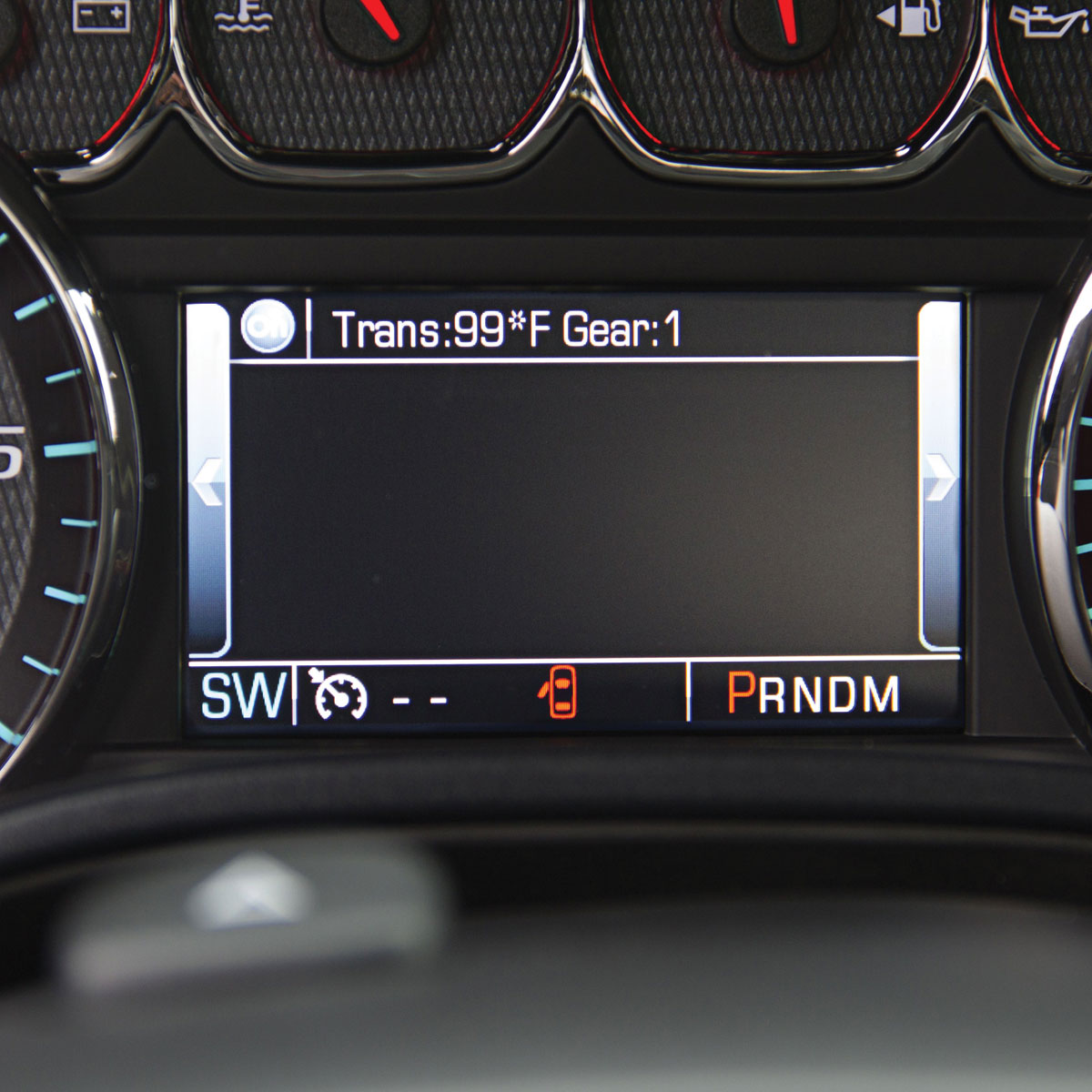

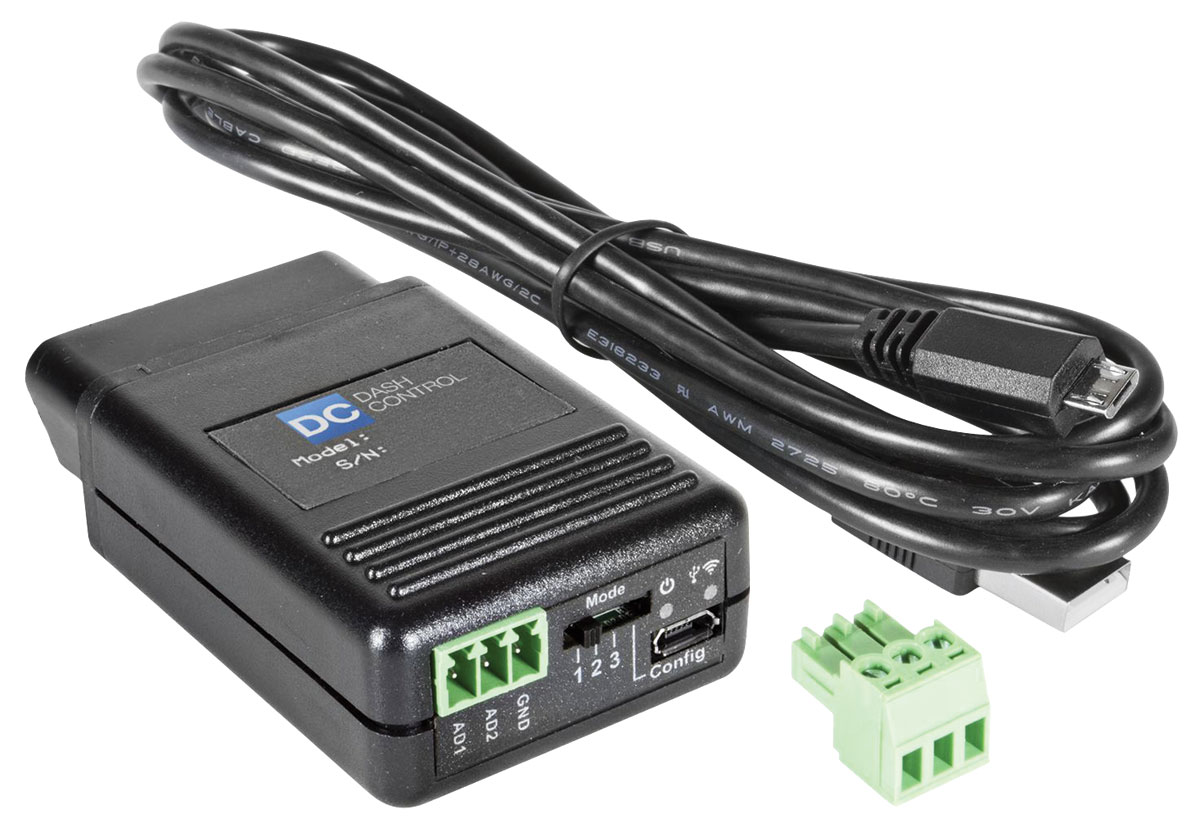

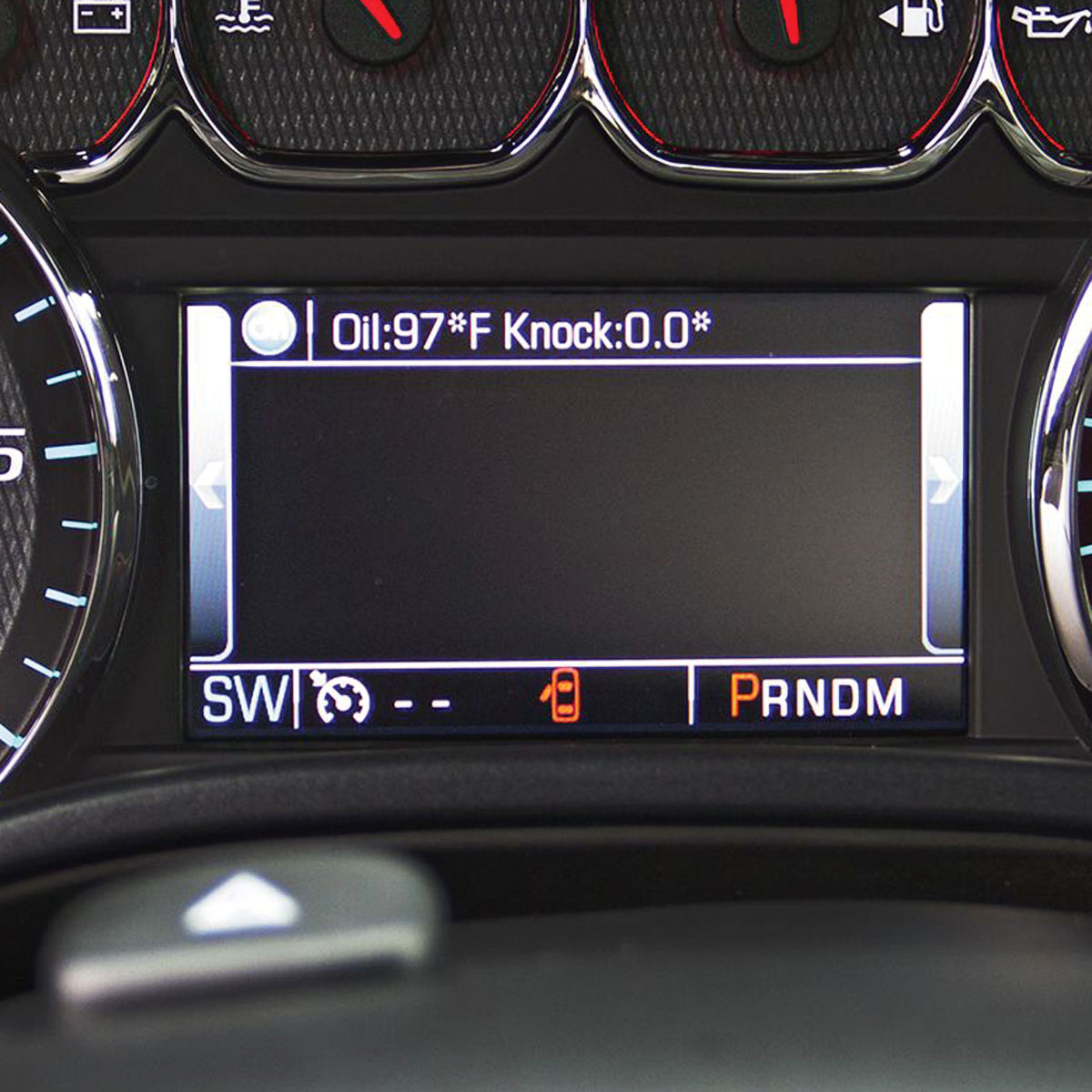

This AutoMeter® DashControl™ module uses the 2015-16 Cadillac Escalade's original Driver Information Center to show vehicle data without adding separate gauges. It plugs into the OBD-II port, starts with the vehicle and enters a low-power sleep mode when the vehicle stops. User-configurable pages organize engine, fuel, temperature and performance data, while programmable thresholds can display a warning and sound the factory chime. Up to two additional analog inputs expand monitoring beyond the vehicle's existing sensors. Put the Driver Information Center in Navigation Mode to see the controller text; the door-lock button advances through display pages and still locks the doors. A profile switch selects saved configurations or the configuration mode used with the setup software. The installation makes no permanent vehicle-computer changes and is reversible by unplugging the module. Available readings depend on the data supplied by the vehicle and any connected additional sensors.
• 2015-16 Cadillac Escalade with gasoline engine • Connects through the OBD-II diagnostic port • Uses the original Driver Information Center display • Navigation Mode required to view controller text • Door-lock button advances pages and still locks the doors • Configurable pages, profiles and alert thresholds • Factory warning-chime and on-screen alert capability • Supports up to two additional analog inputs • Automatic operation with low-power sleep mode • Engine load and throttle position in percent • Coolant and intake-air temperature in °F or °C • Short- and long-term fuel trim in percent • Manifold absolute pressure in PSI or kPa • Spark timing in degrees; oxygen-sensor voltage in mV • Airflow in g/s or lb/min; fuel level in percent • 0-60 MPH and 1/8-, 1/4- or 1/2-mile timing • Reversible by unplugging the module
