LED Gauge Dimming Module (Up to 6 Instruments) by AutoMeter®
Independent LED-lighting control dims up to six compatible AutoMeter instruments.

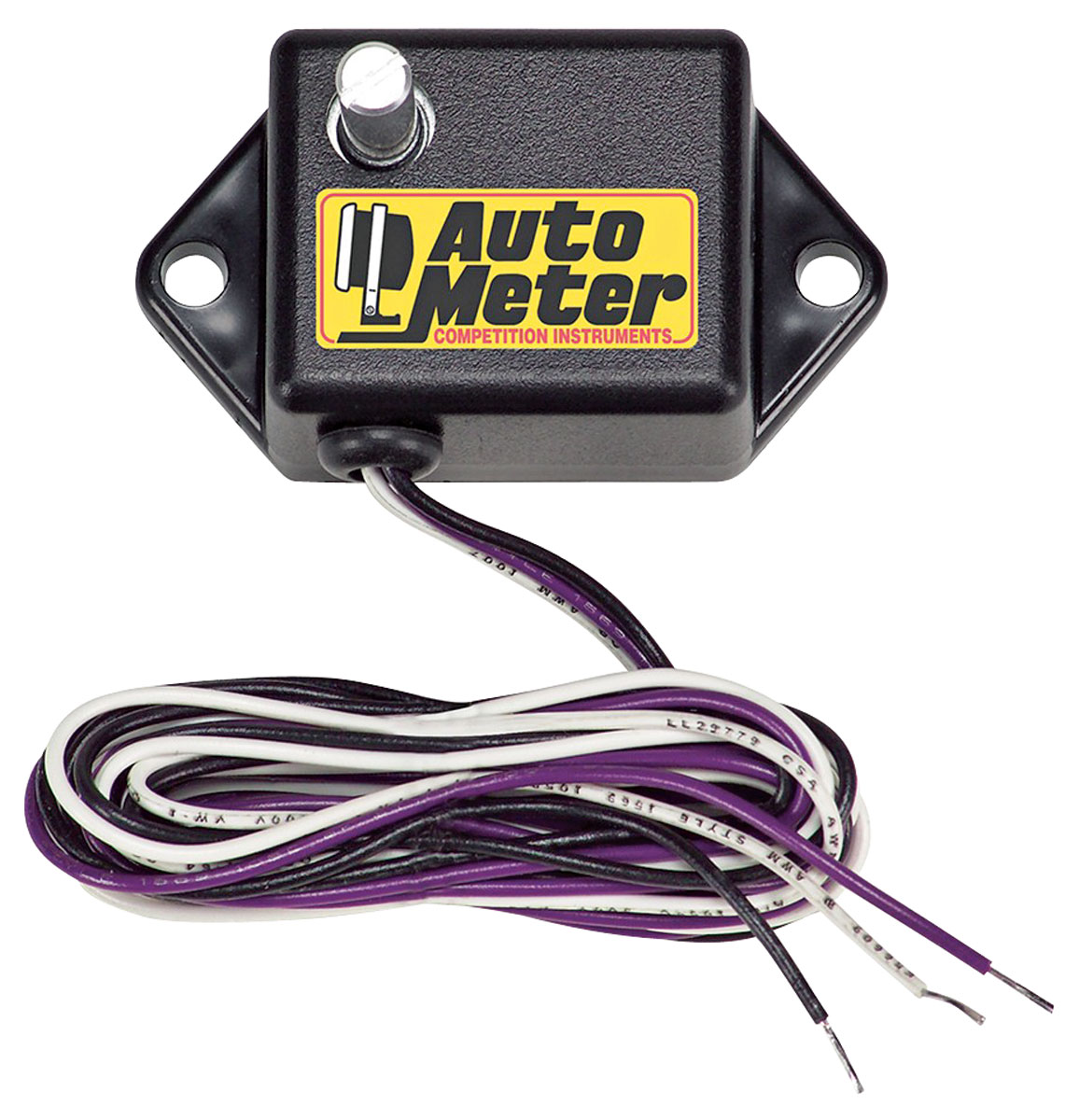

This AutoMeter® dimming module controls the LED lighting in up to six compatible instruments independently of the original dash-light dimmer. The separate circuit provides adjustable brightness when the factory dimmer is not suitable for the LED gauges. Its black composite housing measures 2.380 x 1.250 x 0.750 inches, with a total height of 1.375 inches from the case bottom to the control-shaft tip. A 0.250-inch control shaft and two 0.187-inch mounting holes spaced 2 inches apart provide the control and mounting connections.
• Controls up to six AutoMeter LED-lit instruments
• Dimming circuit independent of the original dash lighting
• Black composite case: 2.380 x 1.250 x 0.750 inches
• 1.375-inch overall height to shaft tip
• 0.250-inch control shaft
• Two 0.187-inch mounting holes on 2-inch centers
Notes
- Includes a 4 ft. wiring harness.
- Knob is not included.
- This item is not eligible for any further discounts or promotional pricing.
