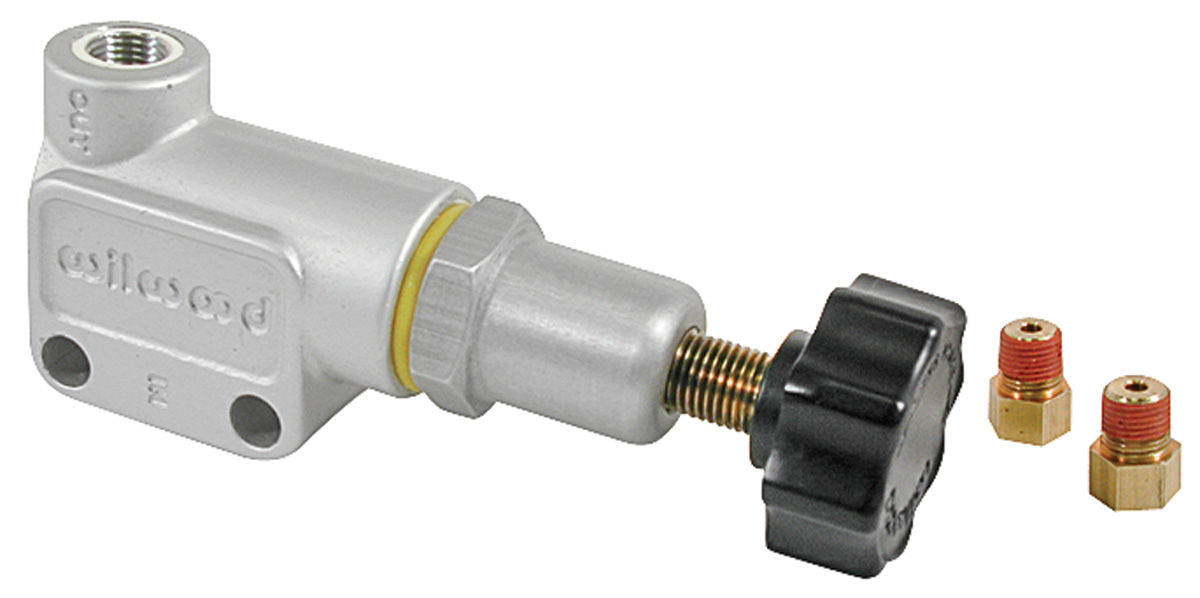

Adjustable Brake Proportioning Valve, Knob Style by Wilwood®
Fine-thread adjustment controls pressure in the regulated brake circuit.
This compact proportioning valve uses a fine-thread knob to tune brake pressure. Its forged body has one inlet and one outlet, both 1/8-27 NPT. Two included adapters convert the ports to 3/8-24 female inverted flare for compatible 3/16-inch brake tubing. The manufacturer specifies a 150–1,200 psi adjustment range and up to 57% pressure reduction.
• Fine-thread pressure adjustment knob
• Single inlet and single outlet
• 1/8-27 NPT valve ports
• 3/8-24 inverted-flare adapters included
• 150–1,200 psi adjustment range
• Up to 57% pressure reduction
