1966 Bonneville/Catalina/Grand Prix Power Drum to Disc Brake Conversion Line Kit
Preformed brake lines for 1966 Pontiac power drum to disc conversions with a dual master cylinder.
Designed for the 1966 Pontiac Bonneville, Catalina and Grand Prix, this brake conversion line kit provides the necessary hydraulic connections when upgrading from a power drum brake system to a disc brake configuration with a dual master cylinder. The preformed hard lines connect the master cylinder to the proportioning valve and the proportioning valve to the existing frame-mounted distribution block, eliminating the need to fabricate these connections from bulk tubing. Available in original-material steel for a factory-style appearance or stainless steel for enhanced corrosion resistance, this kit offers a convenient solution for completing a disc brake conversion while maintaining organized brake line routing.

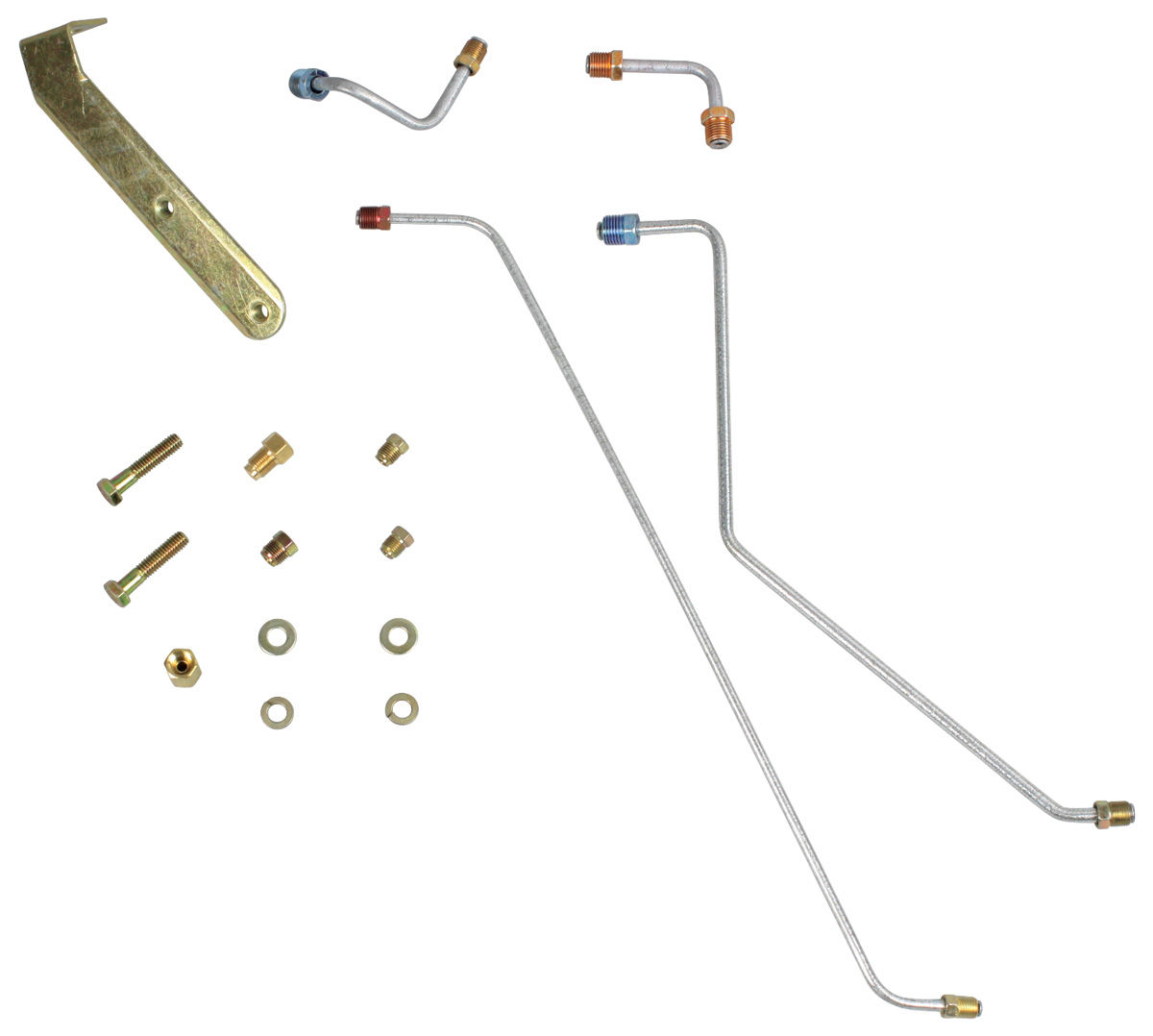

Each kit includes two lines running from the master cylinder to the proportioning valve, two additional lines connecting the proportioning valve to the frame-mounted distribution block, a proportioning valve mounting bracket, plugs and unions. The preformed configuration helps simplify installation and provides the necessary plumbing to integrate compatible disc brake components into the existing hydraulic system. Whether upgrading an original power drum brake vehicle or completing an ongoing brake system conversion, these lines provide the connections needed between the master cylinder, proportioning valve and distribution block. The proportioning valve, master cylinder and other disc brake conversion components are not identified as included and should be verified separately.
Features
• Fits the 1966 Pontiac Bonneville, Catalina and Grand Prix
• Designed for power drum to disc brake conversions
• Configured for installations using a dual master cylinder
• Includes four preformed brake hard lines
• Two lines connect the master cylinder to the proportioning valve
• Two lines connect the proportioning valve to the frame-mounted distribution block
• Includes proportioning valve mounting bracket
• Includes plugs and unions
• Available in original-material steel or stainless steel
• Stainless steel option provides enhanced corrosion resistance
• Preformed configuration reduces custom tube bending and fabrication
• Provides organized routing for converted brake hydraulic connections
• Designed for use with compatible disc brake conversion components
