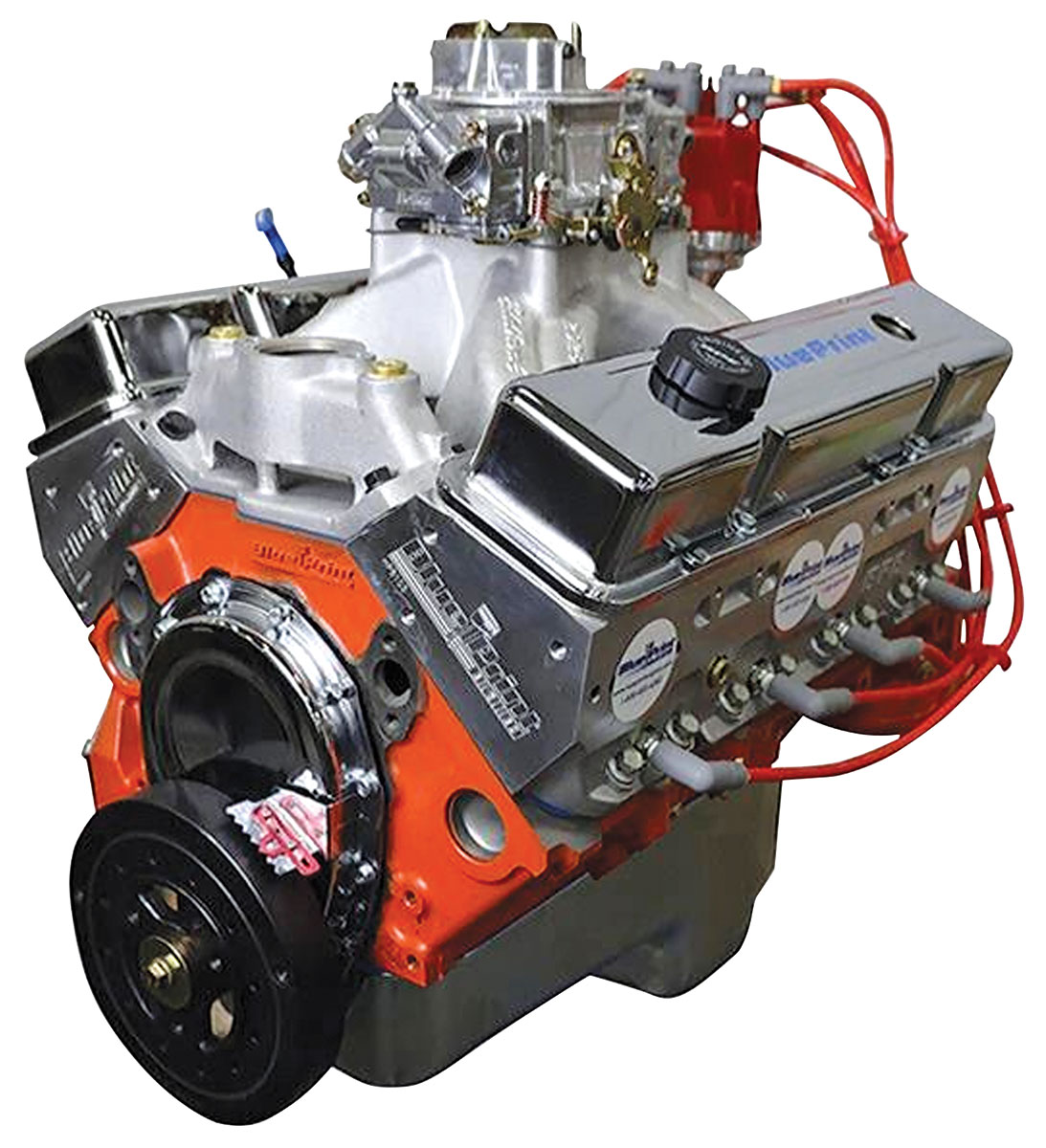

Crate Engine, BluePrint SB 427 ProSeries Stroker, Base Dressed Long Block, w/Crb

427ci Pro Series Base-Dressed Carbureted Engine by BluePrint Engines®

540-hp / 535 lb-ft core uses forged 4.00-inch crank and forged pistons by BluePrint Engines®.

BluePrint Engines®' 427ci Small Block-Compatible Pro Series Base-Dressed Carbureted is rated at 540 hp and 535 lb-ft with 10.0:1 compression. It combines forged 4.00-inch-stroke crankshaft, forged pistons, 64cc/220cc-runner aluminum heads and hydraulic-roller camshaft (.577/.577 lift; 240/248° @ .050, 112° LSA). Base-dressed carbureted configuration adds intake/carburetion to the 540-hp Pro Series stroker core.

Additional Technical Specifications • HP & Torque: 540 HP / 535 FT LBS • Compression Ratio: 10.0:1 • Hydraulic Roller Cam Block: • NEW BluePrint Cast Iron Block • Manufactured and Machined in the USA! • 4-Bolt Main • 4.125" Bore • 1-Piece Rear Main Seal • Mech fuel pump provision: Yes • Passenger Side Dipstick • Drilled and tapped for clutch linkage Rotating Assembly: • 4.000" Stroke • Forged 6.000" connecting rods • Internal Front/ Internal Rear Cylinder Heads: • BluePrint Aluminum Cylinder Heads • 64cc chamber • 2.08" intake/1.60" exhaust valves • 220cc intake/67cc exhaust runners Cam Specs: • Cam Type: Roller • .577 Intake .577 Exhaust • 240 Intake / 248 Exhaust duration • @ .050 - 112-degree lobe separation Ignition Timing: • Initial timing - 10-16° and Total timing 32-34° Also Includes: • Valve covers, oil pan and timing cover • Harmonic balancer • 850 cfm Carburetor • Distributor • Intake Manifold • Spark Plugs • Spark Plug Wires
