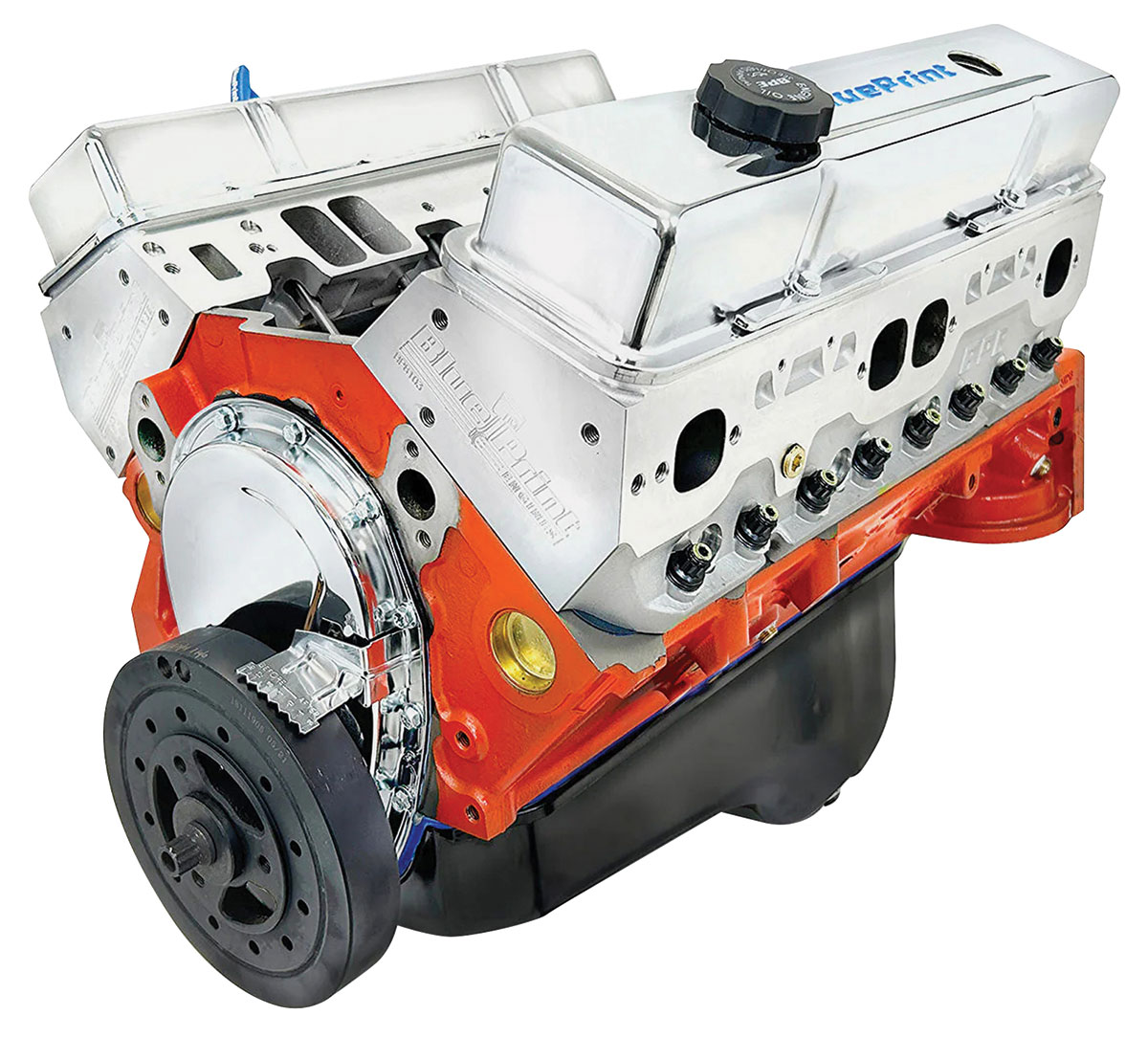

Crate Engine, BluePrint SB 400ci, Long Block, Power Adder Ready

400ci Small Block Power-Adder Long Block by BluePrint Engines®

511-hp / 480 lb-ft core uses forged 3.75-inch crank and forged pistons by BluePrint Engines®.

BluePrint Engines®' 400ci Small Block Power-Adder Long Block is rated at 511 hp and 480 lb-ft with 9.5:1 compression. It combines forged 3.75-inch-stroke crankshaft, forged pistons, aluminum cylinder heads and hydraulic-roller camshaft (.555/.577 lift; 236/248° @ .050, 113° LSA). 9.5:1 compression with forged crank, 6.0-inch rods and forged pistons provides the power-adder-oriented foundation; induction is selected separately.

Additional Technical Specifications • HP & Torque: 511 HP / 480 FT LBS • Compression Ratio: 9.5:1 • Hydraulic Roller Cam Block: • NEW BluePrint Cast Iron Block • Manufactured and Machined in the USA! • 4-Bolt Main • 4.125" Bore • 1-Piece Rear Main Seal • Mech fuel pump provision: Yes • Passenger Side Dipstick • Drilled and tapped for clutch linkage Rotating Assembly: • 3.750" Stroke • Forged H-beam 6.000" connecting rods • Internal Front/ External Rear • Dual Keyway Damper installed Cylinder Heads: • 64cc chamber • 2.08" intake/1.60" exhaust valves • 220cc intake/67cc exhaust runners Cam Specs: • Cam Type: Roller • .555 Intake .577 Exhaust • 236 Intake / 248 Exhaust duration • @ .050 - 113 ° lobe separation • 1.6 Roller rockers Ignition Timing: • 10-16° inital and total timing 32-34° at 3500 RPM Also Includes: • Valve covers, oil pan and timing cover • Dyno test results shipped with engine Warranty: • 30 month / 50,000 mile Notes: • NEW BluePrint block manufactured and machined in the USA! • This engine is designed to be capable of running power adders - turbo chargers, Nitrous oxide, superchargers, blowers etc. • Built with a Dual Keyway crankshaft. Balancer included. • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
