Crate Engine, BluePrint LS376 Pro Series, Deluxe, w/Frnt Drv, w/EFI/Supercharger

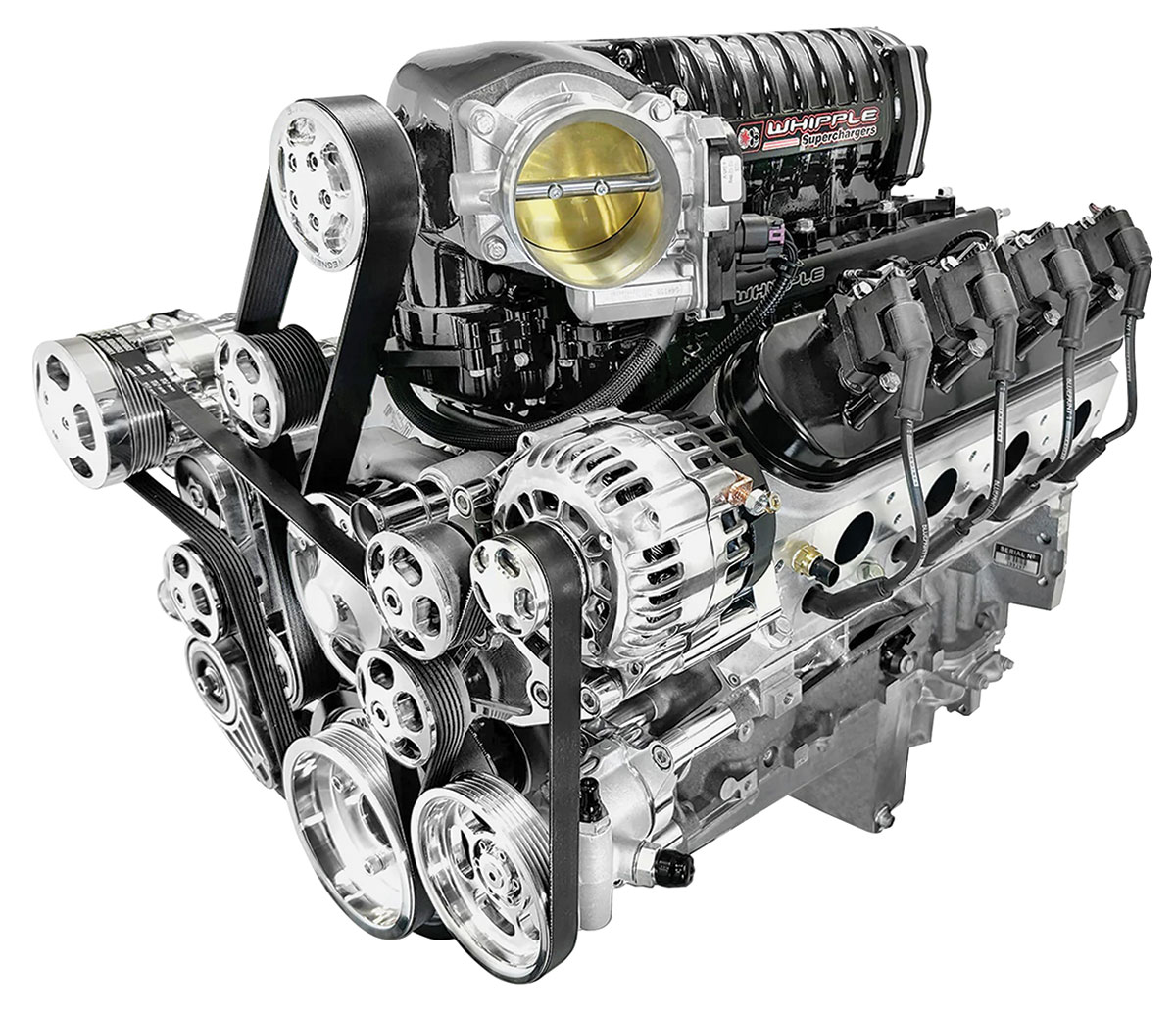

LS376 Supercharged Deluxe EFI Engine with Front Drive by BluePrint Engines®

700-hp / 640 lb-ft core uses forged crankshaft and forged pistons by BluePrint Engines®.

BluePrint Engines®' LS376 Pro Series Supercharged Deluxe is rated at 700 hp and 640 lb-ft with 9.5:1 compression. It combines forged crankshaft, forged pistons, LS3-style aluminum heads and hydraulic-roller camshaft (.612/.585 lift; 225/238° @ .050). Magnuson TVS2650 2.65L supercharger, Holley Terminator X Max engine management and front accessory drive are part of this 700-hp deluxe package.

Additional Technical Specifications Description: • Horsepower & Torque: 700 Horsepower / 640 FT LBS • Compression Ratio: 9.5:1 • BluePrint Engines Hydraulic Roller Cam • Nodular Iron Crankshaft Block: • BluePrint Engines High Strength (LSX Style) Cast Iron Block • Increased Deck Thickness and Strength Webbing • Utilizes OEM LS3 Front and Rear Covers • Improved Water Jacket Design • Extended Cylinder Skirt • 1-Piece Rear Main Sea • Priority Main Oiling • 4.070" Bore • 6-Bolt Main Rotating Assembly: • 3.622" Stroke • 6.125" Connecting Rods w/ 150,000 PSI Bolts • Internally Balanced Front and Rear Cylinder Heads: • BluePrint Aluminum Cylinder Heads - PS8015 • 70cc Chamber • 2.165" Intake / 1.600" Exhaust Valves • 259cc Intake / 102cc Exhaust Runners Cam Specs: • Hydraulic Roller Cam • .612 Intake / .585 Exhaust Lift • 225 Intake / 238 Exhaust Duration • @.050-113 Degree Lobe Separation • Holley Terminator X Max Specific Features and Benefits: • Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate • On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning • Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors • Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed • 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more • Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup • Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays • Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine. Also Includes: • Front Accessory Drive with LT1 Style 150-amp Alternator, LT1 Style Water Pump, Type II Power Steering Pump with Baffled Edges, and Compact Style A/C Compressor • Low Profile Rear Sump Oil Pan - BPP81073 • All Sensors Required for Engine to Run • DBW Throttle Body - BPP12191019 • Spark Plugs & Wires • Harmonic Balancer • Timing Cover • Valve Covers • Coil Packs Notes: • Not for use in pollution-controlled vehicles. • BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
