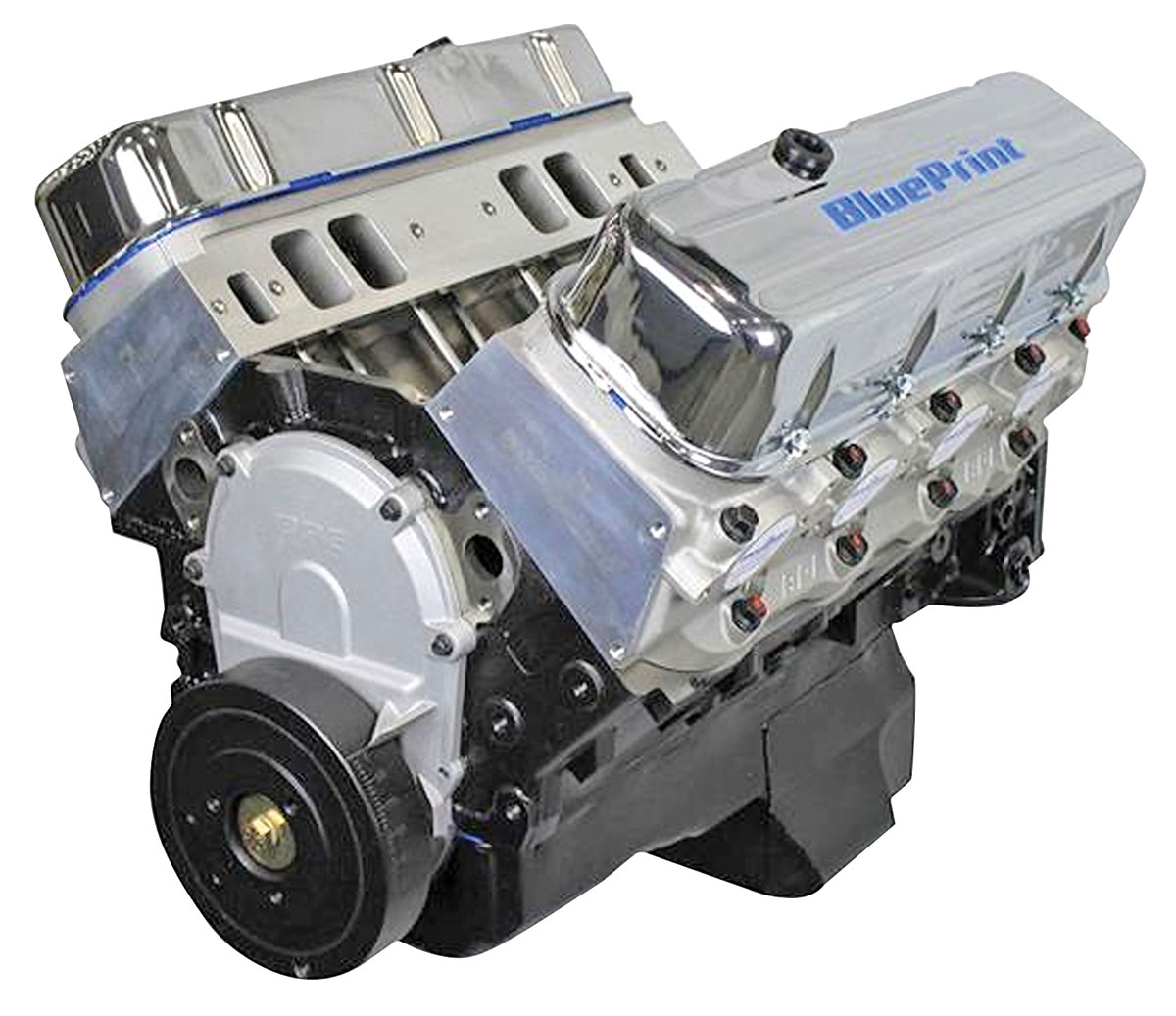

Crate Engine, BluePrint BB 454ci Cruiser, Long Block

454ci Big Block Cruiser Long-Block Crate Engine by BluePrint Engines®

460-hp / 479 lb-ft core uses cast 4.000-inch crank and hypereutectic pistons by BluePrint Engines®.

BluePrint Engines®' 454ci Big Block Cruiser Long Block is rated at 460 hp and 479 lb-ft with 9.85:1 compression. It combines cast 4.000-inch-stroke crankshaft, hypereutectic pistons, 119cc/316cc-runner aluminum heads and hydraulic-roller camshaft (.501/.510 lift; 216/228° @ .050, 112° LSA). Long-block configuration leaves induction and front accessory drive to the installer; BluePrint specifies a cast—not forged—4.000-inch crankshaft for this 454 Cruiser.

Additional Technical Specifications • HP & Torque: 460 HP / 479 FT LBS • Compression Ratio: 9.85 to 1 • Hydraulic Roller Cam Block: • NEW BluePrint Cast Iron Block, 454 BBC • Manufactured and Machined in the USA! • 4-Bolt Main • 4.000" Stroke, 4.250" Bore • 1-Piece Rear Main Seal • Mech fuel pump provision: Yes • Standard Deck Rotating Assembly: • New BluePrint Steel Crankshaft • OEM type 6.135" connecting rods w/ 150,000 psi bolts • External Cylinder Heads: • BluePrint Aluminum Cylinder Heads • 119cc chamber • 2.30" intake/1.88" exhaust valves • 316cc intake/124cc exhaust runners • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting. • Must verify header/exhaust clearance Cam Specs: • Cam Type: Roller • .501 Intake .510 Exhaust • 216 Intake / 228 Exhaust duration • @ .050 - 112 degree lobe separation Ignition Timing: • Initial timing - 10-16° and Total timing 32-34° Also Includes: • Sniper EFI System or Holley 750cfm Carburetor – Manual Choke • Intake Manifold single plane, satin aluminum • Pro Billet Distributor • Harmonic balancer • Valve covers, oil pan and timing cover • Installed polished complete front accessory drive system with A/C, P/S, WP, all belts and pulleys. • Dyno test results shipped with engine Warranty: • 30 month / 50,000 mile Notes: • This engine is an excellent cruiser and daily driver engine. This engine makes up to 15 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel. Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987.
