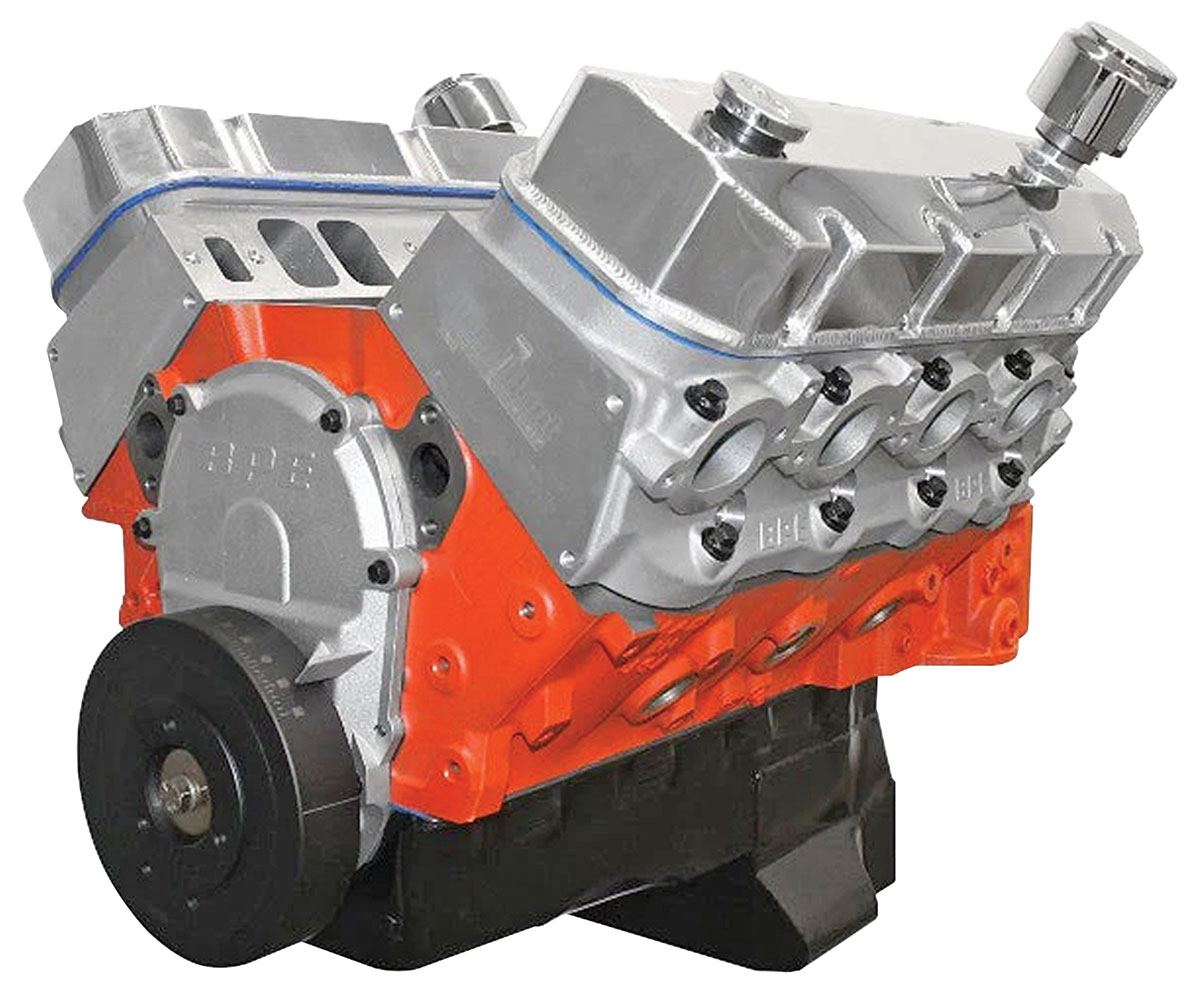

Crate Engine, BluePrint 632ci Eliminator, Long Block, Power Adder Ready

632ci Eliminator Power-Adder Long Block by BluePrint Engines®

775-hp / 750 lb-ft engine uses a performance rotating assembly and hydraulic-roller camshaft.

BluePrint Engines®' 632ci Eliminator Power-Adder Long Block is rated at 775 hp and 750 lb-ft with 9.6:1 compression. It combines forged 4.75-inch-stroke crankshaft, Mahle forged pistons, 119cc/358cc-runner aluminum heads with raised exhaust ports and hydraulic-roller camshaft (.698/.698 lift; 272/282° @ .050, 110° LSA). Tall-deck 632 uses 9.6:1 compression, forged 4.75-inch rotating assembly and high-flow raised-port heads as a power-adder foundation.

Additional Technical Specifications • HP & Torque: 775 HP / 750 FT LBS Naturally Aspirated • Compression Ratio: 9.6:1 • Hydraulic Roller Cam • Forged Crank Block: • NEW BluePrint Cast Iron Block • Manufactured and Machined in the USA! • 4-Bolt Main • 4.600" Bore • 1-Piece Rear Main Seal • Tall Deck (Cyl Deck is Approx .400 taller / wider than oem block) Rotating Assembly: • 4.750" Stroke • Forged H-beam 6.635" connecting rods • ARP 2000 series bolts • Mahle Motorsports Forged Pistons • Precision Gap, Power Adder Piston Rings • Internally balanced Cylinder Heads: • BluePrint Aluminum Cylinder Heads • 119cc chamber • 2.30" intake/1.88" exhaust valves • 358cc intake/125cc exhaust runners • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting. • MLS Head gaskets Cam Specs: • Cam Type: Roller • 272 / 282 duration @ .050 - 110 degree LSA Also Includes: • Valve covers, oil pan and timing cover • Dyno test results shipped with engine • SFI Rated Dual Keyway 8 in. Balancer Warranty: • 12 Month Replacement Guarantee • If during the first 12 months after installation your engine fails for any reason, you can return that engine to BluePrint Engines and we will rework your engine for the cost of parts required. All labor to pull the engine, freight to BluePrint Engines and the cost of Parts, which BluePrint Engines deems necessary to rework the engine, are the responsibility of purchaser. The costs to determine what needs replaced, order the parts, recondition/assemble the engine, dyno test the refreshed engine and ship the product back to the purchaser will be covered by BluePrint Engines. Notes: • Built and designed for Power Adder applications. Dual keyway crankshaft included. • This engine features .300 raised exhaust ports and .400 deck height increase over OEM. • Must verify clearance of exhaust, shift linkage, steering components etc. before ordering. • Harmonic balancer is NOT included on this engine
