Crate Engine, BluePrint 572ci ProSeries Stroker, Base Dressed Long Block, w/Carb

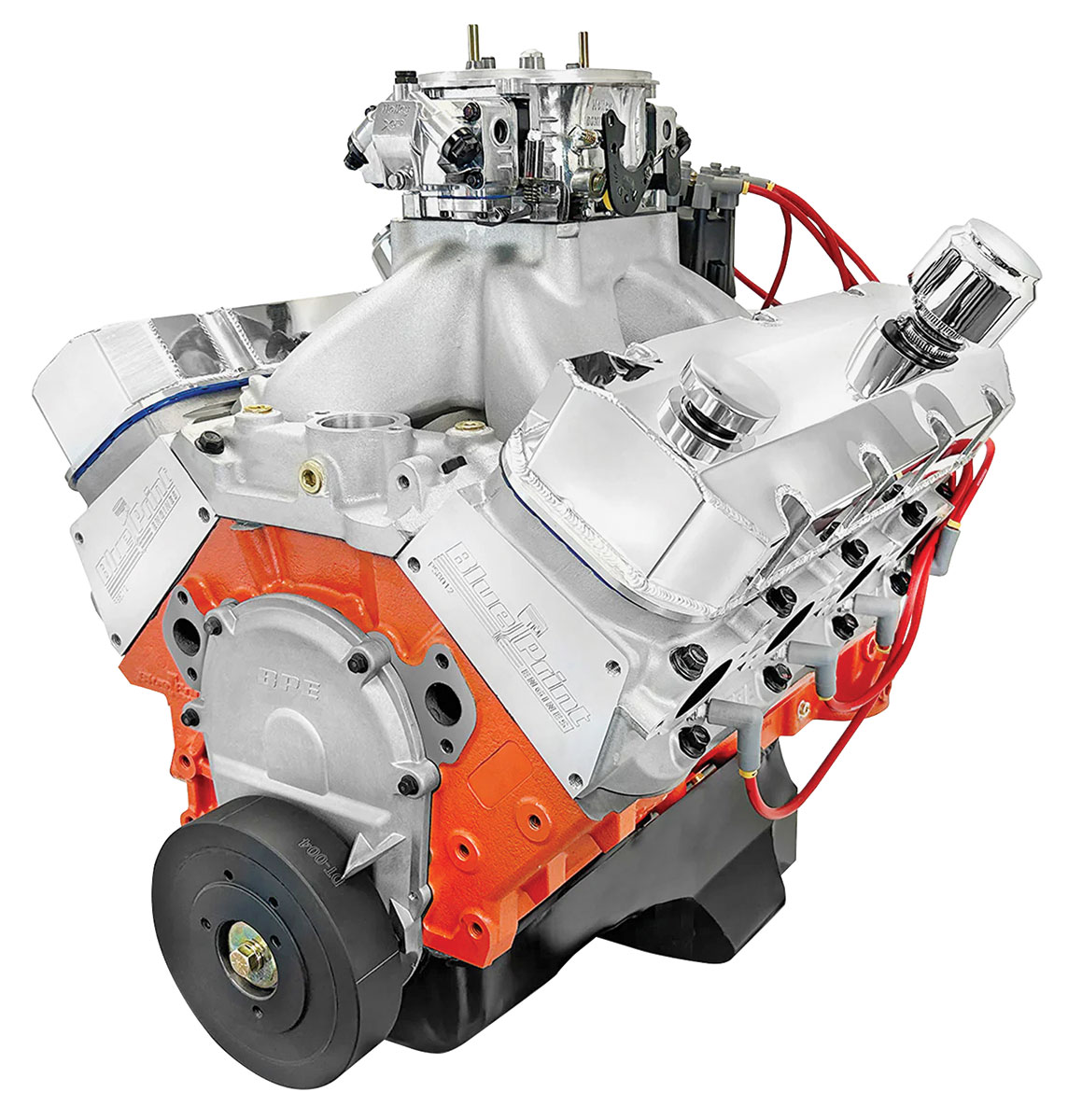

572ci Pro Series Base-Dressed Carbureted Engine by BluePrint Engines®

750-hp / 690 lb-ft core uses forged 4.50-inch crank and forged pistons by BluePrint Engines®.

BluePrint Engines®' 572ci Pro Series Stroker Base-Dressed Carbureted is rated at 750 hp and 690 lb-ft with 10.1:1 compression. It combines forged 4.50-inch-stroke crankshaft, forged pistons, 119cc/358cc-runner aluminum heads and hydraulic-roller camshaft (.698/.698 lift; 272/282° @ .050). Base-dressed carbureted configuration adds intake/carburetion to the 750-hp tall-deck stroker core.

Additional Technical Specifications • HP & Torque: 750 HP / 690 FT LBS • Compression Ratio: 10.0:1 • Hydraulic Roller Cam Block: • NEW BluePrint Cast Iron Block • Manufactured and Machined in the USA! • 4-Bolt Main • 4.500" Bore • 1-Piece Rear Main Seal • Mech fuel pump provision: Yes • Tall Deck (Cyl Deck is Approx .400 taller / wider than oem block) Rotating Assembly: • 4.500" Stroke • Forged H-beam 6.535" connecting rods • Internal Cylinder Heads: • BluePrint Aluminum Cylinder Heads -PS8012 • 119cc chamber • 2.30" intake/1.88" exhaust valves • 358cc intake/125cc exhaust runners • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting. • Must verify clearance of exhaust/headers Cam Specs: • Cam Type: Roller • .698 Intake .698 Exhaust • 272 Intake / 282 Exhaust duration • @ .050 - 110-degree lobe separation Also Includes: • Valve covers, oil pan and timing cover • Harmonic balancer • Intake Manifold Carburetor: • Distributor • Plugs and wires Notes: • Not for use in pollution-controlled vehicles. • This engine features .300 raised exhaust ports and .400 deck height increase over OEM. • Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.
