Crate Engine, BluePrint 496 Stroker, Long Block, Power Adder Ready

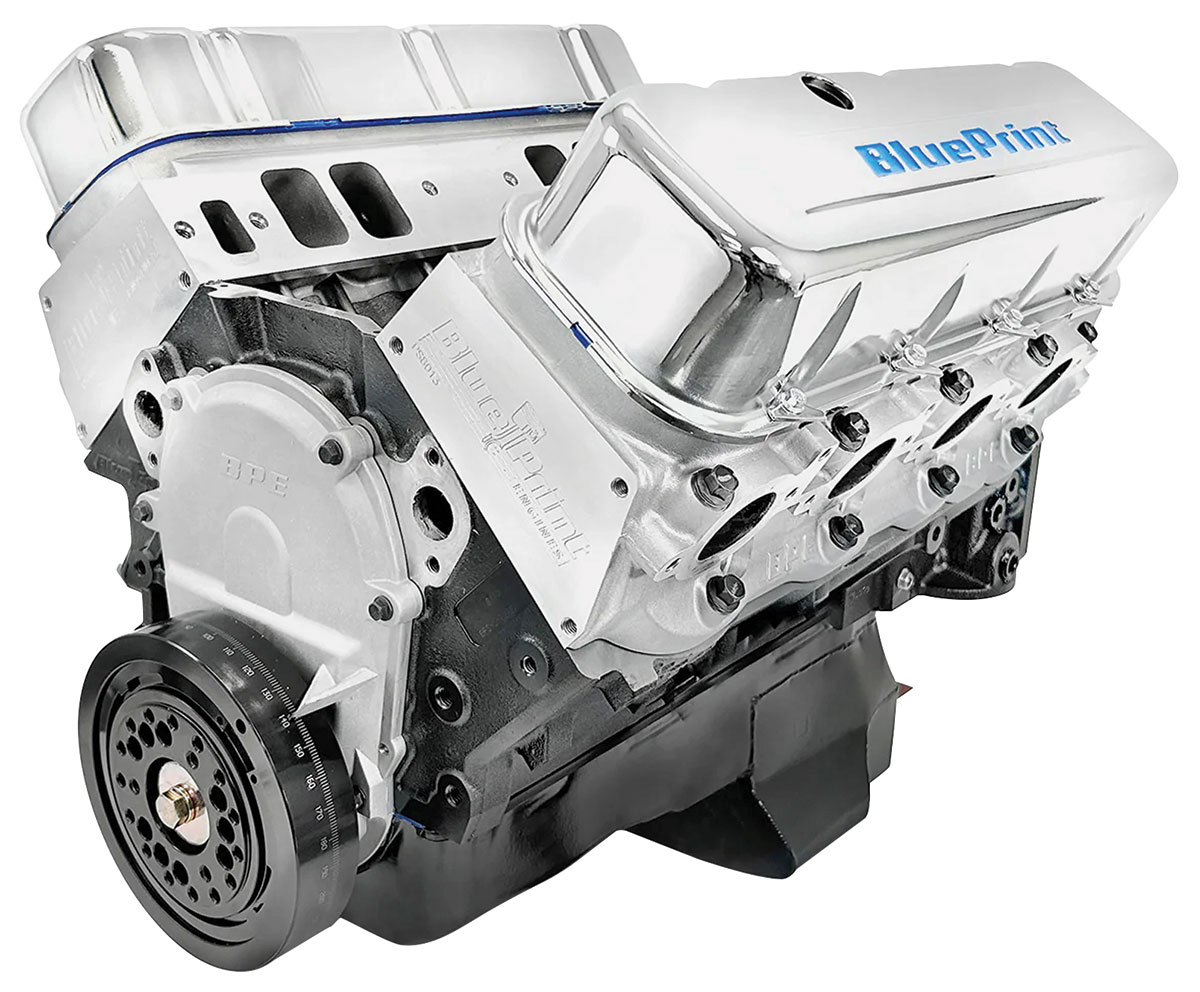

496ci Stroker Power-Adder Long Block by BluePrint Engines®

561-hp / 512 lb-ft core uses forged 4.25-inch crank and forged pistons by BluePrint Engines®.

BluePrint Engines®' 496ci Stroker Power-Adder Long Block is rated at 561 hp and 512 lb-ft with 8.8:1 compression. It combines forged 4.25-inch-stroke crankshaft, forged pistons, 119cc aluminum heads with raised exhaust ports and hydraulic-roller camshaft (.540/.560 lift; 242/248° @ .050, 114° LSA). 8.8:1 compression, forged crank/H-beam rods/pistons and power-adder cam make this the boost/nitrous-oriented 496 long block.

Additional Technical Specifications • HP & Torque: 561 HP / 512 FT LBS • Compression Ratio: 8.8:1 Block: • NEW BluePrint Cast Iron Block • Manufactured and Machined in the USA! • 4-Bolt Main • 4.500" Bore • 1-Piece Rear Main Seal • Mech fuel pump provision: Yes • Standard Deck Rotating Assembly: • New BluePrint Forged Crankshaft. can be custom built with dual crank key. • 4.250" Stroke • Forged H-beam 6.135" connecting rods • Internal Cylinder Heads: • BluePrint Aluminum Cylinder Heads • 119cc chamber • 2.30" intake/1.88" exhaust valves • 316cc intake/124cc exhaust runners • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting. • Must verify header/exhaust clearance Cam Specs: • .540 Intake .560 Exhaust • 242 Intake / 248 Exhaust duration • @ .050 - 114 degree lobe separation Ignition Timing: • 10-16° and total timing 32-34° Also Includes: • Valve covers, oil pan and timing cover • Dyno test results shipped with engine Warranty: • 30 month / 50,000 mile Notes: • Built to accept Power Adders - Turbo chargers, superchargers, NOS etc. • Built with Dual Keyway Crankshaft for Harmonic Balancer • SFI Harmonic Balancer included on engine
