Crate Engine, BluePrint 496 Stroker, Base Dressed Long Block

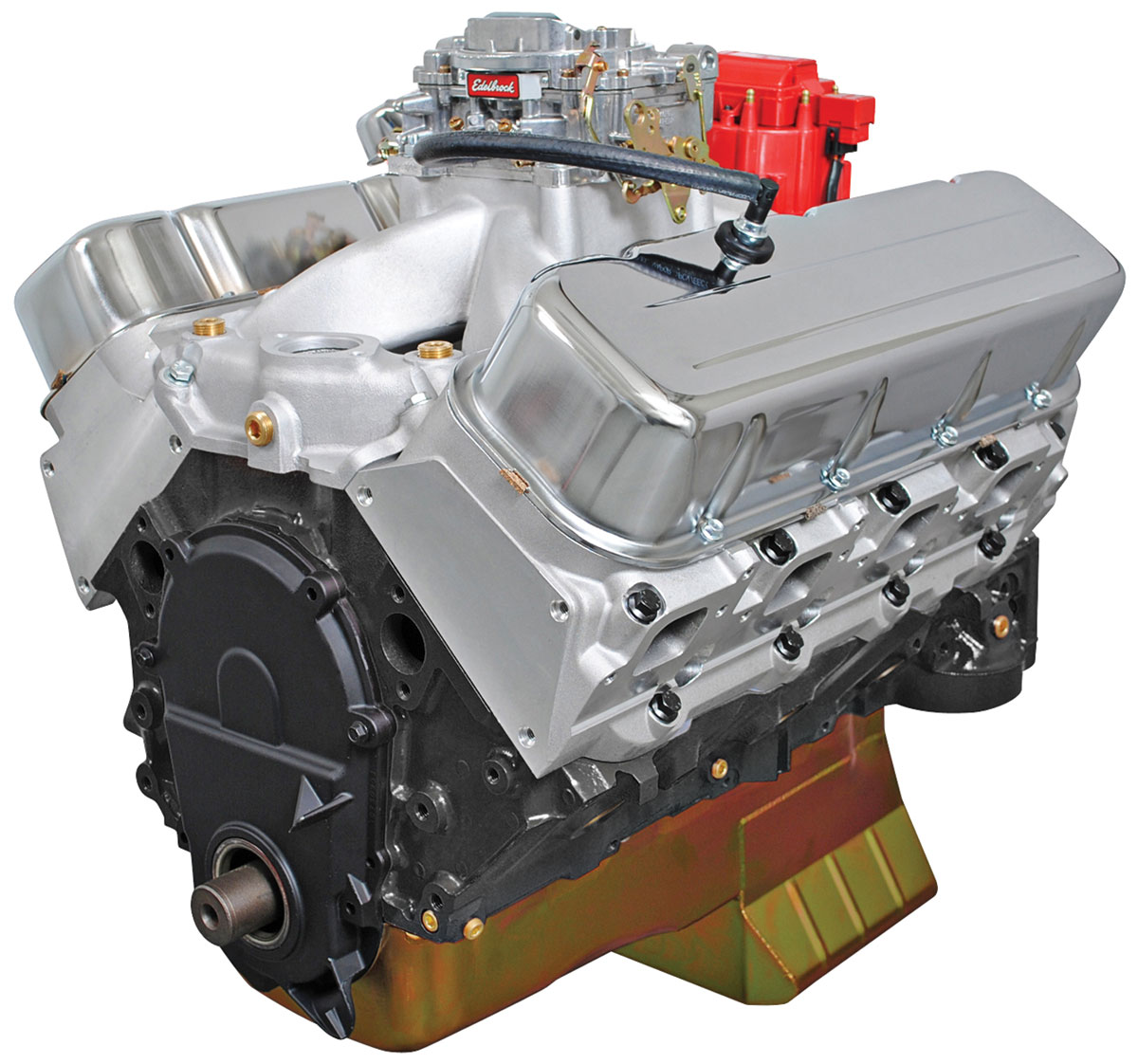

Chevrolet Big Block 496 Stroker Crate Engine by BluePrint Engines

600-hp 496 combines a forged 4.250-inch-stroke crank, aluminum heads and hydraulic roller valvetrain.

BluePrint Engines 496 stroker is a base-dressed Chevrolet-compatible Big Block rated at 600 hp and 568 lb-ft of torque. It uses a new four-bolt cast-iron block, forged-steel 4.250-inch-stroke crankshaft, hypereutectic pistons, 119cc aluminum heads and hydraulic-roller camshaft. The carbureted version uses a single-plane intake with an 850-cfm Holley carburetor and is dyno tested before shipment.

Additional Technical Specifications • HP & Torque: 600 HP / 568 FT LBS • Compression Ratio: 10:1 • Hydraulic Roller Cam Block: • NEW BluePrint Cast Iron Block, 454 BBC • Manufactured and Machined in the USA! • 4-Bolt Main • 4.250" Stroke, Bored .060" over • 1-Piece Rear Main Seal • Mech fuel pump provision: Yes • Standard Deck Rotating Assembly: • OEM type 6.135" connecting rods w/ 150,000 psi bolts • External Cylinder Heads: • BluePrint Aluminum Cylinder Heads • 119cc chamber • 2.30" intake/1.88" exhaust valves • 316cc intake/124cc exhaust runners • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting. • Must verify header/exhaust clearance Cam Specs: • Cam Type: Roller • .647 Intake .647 Exhaust • 248 Intake / 254 Exhaust duration • @ .050 - 112 degree lobe separation Ignition Timing: • 10-16° inital and total timing 32-34° at 3500 RPM Also Includes: • Intake Manifold single plane, satin aluminum • Holley 850cfm Carburetor – Manual Choke or Holley Sniper EFI System • Valve covers, oil pan and timing cover • Dyno test results shipped with engine Warranty: • 30 month / 50,000 mile Notes: • NEW BluePrint 454ci block manufactured and machined in the USA!
