Crate Engine, BluePrint 383 Stroker, Short Block Plus, 432HP/450 ft-Lbs

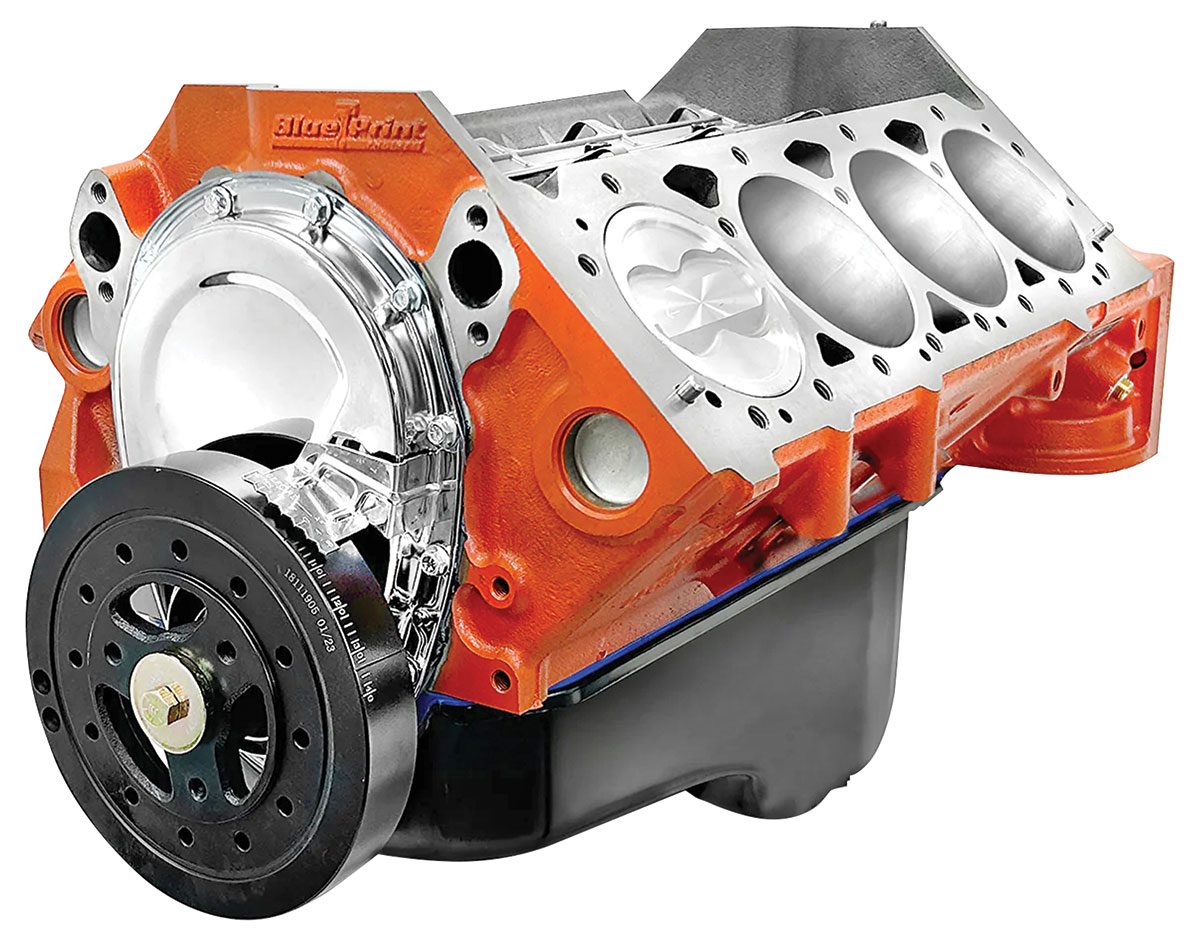

383ci Power-Adder Short Block Plus by BluePrint Engines®

432-hp / 450 lb-ft core uses forged crankshaft and forged pistons by BluePrint Engines®.

BluePrint Engines®' 383ci Power-Adder Short Block Plus is rated at 432 hp and 450 lb-ft with 9.5:1 compression. It combines forged crankshaft, forged pistons and hydraulic-roller camshaft. Power-adder Short Block Plus uses 9.5:1 compression with forged crankshaft and pistons plus hydraulic-roller cam; cylinder heads and induction are not included.

Additional Technical Specifications • HP & Torque: 432 HP / 450 FT LBS • Compression Ratio: 9.5:1 Block: • 4 Bolt main • 1 piece rear main seal. • 4.00" bore • Passenger side dipstick • Align honed main bearing bore • Cylinders honed on computer-controlled machine to within .0002 straightness and roundness • Cylinders are sonic tested for thickness Rotating Assembly: • New forged crankshaft, 3.75" stroke • Forged pistons, 18CC Dish • Forged rods with 150,000 PSI bolts • Hastings moly rings • Melling high volume oil pump • Heavy duty double roller timing set • Harmonic balancer • CAM SPECS W 1.5 ROCKER RATIO: • Cam Type: Hyd Roller • .495 Intake .502 Exhaust • 220 Intake / 224 Exhaust duration • @ .050 - 114 degree lobe separation Ignition Timing: • 34 degrees total (at 3500 RPM) Also Includes: • Oil pan and timing cover Notes: • Bore and stroke combination makes this crate engine a 377ci displacement • This engine requires a non-weighted 8" harmonic balancer (included), and late 350ci weighted flexplate/flywheel. • The HP & Torque numbers were derived from dyno testing with a 750cfm carb, and with H8002K cylinder heads installed.
