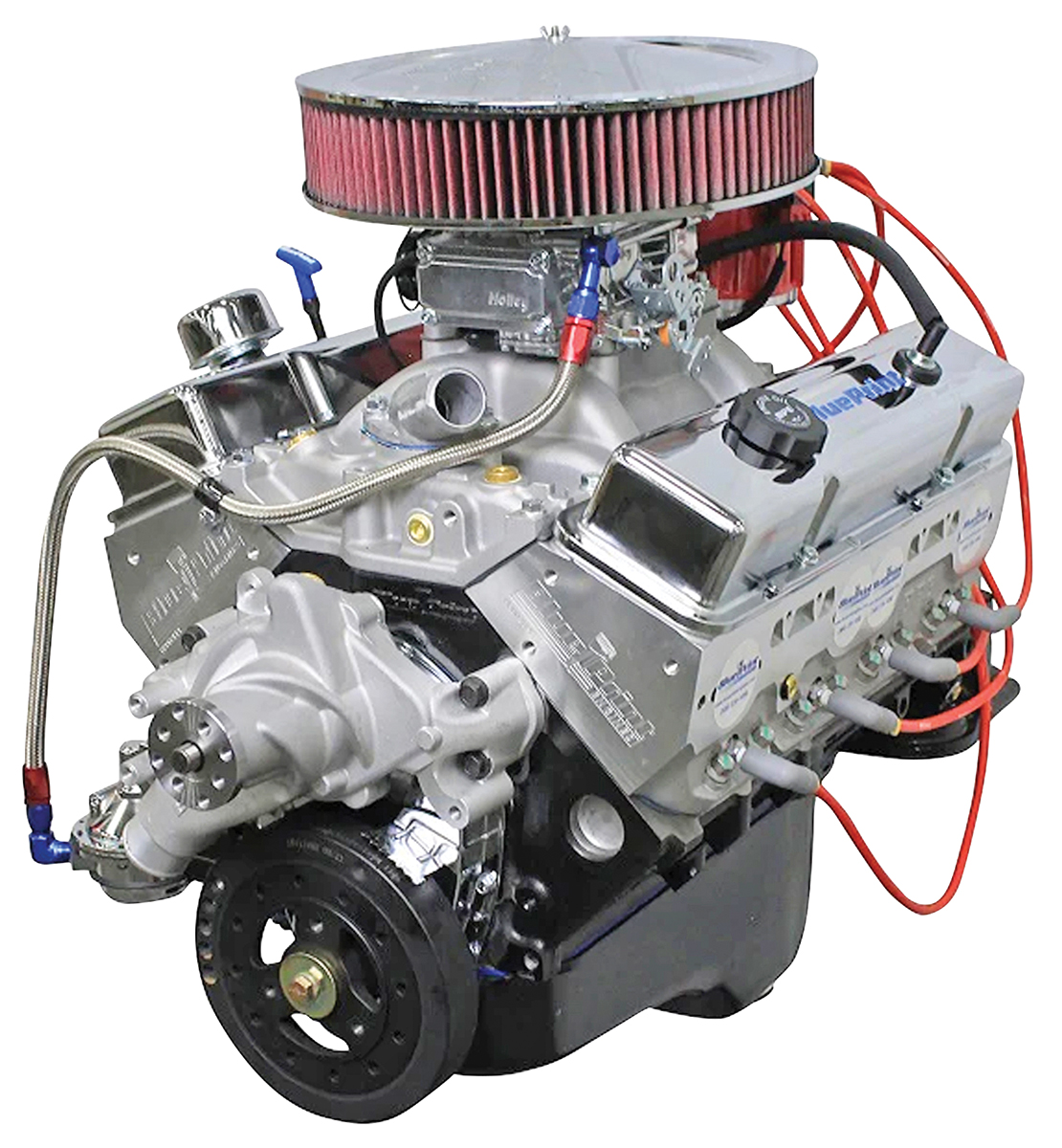

Crate Engine, BluePrint 350ci Cruiser, Deluxe Dressed Long Block

350ci Cruiser Deluxe-Dressed Crate Engine by BluePrint Engines®

341-hp / 371 lb-ft core uses cast 3.48-inch crank and hypereutectic pistons by BluePrint Engines®.

BluePrint Engines®' 350ci Cruiser Deluxe Dressed is rated at 341 hp and 371 lb-ft with 9.2:1 compression. It combines cast 3.48-inch-stroke crankshaft, hypereutectic pistons, 64cc H8002K aluminum heads and hydraulic-roller camshaft (.477/.471 lift; 202/212° @ .050, 115° LSA). Deluxe variants build on the dressed engine with front accessory-drive equipment; carbureted/EFI configuration varies by the selected configuration.

Additional Technical Specifications • HP & Torque: 341 HP / 371 FT LBS • Compression Ratio: 9.2:1 • Hydraulic Roller Cam • Cast Iron Crankshaft Block: • NEW BluePrint Cast Iron Block • Manufactured and Machined in the USA! • 4-Bolt Main • 4.000" Bore • 1-Piece Rear Main Seal • Mech fuel pump provision: Yes • Passenger Side Dipstick • Drilled and tapped for clutch linkage Rotating Assembly: • 3.480" Stroke • Forged 5.700" connecting rods • Internal Front/ External Rear engine balance Cylinder Heads: • BluePrint Aluminum Cylinder Heads • 64cc chamber • 2.02" intake/1.60" exhaust valves • 195cc intake/75cc exhaust runners Cam Specs: • Cam Type: Roller • .477 Intake .471 Exhaust • 202 Intake / 212 Exhaust duration • @ .050 - 115 degree lobe separation Ignition Timing: • 32 Degrees Total at 3500 RPM Also Includes: • Valve covers • Oil pan • Timing cover • Aluminum intake • HEI distributor • Spark plugs and wires • Holley 600 cfm carburetor w/electric choke and vacuum secondaries or Holley Sniper EFI • Mechanical fuel pump • Long water pump • Water Outlet and Thermostat • Dyno test results shipped with engine • Included on the "w/Black Front Drive" version only: • Front Accessory Drive with A/C Compressor, Alternator, and Power Steering Pump (Does not fit Corvette), tensioner, all pulleys, and belt Warranty: • 30 month / 50,000 mile Notes: • This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
