Air Flow Research

Cyl Heads, AFR Mongoose Street, LS1, 215/85cc, 65cc Chamber

Part# : CH35726
Mfg#: 1530
Sold As: Pair
Ship Size: Oversize 3
$2,516.99
List Price: $2,769.95
You Save $252.96

Color Variation

Due to variations in monitor settings, some colors on this page may appear slightly different from GM originals. In addition, due to color differences in the original GM dye lots, interior product colors may vary slightly.

Vehicle Specific View fitment for 62 models
Add To Wishlist

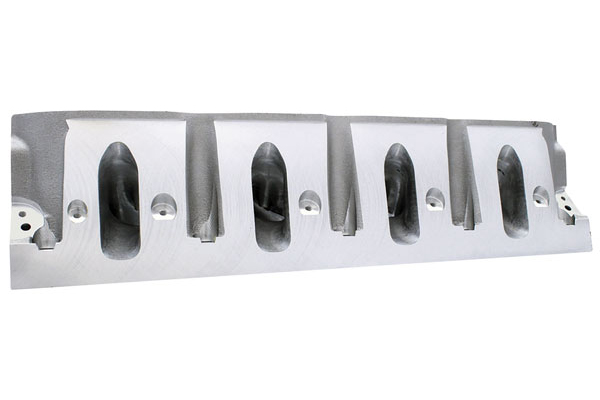

LS1 215cc Mongoose Street Heads by Air Flow Research®

Fully CNC-ported A356 Mongoose heads combine 215cc runners, a 65cc chamber and 5-angle valve job.

Air Flow Research® 215cc LS1 Mongoose heads use A356 aluminum castings with fully CNC-ported intake runners, exhaust ports and combustion chambers plus a Competition 5-angle valve job. Their high-velocity 215cc intake and 85cc exhaust ports are designed for moderate street and street/strip combinations up to 408 ci and about 6500 RPM. This version uses a 65cc chamber; assembled configurations use PAC Racing springs and titanium retainers. Sold as a pair.

• Air Flow Research® 215cc LS1 Mongoose series • 100% CNC-ported airflow surfaces • 215cc intake / 85cc exhaust ports • 65cc combustion chamber • Competition 5-angle valve job • Street/street-strip use up to 408ci; pair

Notes

  • GM rocker arms are not designed/engineered to accommodate aftermarket cams or higher spring pressures. At a minimum, AFR recommends using Bushing Trunion Kit on their LS1/LS3 heads. Without proper parts you will experience accelerated guide wear.
  • AFR recommends a minimum depth of .080" on the intake valve and .100" on the exhaust with radical clearance of .020" minimum around the perimeter of each valve. The valve pocket must also be addressed.
  • AFR valve spring installed high spec is +/- .015". To ease installation with 1.550" O.D or larger springs, 12 pt. head bolt or studs are recommended for extra clearance. Beveled or ground washer might be needed.
  • AFR heads come with proper guide clearance (.0012"-.0016" for most applications, boosted/nitrous applications might require additional clearance).
  • Check pushrod clearance with heads place on the block before final assembly, larger pushrods will not fit without clearancing and is not recommended since some areas are very thin. AFR recommends the use of .120" thick-wall pushrods.
  • If you're using a high volume or high pressure oil pump it can submerge the valve seals in oil causing smoke or oil consumption.
  • Flat or angle mills could affect flow numbers and might require a thicker intake gasket.
  • Shaft mount rockers might require additional clearance for proper pushrod fitment, does not clear the push rod area as the wall is .060" thick.
  • Use full roller rocker arms, roller tip rockers with stock style bodies are NOT recommended. NOTE10: LS bead locks and aftermarket bead locks are not interchangeable. GM made their bead lock radius and depth different. AFR bead locks are the sums as GM LS.
  • This item is not eligible for any further discounts or promotional pricing.
  • This item is Oversize 3, and is excluded from free ground shipping.
3
This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-pollution-controlled vehicles only. Learn More
We aim to provide accurate and complete product information. If you notice anything incorrect, missing, or unclear, please let us know.
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model Application Details
1982 Buick Grand National 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1984–1987 Buick Grand National 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1976–1987 Buick Regal 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1978–1987: 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1963–1976 Buick Riviera 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1961–1972 Buick Skylark 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1983–1986 Buick T-Type 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1938–1993 Cadillac 60 Special 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
2013–2019 Cadillac ATS 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1965–1976 Cadillac Calais 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
2003–2019 Cadillac CTS 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1959–2005 Cadillac DeVille 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1953–2002 Cadillac Eldorado 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1999–2000 Cadillac Escalade 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
2002–2023 Cadillac Escalade 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
2002–2013 Cadillac Escalade EXT 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1965–1996 Cadillac Fleetwood 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1936–1951 Cadillac Series 60 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1946–1964 Cadillac Series 60 Fleetwood
1936–1951 Cadillac Series 61 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1937–1976 Cadillac Series 62 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1936–1951 Cadillac Series 63 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1937–1938 Cadillac Series 65 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1936–1942 Cadillac Series 67 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1936–1937 Cadillac Series 70 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1940 Cadillac Series 72 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1936–1942 Cadillac Series 75 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1946–1964 Cadillac Series 75 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1946–1964 Cadillac Series 75 Fleetwood
1976–2004 Cadillac Seville 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
2005–2011 Cadillac STS 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
2004–2009 Cadillac XLR 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1947–1955 Chevrolet Advance Design
1969–1994 Chevrolet Blazer 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 Chevrolet C10 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 Chevrolet C20 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 Chevrolet C30 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1964–1977 Chevrolet Chevelle 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1969 Chevrolet Corvair 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1961–1965 Chevrolet Corvair 95 FC 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1959–1960 Chevrolet El Camino 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1964–1987 Chevrolet El Camino 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 Chevrolet K10 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 Chevrolet K20 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1977–1987 Chevrolet K30 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1978–1983 Chevrolet Malibu 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1997–2022 Chevrolet Malibu
1970–1988 Chevrolet Monte Carlo 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1995–2007 Chevrolet Monte Carlo 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1991 Chevrolet Suburban 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1955–1959 Chevrolet Task Force 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1955–1959 GMC Blue Chip 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 GMC C15/C1500 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 GMC C25/C2500 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 GMC C35/C3500 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1978–1987 GMC Caballero 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1970–1991 GMC Jimmy 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 GMC K15/K1500 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1987 GMC K25/K2500 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1977–1987 GMC K35/K3500 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1947–1955 GMC New Design 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1971–1977 GMC Sprint 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1960–1991 GMC Suburban
1961–1988 Oldsmobile Cutlass 1961–1977: 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1958–1986 Pontiac Bonneville 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1959–1977 Pontiac Catalina 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1962–1987 Pontiac Grand Prix 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1964–1973 Pontiac GTO 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1961–1981 Pontiac LeMans 1961–1973: 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
1961–1970 Pontiac Tempest 215/85cc INT/EXH, 3.275"/1.415" valves - LS1, 65cc chamber, angle plug
