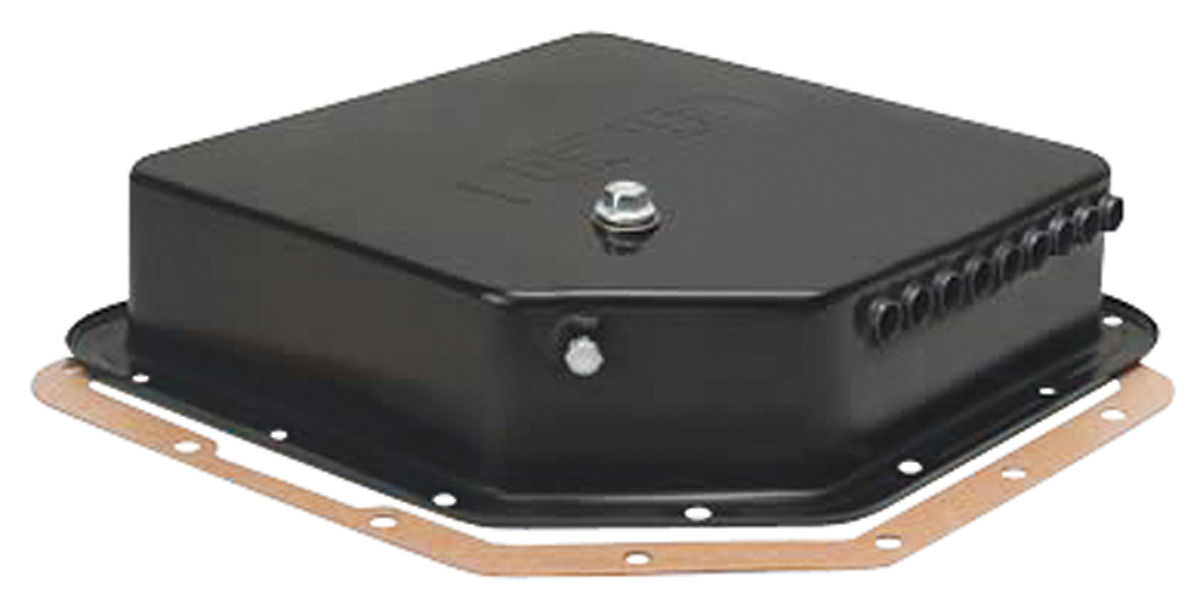

Transmission Cooling Pan (GM TH350, Steel, 2-Quart Extra Capacity) by Derale®
Airway cooling tubes, magnetic drain plug and temperature-sender port
This Derale® TH350 cooling pan uses brazed airway tubes through the lower section to transfer heat to air passing beneath the vehicle. The heavy-gauge stamped steel pan has a black two-stage finish and adds two quarts of fluid capacity.
The pan measures 13-1/2 by 13 by 3-3/8 inches; the drain plug adds 1/4 inch to the height. It uses the original-style filter without a filter extension. A neoprene gasket, magnetic drain plug and 1/8-inch NPT temperature-sender port with plug are included. Check ground and exhaust clearance before installation.
FEATURES
• GM TH350 transmission cooling pan
• Two quarts of added fluid capacity
• Heavy-gauge steel with black two-stage finish
• Brazed airway tubes through lower pan
• 13-1/2 x 13 x 3-3/8-inch pan; drain adds 1/4 inch
• Original-style filter; no extension required
• Neoprene gasket and magnetic drain plug included
• 1/8-inch NPT sender port and plug
Notes
- This item is not eligible for any further discounts or promotional pricing.
- This item is Oversize 2, and is excluded from free ground shipping.
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
